Bennett Marine AutoTrim Pro Quickstart Functionality Manual

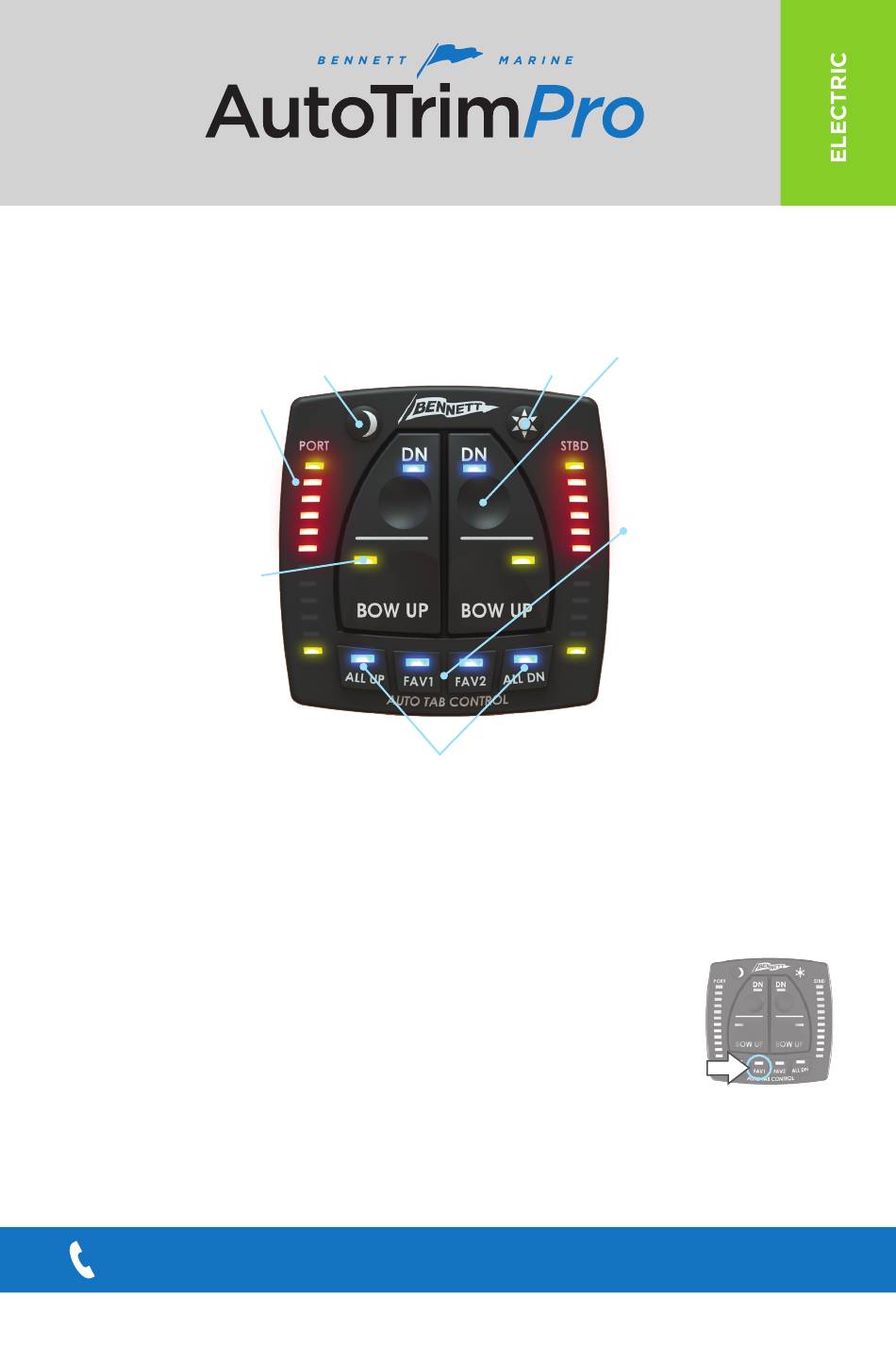

Quickstart Functionality Guide

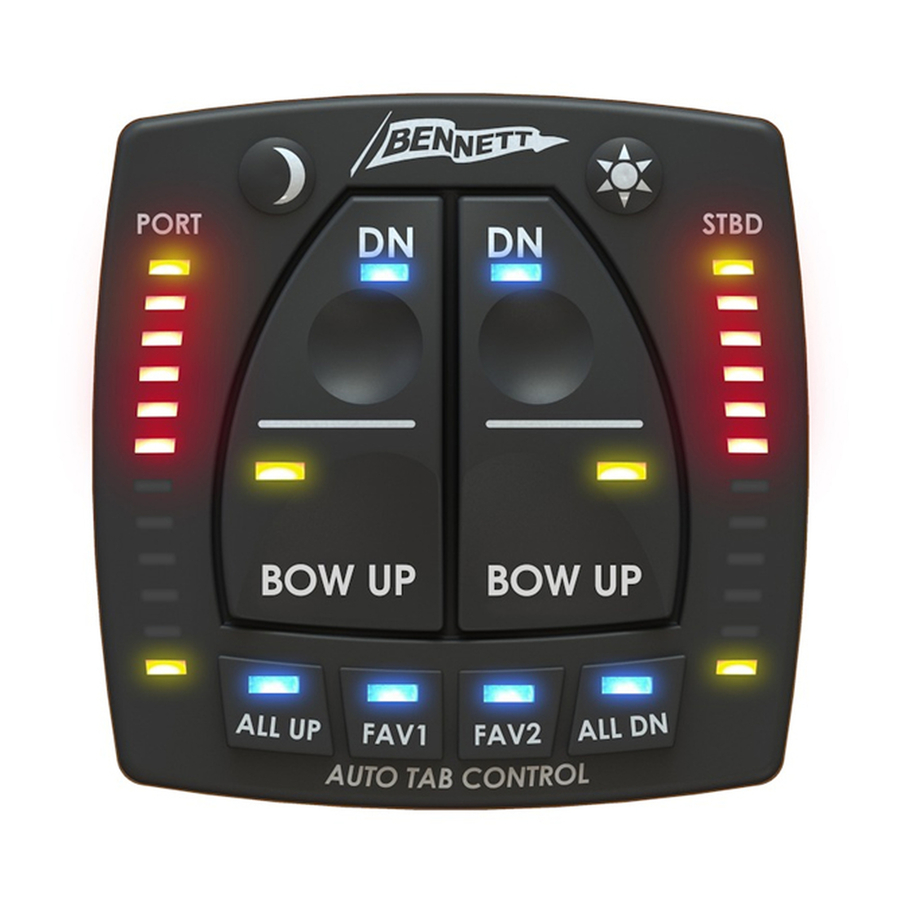

Control/Display Overview
Tab Position
Indication
Shows the current
position of the
trim tabs
in manual and
automatic mode.

Auto Trim

Activity Indication

LEDs alert you
to the automatic
movements of the
tabs in real time.
You can see exactly
what adjustments
AutoTrim Pro
is doing for you.
Tabs "All Up" or "All Down" (Semi-automatic)
Fully retract or deploy tabs with a single touch

Storing and Activating Favorite Settings

To use AutoTrim Pro in AUTO mode, you first need to set a
"Favorite" setting. Manually adjust the trim tabs, throttle, and engine
trim to attain your desired pitch and roll attitude. Next, press and hold
the FAV1 OR FAV2 button for 5 seconds (or more). Once released,
the blue LED will illuminate, and the system will immediately
go into AUTO mode. Pressing any other button on the control
will deactivate AUTO mode putting you back in manual control.
Reactivate the FAV setting any time with a quick button tap.
Favorite settings can be updated any time repeating these steps.
(954) 427-1400
Mon.-Fri. 8 AM - 5 PM (EST)
Adjust LEDs:
Dim (Moon) or Brighten (Sun)
in manual mode whenever needed.
Need help? We're here for you.
Trim Tab Controls
(Manual)
Override
automatic mode
with a touch to
take full manual
command of the
trim tabs.
Favorite Settings
(Automatic)
Store and
activate two
"Favorite" pitch
and roll settings
to automatically
achieve your
preferred cruising
attitude.
(Manual pg. 25)
Or FAV2
ATP81 5010694 r040720
