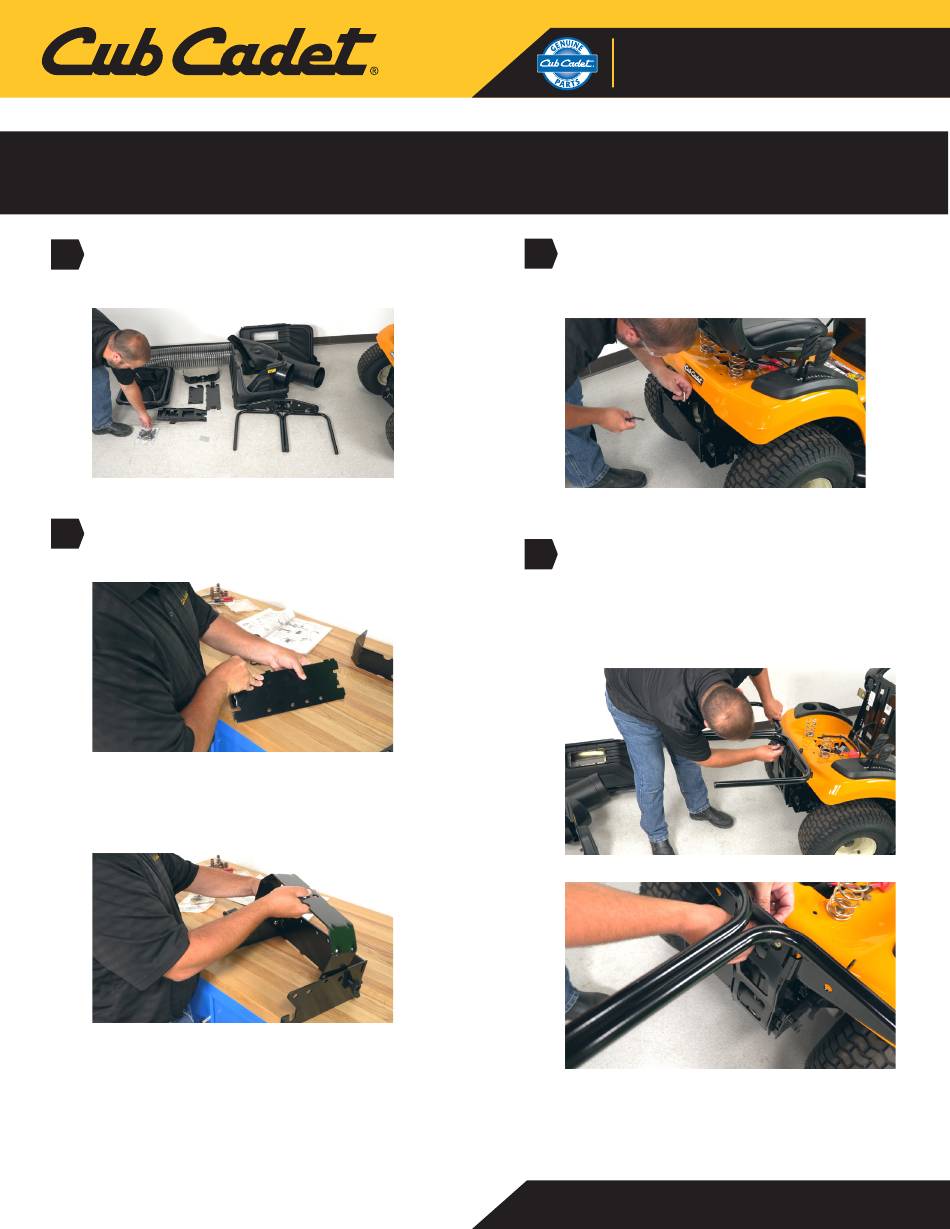

HOW TO ASSEMBLE THE DOUBLE BAGGER ON AN XT™ LAWN TRACTOR
START BY LAYING OUT THE PARTS.
1
ALWAYS READ YOUR OWNER'S
MANUAL.
ASSEMBLE MOUNTING BRACKETS
2
a. Attach the two side brackets to the rear attachment, use
two carriage bolts and the wing knobs to secure them
b. Flip over the assembly and mount the hitch support
bracket, use the holes furthest away from the rear
hooks and use two carriage bolts and the wing
knobs to secure them
XT™ SERIES BAGGER
ASSEMBLY GUIDE
MOUNT ASSEMBLY ON TRACTOR
3
a. Place hooked ends of the mounting assembly over
the shoulder bolts, use the clevis bolt and hairpin clip
to secure bracket to tractor
INSTALL HANGER ASSEMBLY
4
a. Use hanger position C, secure using the carriage bolt
and wing knob
b. Place hanger assembly onto the upright support
bracket, secure using two carriage bolts and two
1/2" lock nuts and washers
(CONTINUED ON NEXT PAGE)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cub Cadet XT Series
Summary of Contents for Cub Cadet XT Series
- Page 1 XT™ SERIES BAGGER ASSEMBLY GUIDE HOW TO ASSEMBLE THE DOUBLE BAGGER ON AN XT™ LAWN TRACTOR START BY LAYING OUT THE PARTS. MOUNT ASSEMBLY ON TRACTOR ALWAYS READ YOUR OWNER’S a. Place hooked ends of the mounting assembly over the shoulder bolts, use the clevis bolt and hairpin clip MANUAL.
- Page 2 XT™ SERIES BAGGER ASSEMBLY GUIDE ASSEMBLE REMAINING BAGGER INSTALLING THE CHUTE a. Snap the upper chute support into place a. Install the boot rod mount using the 7/16” nuts (2 wrenches are used) b. Slide the boot rod into the deck, secure the boot with a wing knob b.
