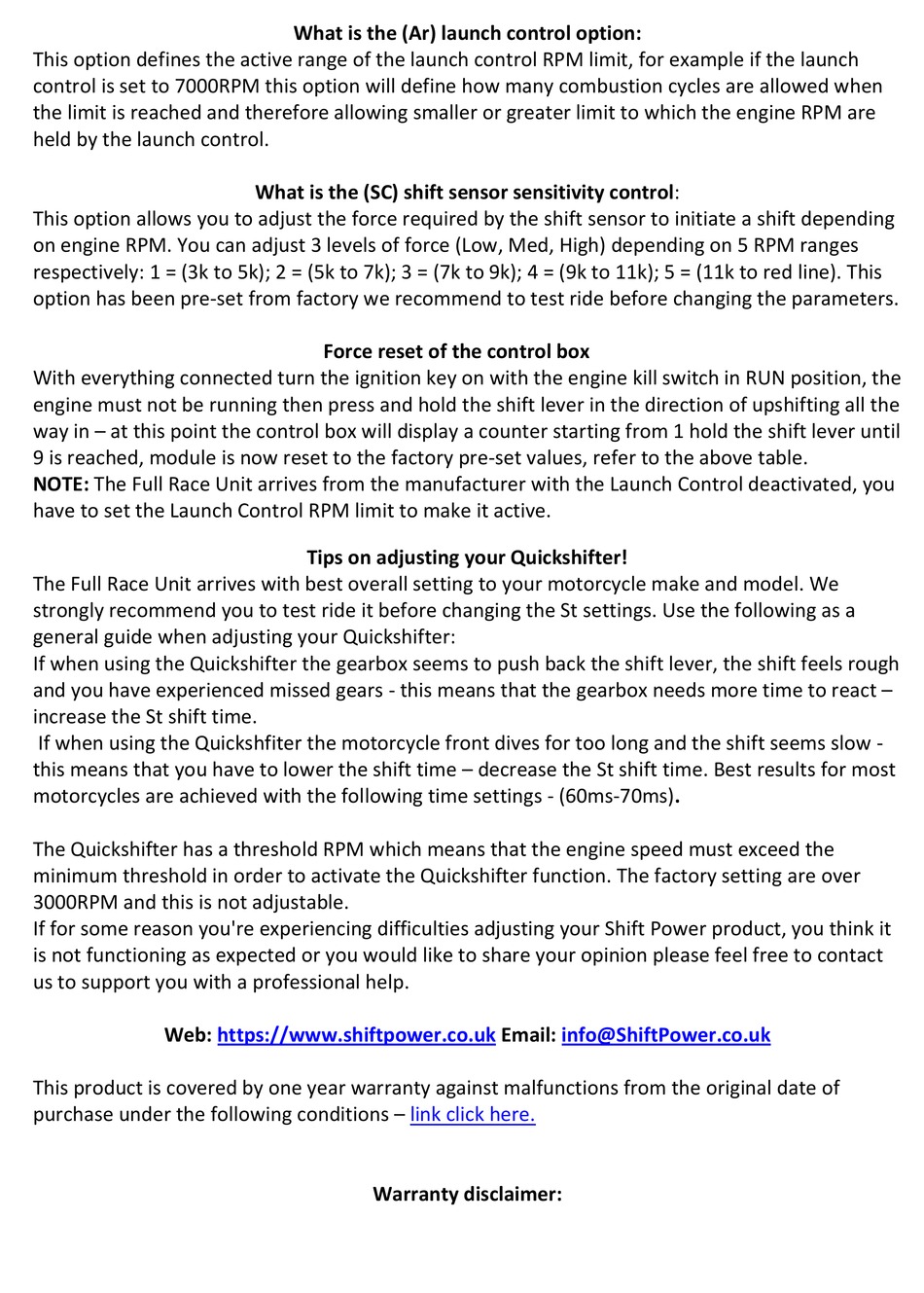

What is the (Ar) launch control option:
This option defines the active range of the launch control RPM limit, for example if the launch
control is set to 7000RPM this option will define how many combustion cycles are allowed when
the limit is reached and therefore allowing smaller or greater limit to which the engine RPM are
held by the launch control.
What is the (SC) shift sensor sensitivity control:
This option allows you to adjust the force required by the shift sensor to initiate a shift depending
on engine RPM. You can adjust 3 levels of force (Low, Med, High) depending on 5 RPM ranges
respectively: 1 = (3k to 5k); 2 = (5k to 7k); 3 = (7k to 9k); 4 = (9k to 11k); 5 = (11k to red line). This
option has been pre-set from factory we recommend to test ride before changing the parameters.
Force reset of the control box
With everything connected turn the ignition key on with the engine kill switch in RUN position, the
engine must not be running then press and hold the shift lever in the direction of upshifting all the
way in – at this point the control box will display a counter starting from 1 hold the shift lever until
9 is reached, module is now reset to the factory pre-set values, refer to the above table.
NOTE: The Full Race Unit arrives from the manufacturer with the Launch Control deactivated, you
have to set the Launch Control RPM limit to make it active.
Tips on adjusting your Quickshifter!
The Full Race Unit arrives with best overall setting to your motorcycle make and model. We
strongly recommend you to test ride it before changing the St settings. Use the following as a
general guide when adjusting your Quickshifter:
If when using the Quickshifter the gearbox seems to push back the shift lever, the shift feels rough
and you have experienced missed gears - this means that the gearbox needs more time to react –
increase the St shift time.
If when using the Quickshfiter the motorcycle front dives for too long and the shift seems slow -
this means that you have to lower the shift time – decrease the St shift time. Best results for most
motorcycles are achieved with the following time settings - (60ms-70ms).
The Quickshifter has a threshold RPM which means that the engine speed must exceed the
minimum threshold in order to activate the Quickshifter function. The factory setting are over
3000RPM and this is not adjustable.
If for some reason you're experiencing difficulties adjusting your Shift Power product, you think it
is not functioning as expected or you would like to share your opinion please feel free to contact
us to support you with a professional help.
Web:
https://www.shiftpower.co.uk
Email:
info@ShiftPower.co.uk
This product is covered by one year warranty against malfunctions from the original date of
purchase under the following conditions –
link click here.
Warranty disclaimer:
