Full Race Unit installation manual part № "C-T6"
Please read carefully before attempting any use of this product!
To install the SP-Full Race Unit you will have to:

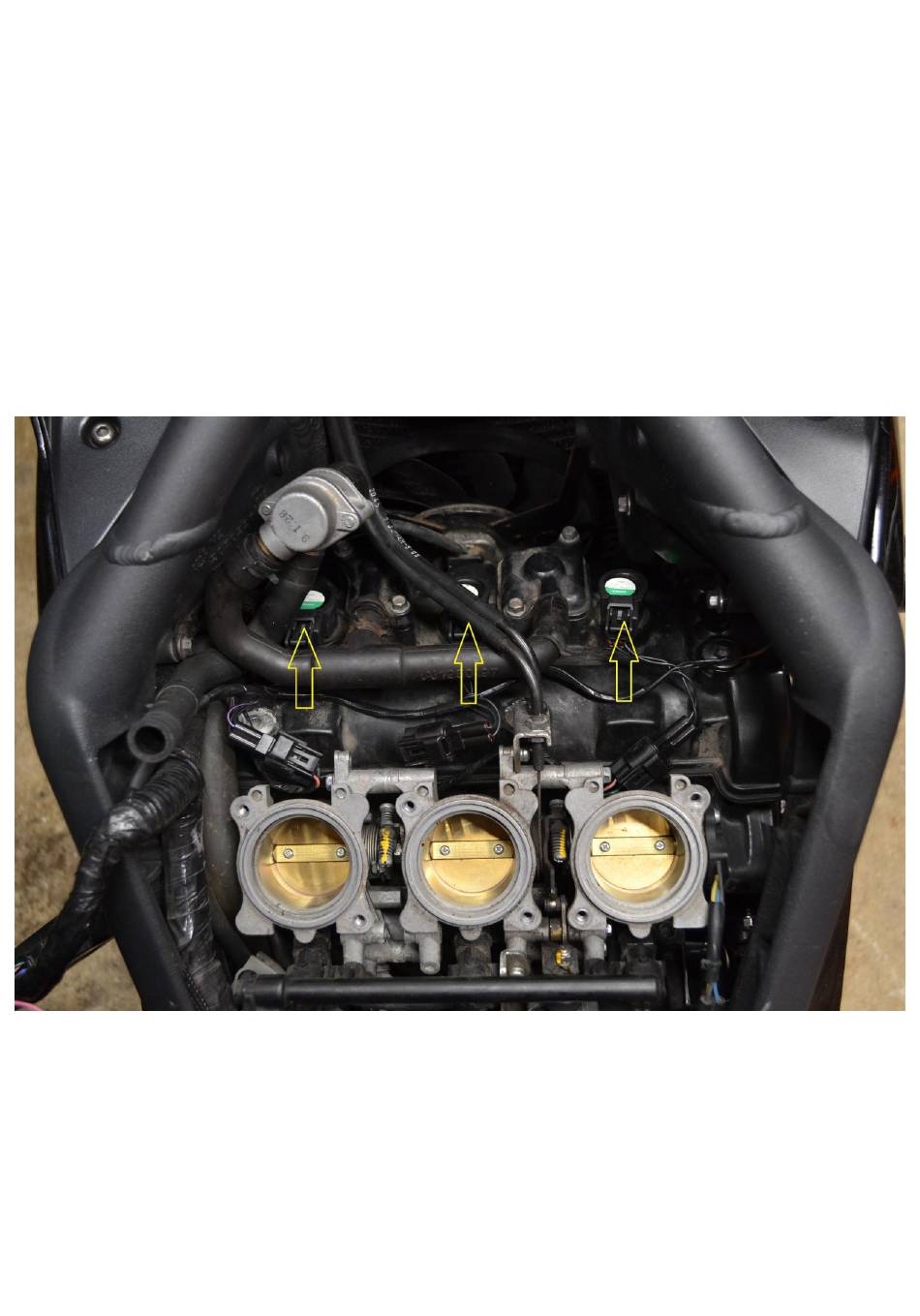

Gain access to the ignition coils (for best results refer to your motorcycle service manual). Plug in the
female connectors to the ignition coils and the male connectors to the bike's harness. You must connect
each male and female connector pair to the same corresponding cylinder no matter left to right or right
to left!
IMPORTANT NOTE: Make sure when plugging the connectors that you press them well enough to lock, as
this will provide sealed and reliable electrical connection. Find appropriate place for the Full Race Unit
control box and route the cables, they are high quality, automotive class, heat resistant cables but there is
some care you should take: Avoid moving parts as they might damage them, the best way is to follow
other cables from the bike's harnes, use the cable ties provided to fasten them. Make sure the place for
the Full Race Unit control box is away from heavy vibrations, heat and it is not constantly exposed to rain
and water.
