To install Race Unit MAGNUM you have to:
1.
Gain access to the ignition coils (for best results refer to your motorcycle service
manual). Plug in the control box female connectors to the ignition coils and the male
connectors to the bike's harness. You must connect each male and female connector pair to
the same corresponding cylinder no matter left to right or right to left!
IMPORTANT NOTE: Make sure when plugging the connectors that you press them well
enough to lock, this will provide sealed and reliable electrical connection, important for the
function of the system. Find appropriate place for the control box and route the cables, they
are high quality, automotive class cables however you must: Avoid moving parts as they
might damage them, the best way is to follow other cables from the bike's harnes, use cable
ties to fasten them. Make sure the place for the control box is away from heavy vibrations,
heat, and it is not constantly exposed to rain and water.
Installation manual Race Unit MAGNUM
Part № RM-Y6

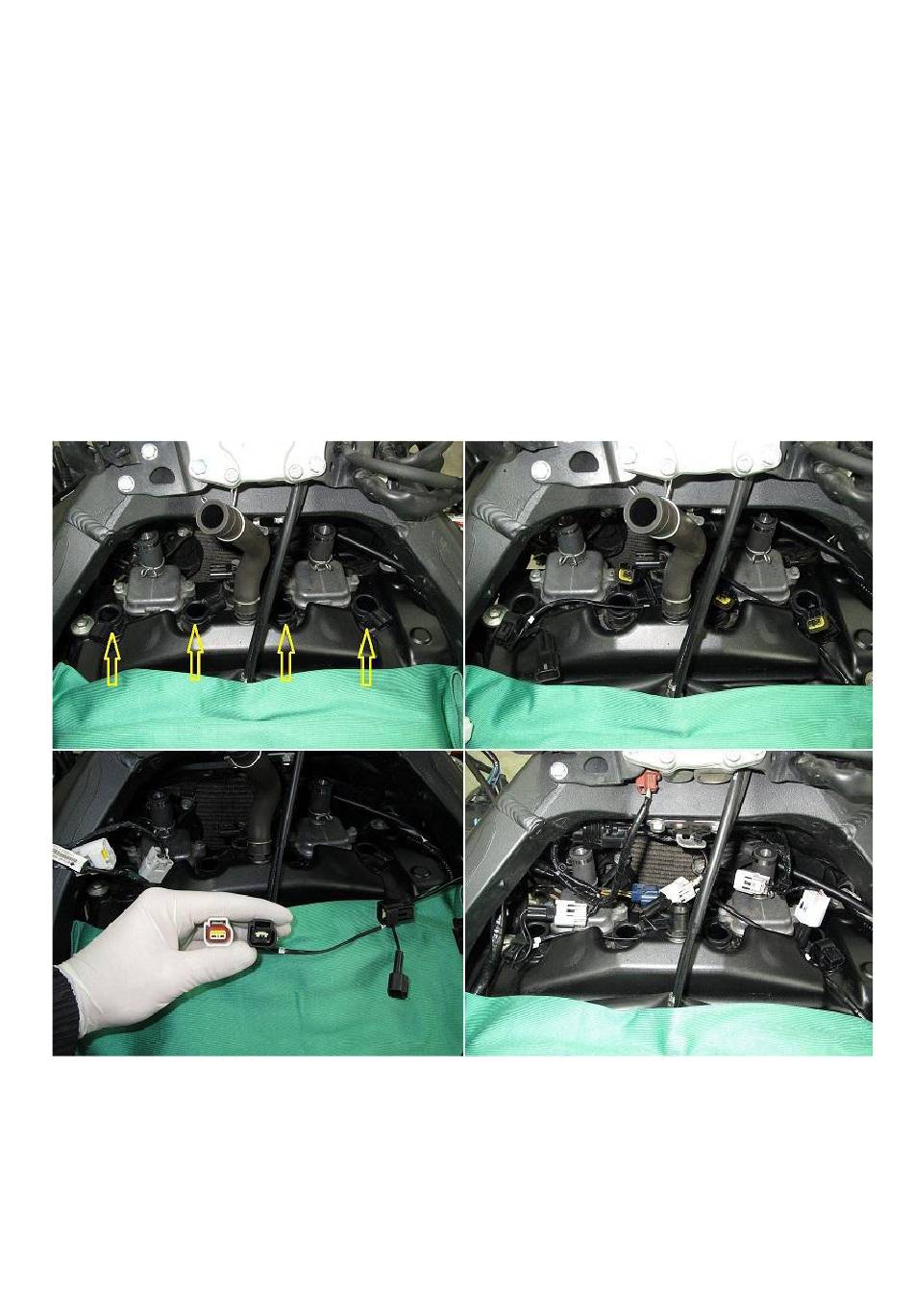

Stick type coils view
Advertisement
Related Manuals for Shift Power MAGNUM
Summary of Contents for Shift Power MAGNUM
- Page 1 Part № RM-Y6 Please read carefully before attempting any use of this product! To install Race Unit MAGNUM you have to: Gain access to the ignition coils (for best results refer to your motorcycle service manual). Plug in the control box female connectors to the ignition coils and the male connectors to the bike's harness.
- Page 2 NOTE: Race Unit Magnum must connect direcly to the ignition coils, if you use another product(s) for altering or modifying the ignition coil signals (that needs to be connected to the ignition coils as well) please contact us to confirm if they can work along each other!
- Page 3 NOTE: The gearbox pivot arm must extend to 90 degrees with the shift rod in order to receive equal force in both directions, if not set correctly the gearbox may not react accordingly and miss gears when using the quickshifter! After this is done, turn the ignition key ON, make sure the engine kill switch is in RUN position and the gearbox is in neutral, at this time the control box must power up and enter normal operation displaying SP flashing.
- Page 4 - 0/1/2/3 This parameter controls Deactivated 4 cylinder 8 cylinder 12 cylinder the quickshifter magnum volumes are volumes are volumes are level by allowing ignited in ignited in the ignited in the controlled cylinder...
- Page 5 NOTE: MAGNUM feature levels 2 and 3 are recommended for use on straight pipe exhaust systems only! The OEM exhaust will become very hot when arresting the flames.
- Page 6 Warranty disclaimer: Shift Power Ltd shall not under any circumstances, be liable for any special, incidental or consequential damaged including, person, party or property, but not limited to, damage loss of cost of purchased or replacement goods or service, claims of customers of the purchaser,...
- Page 7 Installation of these parts could adversely affect the engine manufacturer warranty coverage. Thank you for choosing the Race Unit MAGNUM system enjoy!
