Shift Power Full Race Unit Installation Manual

Reading time: 10min
Full Race Unit installation manual part № "C-YF6"
Please read carefully before attempting any use of this product!
To install the Full Race Unit you will have to:
1. Gain access to the fuel injectors (for best results refer to your motorcycle service
manual). Plug in the female connectors to the fuel injectors and the male connectors to the
bike's harness. You must connect each male and female connector pair to the same
corresponding cylinder no matter left to right or right to left!
IMPORTANT NOTE: Make sure when plugging the connectors that you press them well enough
to lock, as this will provide sealed and reliable electrical connection, vital for the function of
the Full Race Unit. Find appropriate place for the Full Race Unit control box and route the
cables, they are high quality, automotive class, heat resistant cables but there is some care you
should take: Avoid moving parts as they might damage them, the best way is to follow other
cables from the bike's harnes, use the cable ties provided to fasten them. Make sure the place
for the Full Race Unit control box is away from heavy vibrations, heat and it is not constantly
exposed to rain and water.
Connect the single Yellow wire with the provided Posi-Tap terminal to the tachometer signal.
This is very important because the entire system will relay on this signal and if not provided
properly it will not function at all. Please look at the following pictures:

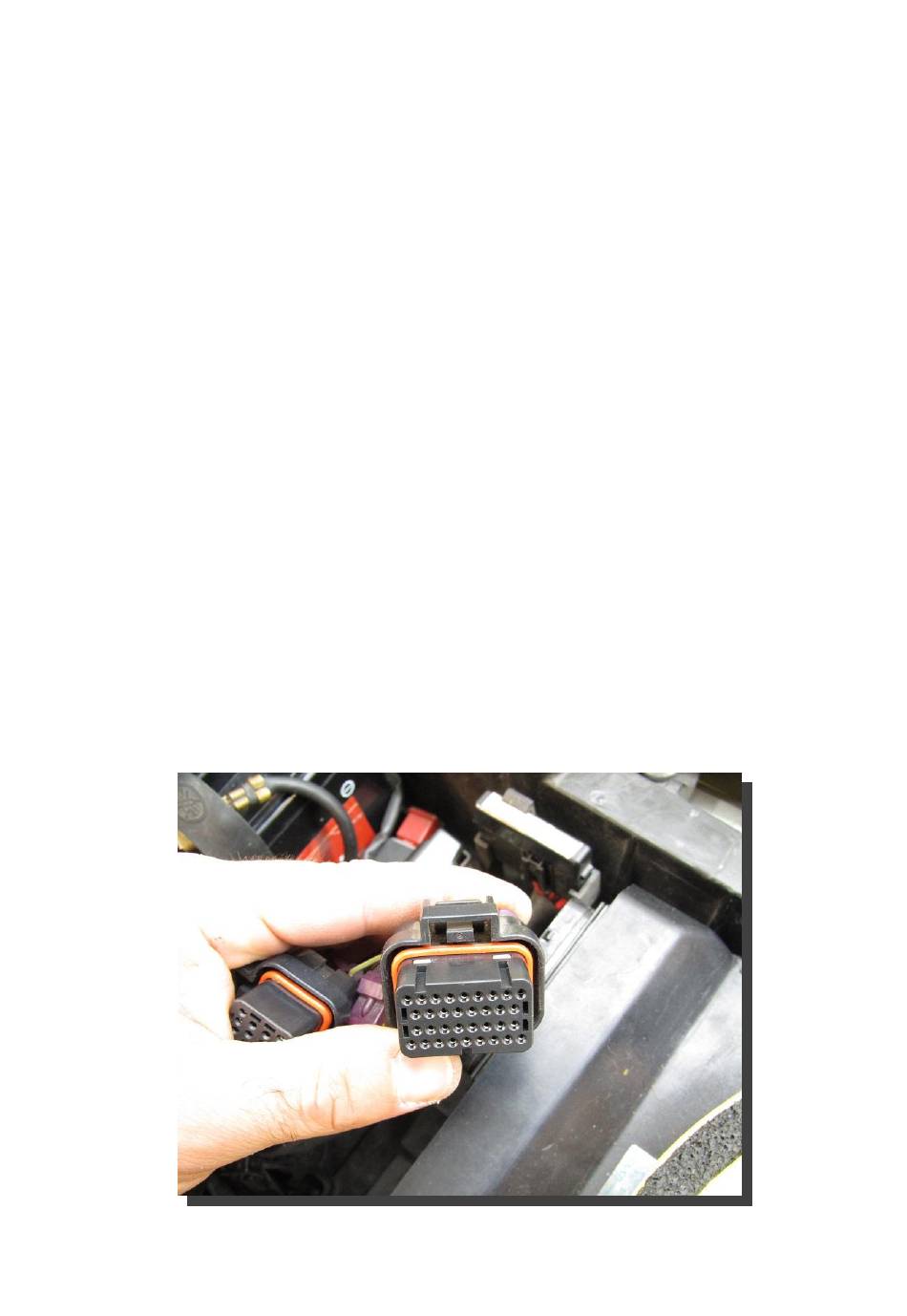

(Step_ 1) (Step_ 2) Locate the correct ECU connector!
