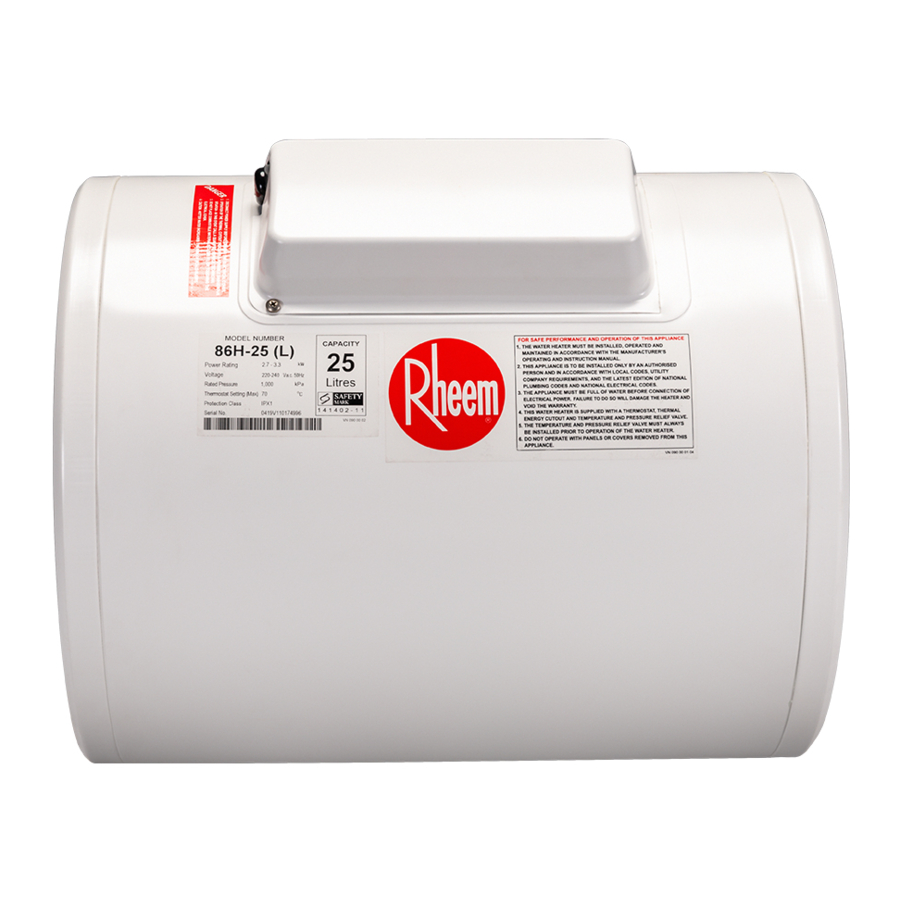

Rheem 86H-25 Installation, Operating Instructions And Warranty Conditions

Rheem Manufacturing Company (Singapore) Pte Ltd
ELECTRIC STORAGE WATER HEATERS
INSTALLATION, OPERATING INSTRUCTIONS AND WARRANTY CONDITIONS
WARNING
•
Please read this Installation and Warranty Manual carefully before installation and use of the appliance. In particular, please pay
special attention to the Safety Instruction and Warnings. These instructions must be read in conjunction with other instructions
affixed to the appliance.
•
This appliance must only to be installed by persons authorised for the installation of electric water heaters in accordance with all
Local and Government Regulations.
•
For Safe Performance, this Storage Water Hear is supplied with a Thermostat, Thermal Energy Cutout, and Temperature &
Pressure Relief Valve. These devices must be installed and not tampered with or removed. The water heater must not be
operated unless each of these devices is fitted and is in working order.
•
Please leave this manual with the homeowner upon completion of installation.
Model Number
Actual Capacity
Rated Power
Time for Hot Water at 40ºC Rise
Length
Diameter
Inlet & Outlet Spacing
Mount Hole Spacing
Voltage Input
Temperature Setting
Rated Pressure
T&P Relief Valve Pressure
Pipe Sizes for Water Inlet & Outlet
Pipe Size for Safety Valve
Shipping Weight
FEATURES
•
Mains pressure storage water heater ensures stable hot
water supply.
•
Various tank capacities available – allowing simultaneous
multi point hot water usage.
•
The adjustable thermostat automatically controls the
electricity supply to the heating unit so constant
temperature is maintained.
•
Safety devices such as over temperature cut out and
Temperature and Pressure Relief (TPR) valve are
standard features.
TECHNICAL DATA AND PRODUCT DIMENSIONS
RIGHT HAND CONNECTION SHOWN
Litres
kW
min.
A mm
B mm
C mm
D mm
V
ºC
kPa
kPa
kg
86H-25 86H-40
25 40
2.7-3.3 kW, 220-240 Va.c. 50Hz
23 37
460 664
377
150
320 340
220 - 240V a.c. / 50 Hz
Rp 20 (3/4" x 14)
Rp 20 (3/4" x 14)
17 22
Diagram 1
•
The temperature is preset at 65°C for safety and is
economical to operate.
comes complete with built in reset switch.
•
The life span of the tank is greatly extended by Rheem's
exclusive "Rheemglas" vitreous enamel lining and
sacrificial anode rod, ensuring years of trouble free
performance.
•
Thick Polyurethane foam is environmentally friendly, free
of CFC enabling the water heater to be more energy
efficient by retaining heat and reduce operating costs.
•
Heater jacket
prepainted steel – a thick gauge precoated zinc steel
having exceptional strength and corrosion resistance.
1
86H-55 86H-75 86H-100
55 75
51 70
868 1140
477 812
65
1000
1000
25 30
The temperature thermostat
is protected by industrial
100
93
973
461
240
643
36
strength
