ELECTRIC STORAGE WATER HEATERS
INSTALLATION, OPERATING INSTRUCTIONS AND WARRANTY CONDITIONS
WARNING

Please read this Installation and Warranty Manual carefully before installation and use of the appliance. In particular, please pay
special attention to the Safety Instruction and Warnings. These instructions must be read in conjunction with other instructions
affixed to the appliance.

This appliance must only to be installed by persons authorised for the installation of electric water heaters in accordance with all
Local and Government Regulations.

For Safe Performance, this Storage Water Heater is supplied with a Thermostat, Thermal Energy Cutout, and Temperature &
Pressure Relief Valve. These devices must be installed and not tampered with or removed. The water heater must not be
operated unless each of these devices is fitted and is in working order.

Please leave this manual with the homeowner upon completion of installation.
Model Number
Actual Capacity
Nominal Capacity
Rated Power
Approx.  Heat Up Time to 60°C
Height
Diameter
Spacer Bracket
Wall Mounting Bracket
Voltage Input
Temperature Setting
Rated Pressure
T&P Relief Valve Pressure
Thread Sizes for Water Inlet & Outlet
Thread Size for Safety Valve
Shipping Weight
FEATURES

Mains pressure storage water heater ensures stable hot
water supply.

Various tank capacities available – allowing simultaneous
multi point hot water usage.

The adjustable thermostat automatically controls the
electricity supply to the heating unit so constant
temperature is maintained.

Safety devices such as over temperature cut out and
Temperature and Pressure Relief (TPR) valve are
standard features.

The temperature is preset at 65°C for safety and is
economical to operate.
comes complete with built in reset switch.

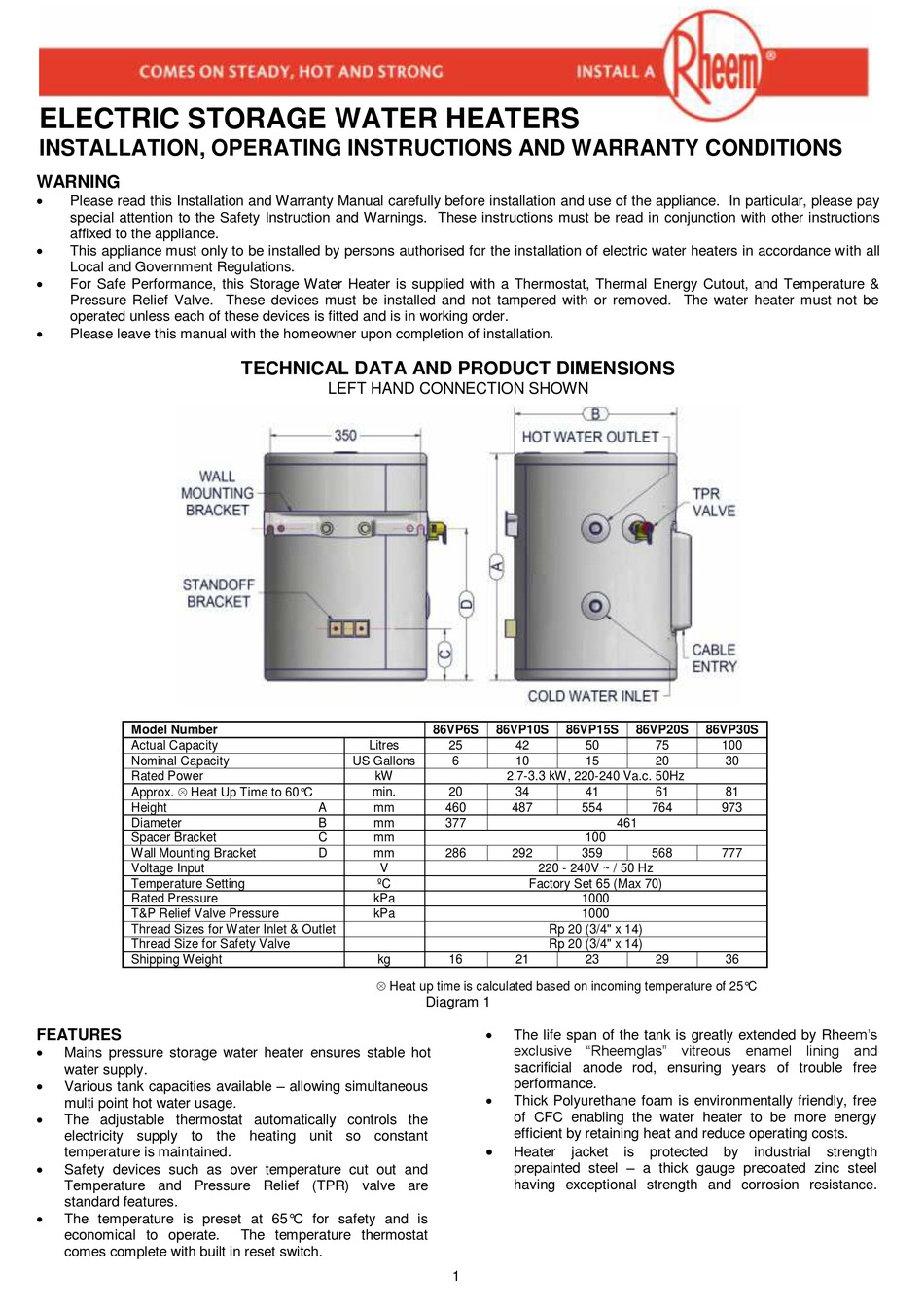

TECHNICAL DATA AND PRODUCT DIMENSIONS
LEFT HAND CONNECTION SHOWN
Litres
US Gallons
kW
min.
A mm
B mm
C mm
D mm
V
ºC
kPa
kPa
kg
 Heat up time is calculated based on incoming temperature of 25°C
The temperature thermostat
86VP6S 86VP10S 86VP15S
25 42 50
6 10 15
2.7-3.3 kW, 220-240 Va.c. 50Hz
20 34 41
460 487 554
377
100
286 292 359
220 - 240V ~ / 50 Hz
Factory Set 65 (Max 70)
1000
1000
Rp 20 (3/4" x 14)
Rp 20 (3/4" x 14)
16 21 23
Diagram 1

The life span of the tank is greatly extended by Rheem's
exclusive "Rheemglas" vitreous enamel lining and
sacrificial anode rod, ensuring years of trouble free
performance.

Thick Polyurethane foam is environmentally friendly, free
of CFC enabling the water heater to be more energy
efficient by retaining heat and reduce operating costs.

Heater jacket
prepainted steel – a thick gauge precoated zinc steel
having exceptional strength and corrosion resistance.
1
86VP20S 86VP30S
75 100
20 30
61 81
764 973
461
568 777
29 36
is protected by industrial strength
