INTEGRATED
ENTRY DOOR SENSORS
INTEGRATED ENTRY DOOR SENSORS communicate the opened or closed and
locked or unlocked status of your Entry Door by Pella to BRIDGE.
WHAT'S NEEDED:
• PELLA
INSYNCTIVE
®
products to STATUS INDICATOR or a compatible home automation system.
• PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of Pella
Insynctive SENSORS. Or you can use a compatible home automation system to help monitor
your windows and doors.
• SMALL FLATHEAD SCREWDRIVER
For a list of compatible home automation systems, visit Insynctive.Pella.com.
*
PELLA
INSYNCTIVE
®

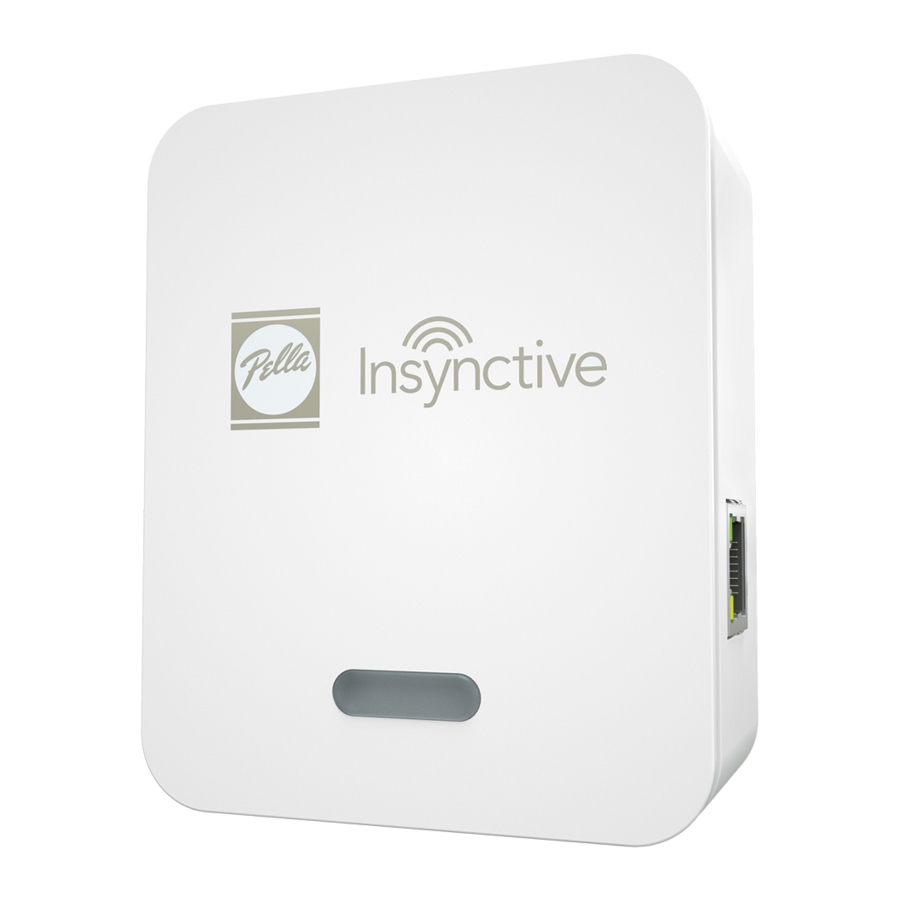

BRIDGE (required — sold separately): Wirelessly connects your Insynctive
®
*
PE LL A
I NSYNCT I VE
®
PRODUCT GUIDE
®
*
I NT EGR ATED ENTRY DO OR SENS OR PR OD UCT G UIDE
®
|
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSYNCTIVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pella INSYNCTIVE

Summary of Contents for Pella INSYNCTIVE

  • Page 1 STATUS INDICATOR or a compatible home automation system. • PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of Pella Insynctive SENSORS. Or you can use a compatible home automation system to help monitor your windows and doors.

  • Page 2: Table Of Contents

    Have a Home Automation System? Warnings Product Overview Specifications Detailed Instructions Integrated Sensor Setup for Entry Door from Pella with Deadbolt Lock Integrated Sensor Setup for Entry Door from Pella with Multipoint Lock Additional Instructions Product Manufacturer’s Code Care and Maintenance...

  • Page 3: General And Safety Information

    For instant access to warranties, troubleshooting information and videos, visit Insynctive.Pella.com/Support or call 855-473-5524. HAVE A HOME AUTOMATION SYSTEM? To view a list of compatible systems and find instructions on how to sync Pella Insynctive products, visit Insynctive.Pella.com. WARNING Failure to adhere to the warnings below may result in death, serious injury and/or loss of valuables.

  • Page 4: Product Overview

    Sensors are integrated into Entry Doors by Pella ordered with Insynctive technology, making them virtually unnoticeable. For a list of compatible home autommation systems, visit Insynctive.Pella.com.

  • Page 5: De Tailed Ins Truc Tions

    DE TAILED INS TRUC TIONS INTEGRATED SENSOR SETUP for Entry Door by Pella with Deadbolt Lock See Insynctive.Pella.com/Support for how-to videos. 1. Get Started BRIDGE TEST BUTTON Plug BRIDGE into an electrical outlet (light will turn green and then flash blue).
  • Page 6 DE TAIL E D IN ST R U CTI ON S (c o n ti n u ed ) To sync OPEN/CLOSE SENSOR to BRIDGE, open then close your entry door twice within 5 seconds. Wait for the light on BRIDGE to flash green and beep for 2 seconds.
  • Page 7 BRIDGE supports two types of home automation systems, Professionally Installed and Do-It-Yourself (DIY) Z-Wave. For a list of compatible home automation systems or syncing instructions, visit Insynctive.Pella.com. PE LL A I NSYNCT I VE I NT EGR ATED ENTRY DO OR SENS OR PR OD UCT G UIDE ®...
  • Page 8 DE TAIL E D IN ST R U CTI ON S (c o n ti n u ed ) 6. Test INTEGRATED ENTRY DOOR SENSORS Each INTEGRATED ENTRY DOOR SENSOR should be tested to ensure proper function after it is synced. To test LOCK SENSOR, use the following procedure: BRIDGE Unlock your entry door and verify that LOCK SENSOR reports the...

  • Page 9: Integrated Sensor Setup For Entry Door

    DE TAIL E D IN ST R U CTI ON S (c o n ti n u ed ) INTEGRATED SENSOR SETUP for Entry Door by Pella with Multipoint Lock See Insynctive.Pella.com/Support for how-to videos. BRIDGE 1. Get Started TEST...
  • Page 10 DE TAIL E D IN ST R U CTI ON S (c o n ti n u ed ) 4. Prepare LOCK SENSOR This lock transmitter is used in multiple INTEGRATED SENSORS units. The lock transmitter must learn what type of entry door it will BRIDGE be housed in.
  • Page 11 DE TAIL E D IN ST R U CTI ON S (c o n ti n u ed ) WITHOUT HOME AUTOMATION (Stand-Alone Mode) Press and hold BRIDGE Sync button until light begins flashing orange. The Sync button is the bottom button located on the side of BRIDGE.
  • Page 12 (c o n ti n u ed ) WITH HOME AUTOMATION BRIDGE supports two types of home automation systems, Professionally Installed and Do-It-Yourself (DIY) Z-Wave. For a list of compatible home automation systems or syncing instructions, visit Insynctive.Pella.com. BRIDGE TEST BUTTON 6. Test INTEGRATED ENTRY DOOR SENSORS...

  • Page 13: Additional Instructions

    NOTE: Electrostatic-sensitive. Avoid touching the antenna or circuit board when accessing the Manufacturer’s Code. PRODUCT CODE CARE AND MAINTENANCE • Test Insynctive products at least once per year to help ensure proper operation. OPEN/CLOSE SENSOR • Do not paint over SENSORS.
  • Page 14 A DDI TI ON A L IN STR U CT ION S (c o nti nue d) To replace the battery on LOCK SENSOR for Entry Door by Pella with Deadbolt Lock: • Use a flathead screwdriver to carefully remove the battery cover from LOCK SENSOR.
  • Page 15 A DDI TI ON A L IN STR U CT ION S (c o nti nue d) DELETING INTEGRATED SENSOR for Entry Door by Pella with Deadbolt Lock Deleting INTEGRATED ENTRY DOOR SENSORS may be needed if you no longer have a use for INTEGRATED ENTRY DOOR BRIDGE SENSORS.
  • Page 16 WITH HOME AUTOMATION BRIDGE supports two types of home automation systems, Professionally Installed and Do-It-Yourself (DIY) Z-Wave. Visit Insynctive.Pella.com for a list of compatible home automation systems and deletion instructions. P EL LA I NSYN CTI V E IN TEGR ATED EN TRY DO O R SEN SOR PR OD UCT G UIDE ®...
  • Page 17 AD D ITI ON A L IN STR U CTIO N S (c o nti nued) DELETING INTEGRATED SENSOR for Entry Door by Pella with Multipoint Lock Deleting INTEGRATED ENTRY DOOR SENSORS may be needed if you no longer have a use for INTEGRATED ENTRY DOOR...
  • Page 18 BRIDGE supports two types of home automation system Professionally Installed and Do-it-Yourself (DIY) Z-Wave. For a list of compatible home automation systems and deletion instructions, visit Insynctive.Pella.com. P EL LA I NSYN CTI V E IN TEGR ATED EN TRY DO O R SEN SOR PR OD UCT G UIDE ®...

  • Page 19: Troubleshooting

    TROUBLESHOOTING Also refer to Insynctive.Pella.com/Support for more troubleshooting information, including videos, frequently asked questions and reference materials. PROBLEM CAUSE AND POSSIBLE SOLUTION Cannot sync LOCK SENSOR Verify LOCK SENSOR battery is installed correctly and plastic battery to BRIDGE. tab has been removed. See page 5 for additional information.

  • Page 20: Fcc Compliance And Industry Canada

    • Connect the equipment to an outlet on a different circuit from the receiver. • Consult the dealer or an experienced radio/TV contractor for help. Changes or modifications not expressly approved by Pella Corporation could void the user’s authority to operate the equipment.

  • Page 21: Limited Warranty

    ® ® Pella Insynctive products Privacy Policy in effect at the time of sale, which can be found at Insynctive.Pella.com. By installing or using your Insynctive products, you are acknowledging that the Insynctive Software License Agreement and Privacy Policy are part of the terms of sale.
