Pella insynctive Product Manual

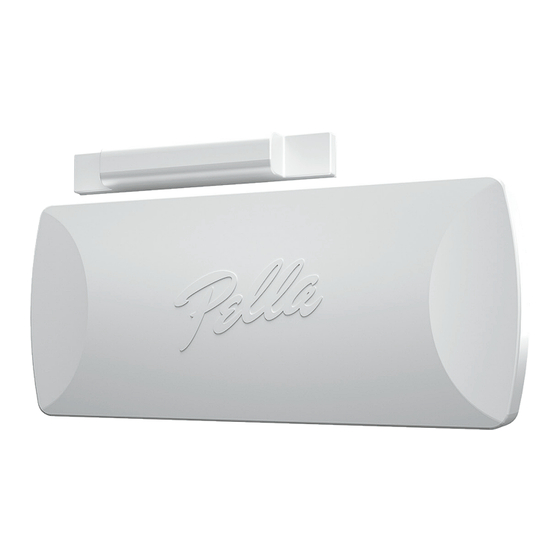

Window and door sensor
Hide thumbs Also See for insynctive:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual
WINDOW AND
DOOR SENSOR
WINDOW AND DOOR SENSOR will transmit a signal to
BRIDGE if the window/door is opened or closed.
WHAT'S NEEDED:
• PELLA INSYNCTIVE BRIDGE (required — sold separately): Wirelessly connects your Insynctive
products to STATUS INDICATOR or a compatible security or home automation system.
• PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of
Pella Insynctive SENSORS. Or you can use a compatible security or home automation system
to help monitor your windows and doors.
PELLA
INSYNCTIVE
®
PELLA
®
I NSYNCTIVE
PRODUCT GUIDE
™
™
WI N DO W AN D DO O R SE N SO R PR O D UCT GU ID E
1
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the insynctive and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pella insynctive

Summary of Contents for Pella insynctive

  • Page 1 STATUS INDICATOR or a compatible security or home automation system. • PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of Pella Insynctive SENSORS. Or you can use a compatible security or home automation system to help monitor your windows and doors.

  • Page 2: Table Of Contents

    Product Manufacturer’s Code Care and Maintenance Replacing Batteries Troubleshooting FCC Compliance and Industry Canada/Limited Warranty PELLA ® I NSYNCTIVE ™ WI N DO W AN D DO O R SE N SO R PR O D UCT GU ID E...

  • Page 3: Warnings

    Failure to adhere to the warnings below may result in death, serious injury and/or loss of valuables. • Pella Insynctive WINDOW AND DOOR SENSORS are not 100% reliable for a variety of reasons. For example, SENSORS: — communicate data wirelessly, and wireless data is susceptible to interference or failure.

  • Page 4: Product Overview

    MAGNET TRANSMITTER SENSOR SPECIFICATIONS Frequency: 433.92MHz (Insynctive) Operating Temperature: 32° – 120°F (0° – 49°C) Operating Humidity: 5% – 95% RH noncondensing Battery: 3V lithium CR2032 Typical Battery Life: 5 years (may vary by use) Magnet Gap: 1/2"...

  • Page 5: Detailed Instructions

    SYNC LIGHT BUTTON NOTE: To set up BRIDGE, follow Bridge Quick Start Guide or Bridge Product Guide, or visit Insynctive.Pella.com/Bridge for RAISED LINES more information. 2. Prepare WINDOW AND DOOR SENSOR WINDOW AND DOOR SENSOR consists of two components: the transmitter (large) and the magnet (small).
  • Page 6 NOTE: The cover will only fit in one orientation. 3. Sync WINDOW AND DOOR SENSOR to BRIDGE Each WINDOW AND DOOR SENSOR will need to be synced to Insynctive BRIDGE. To sync WINDOW AND DOOR ™ SENSOR with home automation, follow instructions on page 7.
  • Page 7 BRIDGE will flash green and beep once for 2 seconds. Repeat the above steps until all your WINDOW AND DOOR SENSORS have been synced to BRIDGE. NOTE: Pella Corporation provides no warranty and is not responsible for the function, reliability, or any damage caused by non-Pella products.
  • Page 8 MAGNET tape to transmitter and then to desired location on your window 1/2" or door. Apply firm pressure for several seconds. Visit Insynctive.Pella.com/SensorMountLocation for recommended TRANSMITTER locations for each product. THREE RAISED DO NOT mount the tape at temperatures below 50°F. The bond LINES will hold at low temperatures 24 hours after installation.

  • Page 9: Additional Instructions

    CARE AND MAINTENANCE MANUFACTURER’S • Test Insynctive products at least once per year to help CODE ensure proper operation. • Use indoors and keep away from sources of water and moisture.
  • Page 10 NOTE: SENSOR cover must be properly installed during deletion process. If successfully deleted, the light on BRIDGE will flash red and beep three times. PELLA ® I NSYNCTI VE ™ W IN DO W AN D D OO R SE N SO R PR O DU CT G UID E...
  • Page 11 WINDOW AND DOOR SENSORS from your system. Once SENSOR is successfully excluded, the light on BRIDGE will flash red and beep three times. PELLA ® I NSYNCTI VE ™ W IN DO W AN D D OO R SE N SO R PR O DU CT G UID E...
  • Page 12 TRO UB LE S HO OT IN G Also refer to Insynctive.Pella.com/Support for more troubleshooting information, including videos, frequently asked questions and reference materials. PROBLEM CAUSE AND POSSIBLE SOLUTION Cannot sync WINDOW AND Verify SENSOR battery is installed correctly and plastic DOOR SENSOR to BRIDGE.

  • Page 13: 1 Fcc Compliance And Industry Canada/Limited Warranty

    • Connect the equipment to an outlet on a different circuit from the receiver. • Consult the dealer or an experienced radio/TV contractor for help. Changes or modifications not expressly approved by Pella Corporation could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s).
