ENTRY DOOR
DEADBOLT SENSOR
ENTRY DOOR DEADBOLT SENSOR communicates the status
(locked or unlocked and opened or closed) of an Entry Door
WHAT'S NEEDED:

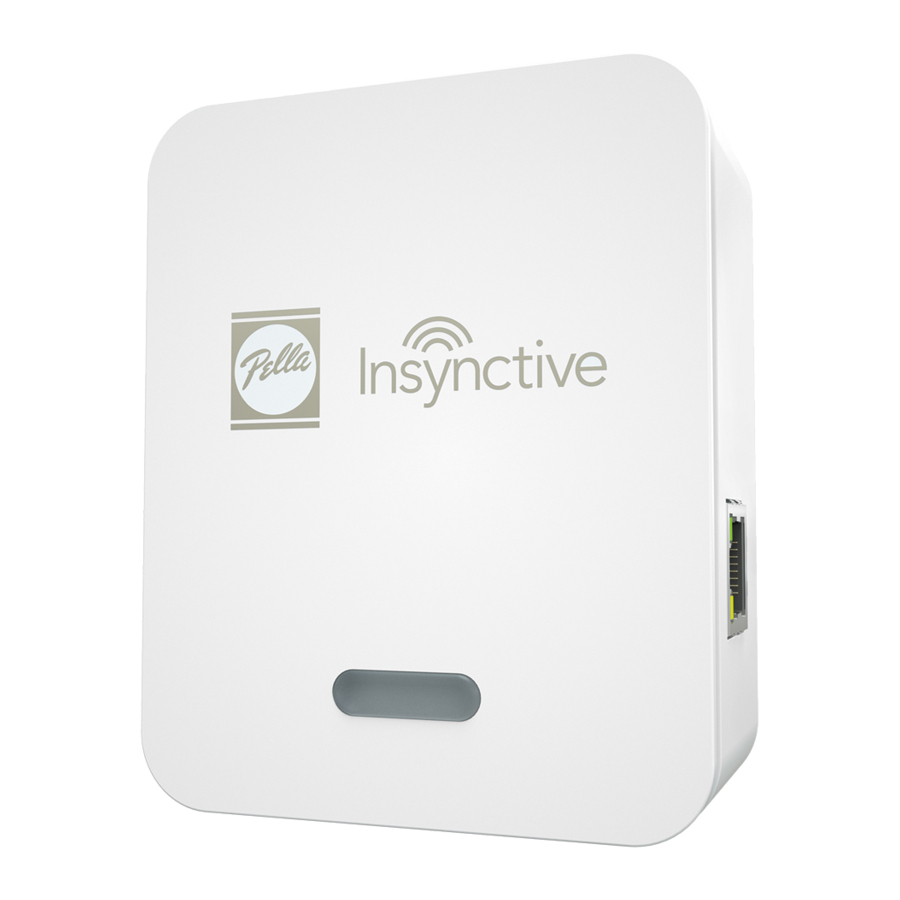

• PELLA INSYNCTIVE BRIDGE (required — sold separately): Wirelessly connects your Insynctive
products to STATUS INDICATOR or a compatible security or home automation system.
• PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of Pella
Insynctive SENSORS. You can also use a compatible security or home automation system to
monitor your entry door.
• ARCHITECT SERIES
ENTRY DOOR DEADBOLT SENSOR
• FLATHEAD SCREWDRIVER
• PHILLIPS-HEAD SCREWDRIVER
• DRILL AND 1/8" DRILL BIT
PELLA
INSYNCTIVE
®
from Pella to Pella Insynctive BRIDGE.
OR PELLA FIBERGLASS OR STEEL ENTRY DOOR PREPPED FOR
®
PELLA
®
I NSYNCTIV E
PRODUCT GUIDE
™
™
E N TRY DOO R D E ADBO LT SE N SO R PR O D UCT GU ID E
1
|
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pella Insynctive
Summary of Contents for Pella Insynctive
- Page 1 STATUS INDICATOR or a compatible security or home automation system. • PELLA INSYNCTIVE STATUS INDICATOR (optional — sold separately): Indicates status of Pella Insynctive SENSORS. You can also use a compatible security or home automation system to monitor your entry door.
-
Page 2: Table Of Contents
Product Manufacturer’s Code Care and Maintenance Replacing Batteries Troubleshooting FCC Compliance and Industry Canada/Limited Warranty PELLA ® I NSYNCTIV E ™ E N TRY DOO R D E ADBO LT SE N SO R PR O D UCT GU ID E... -
Page 3: General And Safety Information
Failure to adhere to the warnings below may result in death, serious injury and/or loss of valuables. • Pella Insynctive ENTRY DOOR DEADBOLT SENSORS are not 100% reliable for a variety of reasons. For example, SENSORS: — communicate data wirelessly, and wireless data is susceptible to interference or failure. -
Page 4: Product Overview
SENSOR or unlocked and opened or closed status of Entry Doors from DOOR JAMB Pella to BRIDGE. Two complementary devices are integrated into the jamb and door panel of Entry Doors from Pella DEADBOLT prepped for Insynctive DEADBOLT SENSORS, making ™... -
Page 5: Detailed Instructions
Battery covers must be installed to sync SENSORS. 3. Sync LOCK SENSOR and OPEN/CLOSE SENSOR to BRIDGE Each SENSOR will need to be synced to your Insynctive system. ™ BRIDGE To sync ENTRY DOOR DEADBOLT SENSORS with home automation, follow instructions on page 6. - Page 6 1". Repeat this step twice in 2 seconds. If successfully synced, the light on the BRIDGE will begin flashing blue. If either SENSOR sync is unsuccessful, remove and reinstall SENSOR battery to restart the 2-minute sync mode for SENSOR and try again. PELLA ® I NSYNCTIV E ™...
- Page 7 BRIDGE will flash green and beep once for 2 seconds. Repeat the above steps until all your SENSORS have been synced to BRIDGE. NOTE: Pella Corporation provides no warranty and is not responsible for the function, reliability, or any damage caused by non-Pella products.
- Page 8 DETA I L E D I N STR U CTIO NS (c o nt i nu e d ) 5. Installing LOCK SENSOR Your entry door from Pella has been prepared for Insynctive ™ ENTRY DOOR DEADBOLT SENSORS. The installation...
- Page 9 USE CARE — overdriving the screws could damage LOCK SENSOR. LOCK SENSOR STRIKE PLATE PELLA ® I NSYNCTIV E ™ E N TRY DOO R D E ADBO LT SE N SO R PR O D UCT GU ID E...
- Page 10 USE CARE — overdriving the screws could damage the LOCK SENSOR. LOCK SENSOR STRIKE PLATE PELLA ® I NSYNCTI VE ™ E N TRY DO OR D E ADBO LT SE N SO R PR O D UCT GU ID E...
- Page 11 2 minutes to delete your LOCK SENSOR from BRIDGE. 2. Delete LOCK SENSOR from BRIDGE. To delete LOCK SENSOR from Z-wave Home Automation, follow instructions on page 12. PELLA ® I NSYNCTI VE ™ E N TRY DO OR D E ADBO LT SE N SO R PR O D UCT GU ID E...
- Page 12 LOCK SENSOR from your system. Once SENSOR is successfully excluded, the light on BRIDGE will flash red and beep three times. PELLA ® I NSYNCTI VE ™ E N TRY DO OR D E ADBO LT SE N SO R PR O D UCT GU ID E...
- Page 13 BRIDGE will flash red and beep 3 times. If OPEN/CLOSE SENSOR deletion is unsuccessful, remove and reinstall SENSOR battery to restart the 2-minute sync mode for SENSOR and try again. PELLA ® I NSYNCTI VE ™ E N TRY DO OR D E ADBO LT SE N SO R PR O D UCT GU ID E...
- Page 14 OPEN/CLOSE SENSORS from your system. Once SENSOR is successfully excluded, the light on BRIDGE will flash red and beep three times. PELLA ® I NSYNCTI VE ™ E N TRY DO OR D E ADBO LT SE N SO R PR O D UCT GU ID E...
-
Page 15: Additional Instructions
CARE AND MAINTENANCE ANTENNA TRACED ON CIRCUIT BOARD (HIGHLIGHTED IN RED) • Test Insynctive products at least once per year to help ensure proper operation. • Verify that LOCK SENSOR plunger is operating smoothly and does not bind. • Do not paint over SENSORS. - Page 16 ON CIRCUIT BOARD perchlorate material. See www.dtsc.ca.gov/hazardouswaste/ (HIGHLIGHTED IN RED) perchlorate for any special handling regulations. PELLA ® I NSYNCTI VE ™ E N TRY DO OR D E ADBO LT SE N SO R PR O D UCT GU ID E...
-
Page 17: Troubleshooting
TRO UB LES H O OTIN G Also refer to Insynctive.Pella.com/Support for more troubleshooting information, including videos, frequently asked questions and reference materials. PROBLEM CAUSE AND POSSIBLE SOLUTION BRIDGE does not beep when LOCK Verify that BRIDGE chime feature is turned on. See BRIDGE SENSOR is unlocked. - Page 18 • Connect the equipment to an outlet on a different circuit from the receiver. • Consult the dealer or an experienced radio/TV contractor for help. Changes or modifications not expressly approved by Pella Corporation could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s).
