WINDOW AND
DOOR SENSOR
QUICK START GUIDE
This Quick Start Guide is intended only to provide an
overview of the product and its use. Before using
this product, read the complete Product Guide
and warnings.
Scan the QR Code® or visit Insynctive.Pella.com/
WindowandDoorSensor for complete Product Guide
and warnings, instructional videos and other Pella®
Insynctive ™ quick tips.
WHAT'S INCLUDED:
• WINDOW AND DOOR SENSOR: SENSOR will transmit a signal
to BRIDGE when your window or door is opened or closed.
• QUICK START GUIDE
• MOUNTING TAPE
• BATTERY
• WHITE MAGNET
• BROWN COVER
• BROWN MAGNET
WHAT'S REQUIRED:
• BRIDGE (required — sold separately): Wirelessly connects your
Insynctive products to STATUS INDICATOR or a compatible
security or home automation system.
• STATUS INDICATOR (optional — sold separately): Lights indicate
status of Pella Insynctive SENSORS. Or you can use a compatible
security or home automation system to monitor your windows
and doors.

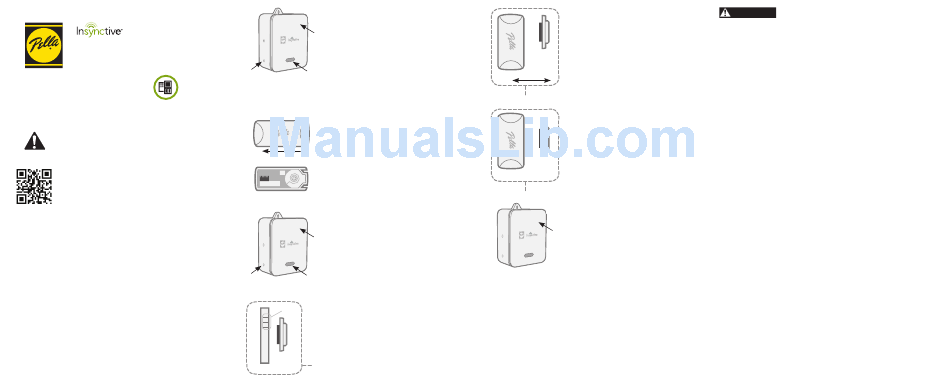

1. Get Started

• Plug BRIDGE into an electrical outlet
BRIDGE
(light will turn green and then fl ash blue).
NOTE: Follow Bridge Quick Start Guide to set
up BRIDGE.
SYNC
LIGHT
BUTTON

2. Prepare SENSOR

• Slide cover off TRANSMITTER to separate
the cover from the base.
• Pull and remove plastic battery tab.
SLIDE COVER
• Replace with brown or white cover.
NOTE: Once the plastic tab is removed from the
battery, you will have 2 minutes to sync your SENSOR
to BRIDGE (Step 3). If 2 minutes pass without a
successful sync, remove and insert the battery again.
INSIDE SHOWN

3. Sync SENSOR to BRIDGE

BRIDGE
• Press and release the Sync button on
BRIDGE (button nearest the light).
Orange light will fl ash continuously.
BRIDGE is in sync mode while the light
is fl ashing orange.
SYNC
LIGHT
BUTTON • Touch MAGNET to raised lines on side
of TRANSMITTER, and then separate a
minimum of 1 inch. Repeat twice within
2 seconds.
RAISED LINES
• Green light on BRIDGE and beep will
indicate success.
• To exit sync mode: press and hold
Sync button on BRIDGE until light stops
fl ashing orange.
MAGNET
SENSOR
TRANSMITTER

4. Test SENSOR

• Move MAGNET at least 1 inch away from
TRANSMITTER.
• BRIDGE should beep twice.
TRANSMITTER MAGNET

5. Install SENSOR

SENSOR
• Apply double-sided tape to SENSOR —
smaller piece applies to MAGNET; larger
piece applies to TRANSMITTER.
• Please reference Insynctive.Pella.com/
WindowandDoorSensor for
recommended placement on Pella®
products and how to install.
MAGNET
NOTE: Do NOT exceed a 1/2-inch gap between
MAGNET and TRANSMITTER.
TRANSMITTER

6. Test Installed SENSOR

SENSOR
• Open the window or door.
• BRIDGE should beep twice.
WARNING! SENSOR may indicate a closed status
when the window or door is not completely closed.
See Product Guide on Insynctive.Pella.com for
BRIDGE
complete review of WINDOW AND DOOR SENSOR
operation.
If you will be using the Pella Insynctive STATUS INDICATOR to
™
monitor your windows and doors, please reference the Quick Start
Guide in the STATUS INDICATOR package to sync.

HAVE A HOME AUTOMATION OR SECURITY SYSTEM?

For instructions on how to sync a Pella Insynctive WINDOW AND DOOR
SENSOR to it, visit Insynctive.Pella.com/HomeAutomation.

NEED HELP WITH THE STEPS ABOVE?

Find troubleshooting information and videos at
Insynctive.Pella.com/Support or call 855-473-5524.

WANT TO EASILY REGISTER PELLA INSYNCTIVE PRODUCTS?

Visit Insynctive.Pella.com/Registration for instant access to
instructions, warranties and how-to videos.
WARNING
Failure to adhere to the warnings below may result in death, serious injury
and/or loss of valuables.
• Pella® Insynctive products are not 100% reliable for a variety of reasons
™
(see Product Guide and the Warning in Step 6 of this Quick Start Guide for
more information). Therefore, Pella Insynctive products should not be relied
upon in situations where life, safety and/or protection of valuables are solely
dependent on their function. Test each product at least once per year to
help ensure proper operation.
• Pella Insynctive products are not a substitute for careful adult supervision
of children.
• Keep battery and small parts out of reach of children. If swallowed,
immediately seek medical help.
Read the complete Product Guide for additional warnings and information.

FCC Compliance and Industry Canada

This equipment has been tested and found to comply with the limits for Class B
digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a different circuit from the receiver.
• Consult the dealer or an experienced radio/TV contractor for help.
Changes or modifi cations not expressly approved by Pella Corporation could
void the user's authority to operate the equipment.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard
RSS. L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne
peut causer d'interférences, et (2) cet appareil doit accepter toute interférence,
y compris les interférences qui peuvent causer un mauvais fonctionnement de
l'appareil.
FCC ID: SO7-205T0000 © 2014 Pella Corporation
IQSGWDS0414
IC ID: 11009A-205T0000
