BHM
07/25/2019
NTV-DOCxxx
th
3950 NW 120
St. Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com
info@nav-tv.com
Quick Install Guide
Overview

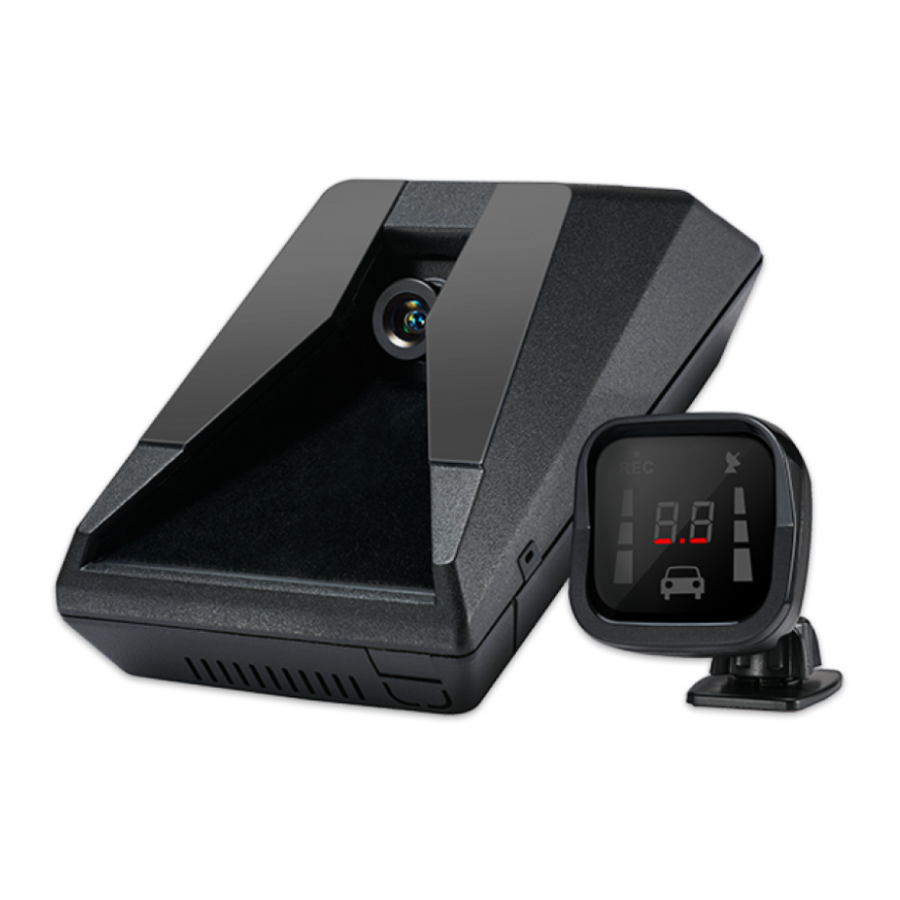

The MDAS-9 by Movon is an advanced driver safety system designed to save lives, increase awareness of bad
driving habits & record driving statistics (with video) for fleet management users and conventional drivers
alike. This installation manual highlights the most important information required and assumes an
experienced installer uses common industry practices for a successful integration.
Kit Content
GPS Antenna
Rear Camera kit
(optional)
(optional)
Advertisement
Table of Contents
Related Manuals for Movon NAV-TV MDAS-9
Summary of Contents for Movon NAV-TV MDAS-9
- Page 1 Quick Install Guide Overview The MDAS-9 by Movon is an advanced driver safety system designed to save lives, increase awareness of bad driving habits & record driving statistics (with video) for fleet management users and conventional drivers alike. This installation manual highlights the most important information required and assumes an experienced installer uses common industry practices for a successful integration.
- Page 2 07/25/2019 NTV-DOCxxx Main (front) camera unit preparation • The main unit comes prepared for bus/large truck setup (cable routing) or vehicles with mostly vertical windshields. To set up the unit for an average truck or passenger vehicle, dismantle partially as shown below: 2.
- Page 3 07/25/2019 NTV-DOCxxx Vehicle Installation 1. Clean the spots on the windshield with the provided alcohol wipe where you plan to mount the hardware. Remove the red 3M tape and mount the main unit underneath the rearview mirror as centered (left/right) and straight as possible (if it must be off center by a few inches, that’s okay –...
- Page 4 Installation: for CAN-equipped vehicles Many vehicles are available in Movon’s database for using the CAN bus for vehicle signals (turn signals, brake and speed sense). This makes for a much faster installation. See below for checking availability of a downloadable CAN file for your vehicle.
- Page 5 (windshield) and the other end to the laptop. If on a windows 10 machine, it should automatically install the required driver. If not or on an older machine, go to movon.co.kr, go to the ‘ADAS’ tab at the top then to ‘Downloads’ under Support. Download the appropriate zip file (contains driver) and extract it fully for your version of Windows OS (if using the 7/8 driver, install the .exe file).
- Page 6 07/25/2019 NTV-DOCxxx 3. Open Chrome browser again and type in ’10.0.0.1’ into the URL bar. If the driver was installed properly, the MOVON calibration screen will appear. Input credentials and press LOGIN: USER: admin PASS: 1234 4. Select Vehicle Signal Type: there are 3 wiring options for...
