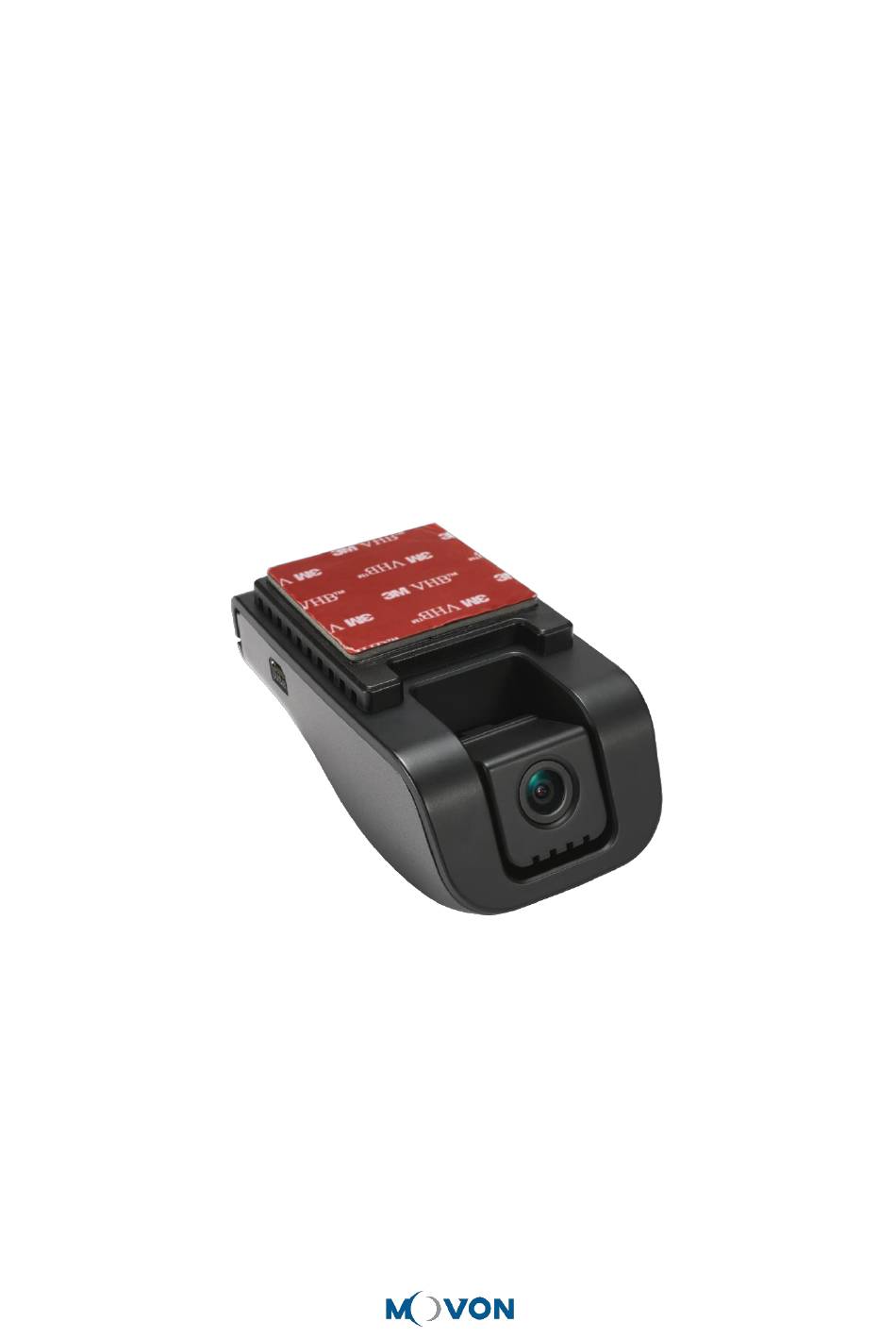

MDAS-5
Installation Guidebook
Ver. 0.3
Last Modified: 2017.07.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDAS-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Movon MDAS-5

Summary of Contents for Movon MDAS-5

  • Page 1 MDAS-5 Installation Guidebook Ver. 0.3 Last Modified: 2017.07.04...

  • Page 2: Table Of Contents

    Wiring Combination and Description ................14 6Pin Power Cable ....................... 14 3.3.1 4Pin Signal Cable ......................15 3.3.2 Wiring Combination ....................16 3.3.3 Attach MDAS-5 ......................... 17 Parts connection ......................18 Indicator ........................18 3.5.1 Vibrator ........................18 3.5.2 - 2 -...
  • Page 3 Driver Setup (ONLY SUPPORTS WINDOWS OS)............20 Calibration Setup ......................20 Access MDAS-5 Calibration page via PC ............... 20 4.2.1 Access MDAS-5 Calibration page via Android Phone ........20 4.2.2 Select Vehicle Signal Types ..................23 4.2.3 4.2.3.1 Vehicle Data File (CAN-BUS) ................23 4.2.3.2 Analog (GPIO) ....................
  • Page 4 How to Download CAN Data ..................35 Register in Vehicle Database ..................35 Download CAN Data file ....................35 Recognize MDAS-5 in computer .................. 38 Computer with Windows XP, 7, 8, 8.1 ................ 38 Computer with Windows 10 ..................38...

  • Page 5: General

    1 General MDAS installation requires wiring electric signals of vehicles. Please contact your local distributor or authorized installers to install. Movon will hold no liability of any damage occurred during installation proceeded by users, or unauthorized installers. MDAS is developed to give only warnings to drivers. The final decision to maneuver or control shall be made by drivers themselves.

  • Page 6: Product

    2 Product Specification Cortex A7 Dual-Core Audio Out Speaker Front 1920 x 1080 (FHD) Camera Rear 1280 x 720 (HD) Input Range DC 10V ~ 36V Power Power 400mA @ 12V Max Consumption 3mA @ 12V Idle State Video AVI (h.264 codec : FHD / 27fps) Format Audio Storage...

  • Page 7: Product Components

    Product components Basic cable Micro SD card Technical cleaning Main unit (6P, 4P Cable) (8GB) wipe Rear Camera USB Indicator Video Out Cable Rear Camera cable (5M standard) (Optional) (Optional) (Optional) (Optional) Micro 5PIN USB cable Wi-Fi Dongle Vibrator (Optional for (Optional for (Optional) (Optional)

  • Page 8: Main Unit & Main Cable

    Main Unit & Main Cable 2.3.1 Main Unit LED Status Illuminate Illuminate Illuminate Blink Booting Working Mode Check status of Micro SD Detect new firmware Card Verify connect with GPS Initialization Calibration Mode - 8 -...

  • Page 9: Main Cable

    2.3.2 Main Cable Technical Cleaning Wipe MDAS-5 provides Technical Cleaning Wipe for cleaning and removing dust, finger print on windshield. Indicator (Optional) Read user manual to see more description and functions. - 9 -...

  • Page 10: Rear Camera (Optional)

    TO indicator port of main unit Indicator Error Table Camera Connection Error CAN Communication Error Low Visibility Indication Rear Camera (Optional) - 10 -...

  • Page 11: Obd-Ii Connector (Optional)

    In case of using the rear camera, connect the USB cable of the rear camera into the USB port on the back of MDAS-5. * Caution: When attaching the camera to the front, please adhere in the direction of adhesion, with the arrow visible above.

  • Page 12: Gps (Optional)

    GPS (Optional) * Important, in case of use GPS for speed signal, warning timing can be inaccurate while decelerating circumstances. 2.10 Video Out Cable (Optional) Transmit analog video to another device using RCA connector. - 12 -...

  • Page 13: Micro Sd Card (Expandable)

    2.11 Micro SD Card (Expandable) * Micro SD card is expandable, only first 3 months are guaranteed. It is recommended to format micro SD card regularly and replace it when it cannot be recognized in MDAS. ** Micro SD card speed shall be above Class 10 and it is recommended to use MLC type. 2.12 Wi-Fi Dongle (Optional for installers) Use for Calibration procedures for Android Phones.

  • Page 14: Installation

    ② Connect vehicle signals (See Chapter 3.3 Wiring Combination) ③ Attach MDAS-5 (and indicator if needed) to the vehicle ④ Connect cables with MDAS-5 ⑤ Access MDAS-5 using Micro 5pin USB cable or Wi-Fi dongle ⑥ Calibration (See Chapter 4. Calibration procedure) ⑦ Test drive Wiring Combination and Description 3.3.1 6Pin Power Cable...

  • Page 15: 4Pin Signal Cable

    Connection Description Color Label Support J1939 White CAN H To CAN High wire standard, CAN 2.0 (Support Version A, Green CAN L To CAN Low wire Yellow POWER To constant power wire Support 12~24 V (MAX 36V) To ignition (Accessory) power wire that turns off when key is at To ground source, please ensure that is connected properly to Black...

  • Page 16: Wiring Combination

    OBD-II connector, check compatibility before use. You do not need 6Pin power cable nor 4Pin signal cables, MDAS-5 will receive power from OBD-II and turn off and on by check CAN-BUS activities 6PIN Power Cable + 4PIN Analog Cable CAN-BUS...

  • Page 17: Attach Mdas-5

    It is very important to attach MDAS-5 at the center for the best performance. However, due to interior or space, if MDAS-5 cannot be attached at the center, attach MDAS-5 as close as to the center. You can adjust the difference in Chapter 4 Calibration.

  • Page 18: Parts Connection

    Parts connection 3.5.1 Indicator * Please connect to 4Pin connector labelled “Indicator” it could damage indicator if you plug into 4Pin Signal connector. 3.5.2 Vibrator 4 Pin split gender cable is required to connector Vibrator. - 18 -...

  • Page 19: Video-Out Cable

    3.5.3 Video-Out Cable Use Movon provided RCA cable and plug into Video out port. This function does not provide other UI or graphics through via video-out. 3.5.4 Rear Camera When connecting the rear camera, please use No. 1 of the USB port.

  • Page 20: Pc And Android Phone Calibration

    * For more details, see Chapter 6. Calibration Setup 4.2.1 Access MDAS-5 Calibration page via PC ① Connect MDAS-5 to PC using Micro USB cable with 5 pins. ② Start the engine. If you hear repeating beep sound, this means MDAS-5 is properly connected to computer.
  • Page 21 ② Connect Wi-Fi Dongle to USB port on MDAS-5. ③ Find and connect to “MDAS-5” on your Wi-Fi setting page. (Password: 12345678) - 21 -...
  • Page 22 ④ Return to the ADAS Settings app. Select “MDAS-5” and click the “NEXT” button. - 22 -...

  • Page 23: Select Vehicle Signal Types

    ⑤ On the Log-in Page below, Please enter your ID and Password, then select language you want. ⑥ If you can see the MDAS-5 Calibration page below, you are ready for the Calibration procedure now. 4.2.3 Select Vehicle Signal Types 4.2.3.1 Vehicle Data File (CAN-BUS)

  • Page 24: Analog (Gpio)

    4.2.3.2 Analog (GPIO) In case of using Analog signals for all vehicle data, you do not need to download Vehicle Data file. Just click the Analog (GPIO) tab. Enter speed correction value and RPM correction value. Change polarity for turn signals and brake signal based on the vehicle.

  • Page 25: Vehicle Information Check

    4.2.4 Vehicle Information Check In this page, you can check whether MDAS-5 is receiving vehicle data properly. 4.2.4.1 Verify Speed Signal Start the engine and drive slowly in a safe place to see whether speed is corresponding with the vehicle’s speed gauge. If it is not, you can simply adjust it.

  • Page 26: Fine Camera Angle

    4.2.5 Camera Angle Adjust the camera angle knob to locate the horizon between the red guide lines. In case of indoor installation or somewhere you cannot see the horizon properly, use same data to "Camera Height”. Mark the same height on the wall apart about 3 ~ 5 meters from the vehicle.

  • Page 27: Camera Location And Vehicle Measurement

    “-“: Left Side / “+”:Right Side Center (If MDAS-5 is attached 5cm to the right from the center, input 5. If MDAS-5 is attached 5cm to the left from the center, input -5.) Distance from the camera to the center of the wheel.

  • Page 28: Rear Camera Setup

    Distance between the wheels. Vehicle Measure distance from left outside boarder to right outside boarder Width of the wheels. Camera to Distance from the camera lens to the end of the bumper. bumper 4.2.8 Rear Camera Setup For better angle of Rear Camera (DVR), adjust the camera module by rotating 4.2.9 Lane Departure Warning (LDW) Sensitivity You can adjust the LDW Sensitivity for your convenience.

  • Page 29: Forward Collision Warning (Fcw) Sensitivity

    ① Set the sensitivity of LDW warning on a scale of 1 to 5. As the level gets higher, you will hear the warning sound earlier. ② Warning sound: Select preferred warning sound for LDW. 4.2.10 Forward Collision Warning (FCW) Sensitivity You can adjust the FCW Sensitivity for your convenience.

  • Page 30: Dvr(Dashcam) Setup

    ① Set the Repeating FCW alarm. (Only Alert / Always) ② Enable Forward proximity warning function (On / Off) and ③ Set the warning range on a scale of 1 to 3. ④ Enable Forward vehicle start alarm. (On / Off) ⑤...

  • Page 31: Dtg(Digital Tachograph) & Gpio Setup

    ④ Set TV out (NTSC / PAL) ⑤ Set Break Time Alarm on a scale of 1 to 6 hours and Off. 4.2.14 MDAS Setup Complete After this step, click complete then Calibration setup is finished and MDAS-5 reboots. - 31 -...

  • Page 32: Setting Modification

    Setting Modification Once MDAS-5 is calibrated, when you access to MDAS-5, you will see different menu. 4.3.1 Menu Description  System Update: The latest firmware published in the website (www.mdas.co.kr) can be updated here.  Default the System: It can be cleared and reset to the installation default.

  • Page 33: Default Mdas Settings

    After uploading the file, click “Update Firmware” button below. ③ After updating firmware, you can see a pop up message below. *NOTE: Do not touch or change anything whiling updating, Unless MDAS-5 might lose its data and stop working. 4.3.3 Default MDAS Settings If you want to remove all data and return to a factory setting, click the “Default System”...

  • Page 34: Recalibration

    4.3.4 Recalibration If you click this menu, you will restart from 4.2.4.1 Vehicle Information File Check. 4.3.5 Warning, DVR, Time If you click this menu, you will restart from 4.2.9 Lane Departure Warning (LDW) Sensitivity If you only want to change settings about Warning sensitivity, DVR, Time Settings, please press this.

  • Page 35: How To Download Can Data

    Register in Vehicle Database Open a web browser and enter http://info.mdas.co.kr/ You need to register and get an approval to log in. Please contact Movon Corp. or your local distributor for the approval. Download CAN Data file Once you log in, you will see Vehicle profile database page.
  • Page 36 Select Manufacturer, Model name and manufactured Year for the vehicle you need. You will see results on the right side of the page. Then click “ ” icon to see and download the vehicle information. - 36 -...
  • Page 37 Click “CAN File Download” button, then it will be downloaded as “mdasinfo.dat”. If you want to download photos and signal data, click “PDF download” button. They will be downloaded as a PDF file. - 37 -...

  • Page 38: Recognize Mdas-5 In Computer

    6 Recognize MDAS-5 in computer * Please connect MDAS-5 to your laptop using Micro 5Pin USB cable before install the driver. * Computer with Windows XP, 7, 8, 8.1 Visit http://www.mdas.co.kr and click “Notice” tab. You can find MDAS-3 PC Calibration file. Please download and unzip it. When you install it, please click the right button on your mouse and select “Run as...
  • Page 39 ② Download RNDIS driver and unzip it. ③ Press Window key + R. Type “devmgnt.msc”. You will see Device manager and a USB serial Port (COM x) under Ports (COM & LPT). ④ Click it using the right button of your mouse, then click “Properties”. - 39 -...
  • Page 40 ⑤ In the newly popped up window, Go to “Driver” tab, and click “Update Driver” ⑥ Select “Browse my computer for driver software”. - 40 -...
  • Page 41 ⑦ Click “Browser…” button and “Browse For Folder” window will pop up. - 41 -...
  • Page 42 ⑧ Choose “rndisdriver”. * Remember the path where you downloaded and unzipped the file * ⑨ Press “Next” on the page below. - 42 -...
  • Page 43 After installing the driver, you can close the windows. ⑩ Open a web browser and type http://10.0.0.1 If you see MDAS-5 page like above, you have done everything perfectly. - 43 -...
