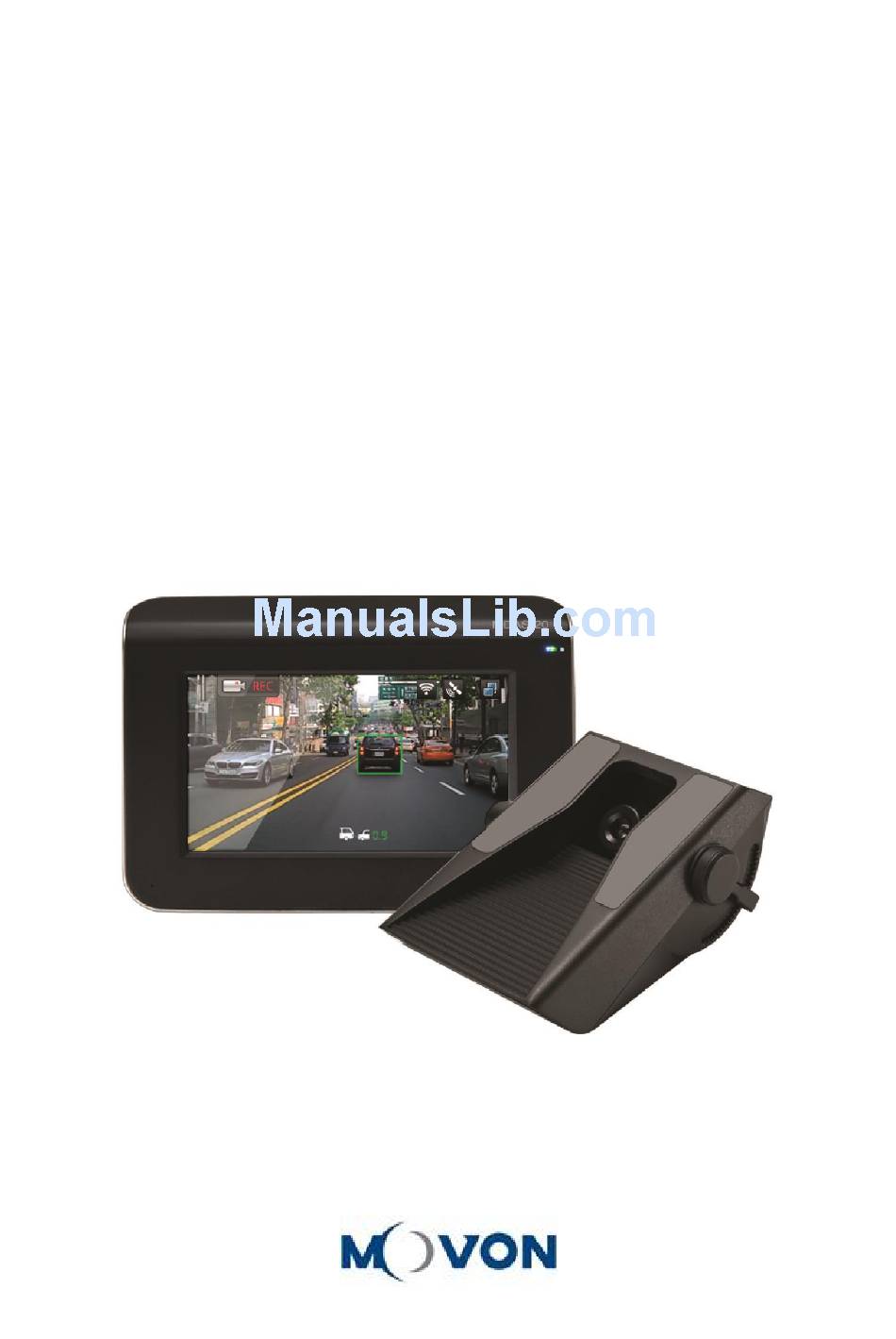

  • Page 1 July 2014 Document v1.1 Movon Driver Assistance System MDAS-20 Installation Guide Book...

  • Page 2: Table Of Contents

    3.4 User manual 3.5 Accessories: Micro SD card, sticker 3.6 Optional products: Rear camera, GPS modem Chapter 4. Setting 4.1 The process of MDAS-20 installation 4.2 Setting the camera 4.3 Setting the main unit 4.4 Connecting to the car signal 4.5 Calibration...

  • Page 3: Chapter 1. What Is Mdas-20

    MOVON doesn’t cover the defects and damages caused by careless drivers, traffic violations, illegal activities, misuses and abnormal uses. MDAS-20 gives the warning as beep sounds when the vehicle changes the lane without proper signaling. The final operation and judgment will be made at the discretion of the driver.

  • Page 4: Chapter 3. Components

    July 2014 Document v1.1 Chapter 3. Components 3.1 MDAS-20 main unit 3.2 MDAS-20 camera 3.3 Power/Signal cable 3.4 User manual 3.5 Accessories: Micro SD card, Sticker 3.6 Optional products: Rear camera, GPS modem...

  • Page 5: Chapter 4. Setting

    4.1 The process of MDAS-20 installation Identification of location on power, CAN signal, analog signal and vehicle signal connected to the vehicle Fixation of the MDAS-20 main unit in the proper position of the dash board Checking and installing the camera, rear camera and 3G...

  • Page 6: Setting The Camera

    July 2014 Document v1.1 4.2 Setting the camera After removing the double-sided tape of the mount, attach the camera in the proper position of the windshield not to block the driver’s view and secure a good recording position. In case of commercial vehicles such as heavy trucks and buses, attach the camera above the position of the wiper.

  • Page 7: Connecting To The Car Signal

    July 2014 Document v1.1 With the adjustment of the bolt, the placement of the main unit can be changed in all directions. 4.4 Connecting to the car signal The figure below shows how each component of MDAS-20 should be connected.
  • Page 8 3. Download a CAN file by clicking the MicroSD card for MDAS-20. 4. Insert the SD card into MDAS-20. 2. In case of the CAN signal, connect the cable of CAN H / CAN L to OBD-Ⅱ. After the connection is made, you can check it via the CAN SNIFFER.
  • Page 9 July 2014 Document v1.1 3. After checking the cable, connect to the proper signals according to the chart below Car signal Cable color Car signal Cable color LEFT direction Right direction Speed Break DEB_TX DEB_RX 4. In order to make the connection to the signals, open the Shield/ Fuse cover/Glove Box 5.
  • Page 10 July 2014 Document v1.1 Ex) Position of the signal lights (Bottom of the steering wheel) Checking the cables for the signal lights using the test equipment 6. Connecting the camera cable to the main unit cable. [Main Unit Cable] [Camera Cable]...
  • Page 11 July 2014 Document v1.1 7. Connecting the multi cable to the main unit. [Main Cable] [Main Unit] 8. After all the connections are made, organize the cables. 9. After organizing the cables, assemble Shield/ Fuse cover/Glove Box to their former positions.

  • Page 12: Calibration

    July 2014 Document v1.1 4.5 Calibration Turn on the product and select the “Calibration” icon at the below page. Select the “Calibration” again at the below page. Select the vehicle model and manufacturer and click the arrow on the upper right-hand corner.
  • Page 13 July 2014 Document v1.1 Setup the current date and time. Select the appropriate speed unit. Adjust the lens of the camera to place the horizon between the two red dotted lines. Then, click the arrow on the upper right-hand corner Adjust the yellow dotted line to place the horizon between the two red dotted lines.
  • Page 14 July 2014 Document v1.1 Adjust the value of the hood line to align the yellow dotted line to the boundary of the hood. Fill in the vehicle width and adjust the value of camera height for the location of the camera. 10.
  • Page 15 July 2014 Document v1.1 11. If you want to change the warning timing for FCW, please click the distance range marker. Default value is 1.2 sec. and every unit changes 0.3 sec. 12. After checking if the car signals are connected properly, press the next button and close the calibration mode.
  • Page 16 July 2014 Document v1.1 13. Adjustment of the sensitivity of the lane departure warning. 1) Click the ADAS icon 2) Set left and right sensors in LDW The beeping sounds will go off more quickly as the lanes are set closer to the vehicle. 3) Set TTC (Time to Collision) in FCW The beeping sounds will go off more quickly as the host vehicle is set close to the vehicle.

  • Page 17: Operation Test

    July 2014 Document v1.1 4.6 Operation test 1. Adjust the knob of camera so that the middle of the red line is aligned with the horizon. You can easily open the cab of adjusting knob and tighten the bolt. 2. Check the speed in the top of right.
  • Page 18 July 2014 Document v1.1 3. Check to see if the signal lights are working. 4. Check if virtual lanes are displayed in case the vehicle is driving more than 60Km/h.
