Summary of Contents for Movon MDAS-9

  • Page 1 MDAS-9 User Manual...
  • Page 2 Customer service incurred by controlling while driving or damaging / revamping will not be guaranteed by Movon’spolicy. Movon shall NOT be responsible for any problems and / or damages that may occur from not using genuine or Movon authorized parts and accessories. It is strongly recommended to use parts and accessories (including micro SD card) provided by Movon or Movon’s Authorized seller to avoid any problems and/or damages.
  • Page 3 Foreign substance or finger print on the lens may cause improper safety function performance. If recorded videos are broken due to users mishandling, the damaged video is not guaranteed to recover. Do not separate micro SD card from MDAS-9 while the power is on. Separate after turning off MDAS-9 if necessary.

  • Page 4: Table Of Contents

    Contents 1. About Product 1.1 Product Overview 1.2 Part Description 1.3 Button Description 2. Indicator 2.1 Indicator Display 2.2 Indicator Setting 3. Function & Notice 3.1 Digital Video Recorder (Dashcam) 3.2 Notice 4. Limitations & Limited Warranty 4.1 Limitations 4.2 Limited Warranty...

  • Page 5: Product Overview

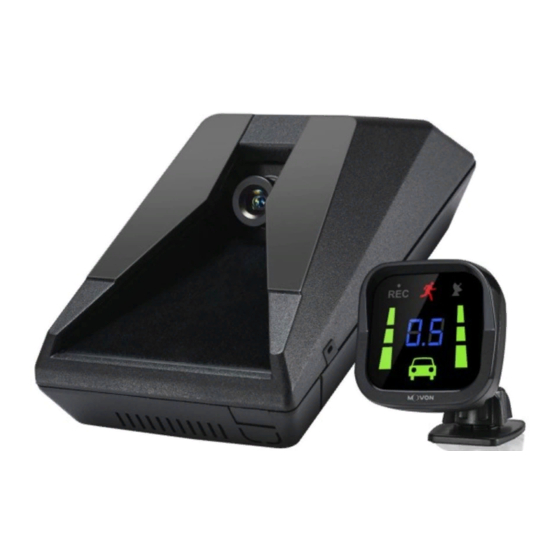

    1. About Product 1.1 Product Overview Movon Advanced Driver Assistance System (MDAS) helps to drive safely by using a machine vision recognition technology to prevent drowsy or reckless driving. [Main functions] Lane Departure Warning (LDW) Provides the driver with a warning to regain direction if the host vehicle departs lanes unintentionally.

  • Page 6: Part Description

    1. About Product 1.2 Parts Description Main cable Volume / Sensitivity Down Mode setting Volume / Sensitivity Up ① ② ③ Micro SD card slot 5pin USB port GPS port Indicator Display Volume up ① User Recording ② Volume down ③...

  • Page 7: Button Description

    Voice recording started Mic.On/Off Voice recording on/off /ended Please press the center button Format SD card SD Card Format to format Micro SD card (Increasing sound) Volume Up Volume up (Decreasing sound) Volume Down Volume down Rebooting the system Reboot Reboot MDAS-9...

  • Page 8: Indicator Display

    2. Indicator 2.1 Indicator Display Front Vehicle Detection Booting Mode Front vehicleis detected. MDAS is turning on. FCW function is available. Lane Detection Front Vehicle Start Alarm Lanes are detected. The vehicle stays over 2 seconds since front LDW function is available. vehicle started moving.
  • Page 9 2. Indicator Camera Connection Error Pedestrian Detection Camera connection is not good. Pedestrian ahead is detected. Contact your local distributor/ installer. CAN Communication Error Pedestrian Collision Warning CAN communication has a problem. Collision with pedestrian is impending. Contact your localdistributor/installer. Other Error Icons Speed Limit Detection E3_Camera view block error.

  • Page 10: Indicator Setting

    2. Indicator 2.2 Indicator Setting -Display Turning Off : Press the center button until the display turns off. (It still gives a warning sound) -Display Turning On : Press the center button until the display turns on. Setting Mode 1) Voice Recording Control Mode Press the (-) button for 3 seconds, then it enters voice recording control mode.
  • Page 11 2. Indicator 5) Right LDW Sensitivity Control Mode Press the center button once, then it changes to right LDW sensitivity control mode. Five levels (1-5) are available. Press the (-) and (+) button to decrease or increase the right LDW sensitivity and save new settings.
  • Page 12 2. Indicator 10) Date and Time Settings Mode Press the (+) button for 3 seconds, then it enters date and time settings mode. Year → month and day → hours and minutes settings are available in order. Press the (-) and (+) button to move backward and forward and the center button to adjust the numbers. Select green box and press the center button to save new settings.

  • Page 13: Digital Video Recorder (Dashcam)

    When you remove the micro SD card, please make sure MDAS is completely off. Micro SD card is a consumable accessory. Movon does not guarantee a certain period of lifespan of micro SD card. It is recommended to check the status of micro SD card on a regular basis and if micro SD card is not...

  • Page 14: Notice

    3. Function & Notice 3.2 Notice In the initial calibration procedure, the distance between “Bumper to camera” must be input as exact as possible. Otherwise it could measure distance wrong or sounds a false alarm due to distance miscalculation. FVSA would not operate properly if the distance between two cars is 8 meters or far away. If the unit is placed over 2.0m (6.55feet) on Truck or Bus, and the front car is a small car, it may not detect the front car properly.

  • Page 15: Limitations

    4.1 Limitations The MDAS-9 is designed to operate on the paved roads with lanes which are clearly marked. The MDAS-9 cannot recognize better than the driver. It is the driver’s responsibility to be alert and aware at all times while driving.
  • Page 16 V3.1...
