Related Manuals for Purple Line Quattro Titanium
Summary of Contents for Purple Line Quattro Titanium
- Page 1 REMOTE CARAVAN MOVER Installation Guide and User Information QTR-M004 EGO400 - Quattro Titanium EM4446 - Enduro Translate online Online übersetzen Vertaal online Traduire en ligne www.purpleline.co.uk/qtr-m004...
-
Page 2: Document Control
Please visit www.purpleline.co.uk/caravan-movers before installation to check for any updates on product specifications, usage, safety or installation instructions. Bitte besuchen Sie www.purpleline.co.uk/caravan-movers VOR Installation auf Aktualisierungen zu Produktspezifikationen, Nutzung, Sicherheit und Einbauvorschriften zu überprüfen. Kunt u terecht op www.purpleline.co.uk/caravan-movers vóór de installatie te controleren of er updates over productspecificaties, het gebruik, de veiligheid of de installatie-instructies. -
Page 3: Table Of Contents
Table of Contents CONTENTS PAGE NO. Document Control Table of Contents Package Contents (Fig.A) 04 - 05 Technical Reference Diagrams 06 - 10 Introduction Fitting Guidelines Specification Installation - Safety Guidelines Installation - Mechanical Components Installation - Classic Clamp System 13 - 14 Installation - Shark Clamp System 14 - 15... -
Page 4: Package Contents (Fig.a)
Package Contents (Fig.A) DESCRIPTION Motor Unit (A) Motor Unit (B) Main Cross Bar Cross Actuation Centre Bar Cross Actuation Insert Bars Engagement Tool Classic Clamp - Stop Nut and Bolt* Classic Clamp - Upper Plate* Classic Clamp - U Plate* Classic Clamp - Lower Plate* Convoluted Cable Trunking Positive (+) Red Motor Wire... - Page 5 Fig.A Motor B Motor A EN-05...
-
Page 6: Technical Reference Diagrams
Technical Reference Diagrams Fig.1 EGO400 EM4446 Fig.2 EGO400 Fig.3 EM4446 EN-06... - Page 7 Technical Reference Diagrams Fig.4 Fig.5 EM4446 EM4446 20mm Disengaged Position Fig.6 EM4446 Engaged Position Fig.7 Fig.8 20mm EGO400 EGO400 Disengaged Position Fig.9 EGO400 Engaged Position EN-07...
- Page 8 Technical Reference Diagrams Fig.10 Fig.11 Fig.12 MOTOR UNIT A MOTOR UNIT B MOTOR UNIT B MOTOR UNIT A Fig.13 175mm (min) 2.8mm to 3.5mm 155mm 30mm to 45mm (min) 85mm (min) 85mm (min) 1800mm to 2500mm (max) EN-08...
- Page 9 Technical Reference Diagrams Fig.14 EN-09...
- Page 10 Technical Reference Diagrams Fig.15 Fig.16 EN-10...
-
Page 11: Introduction

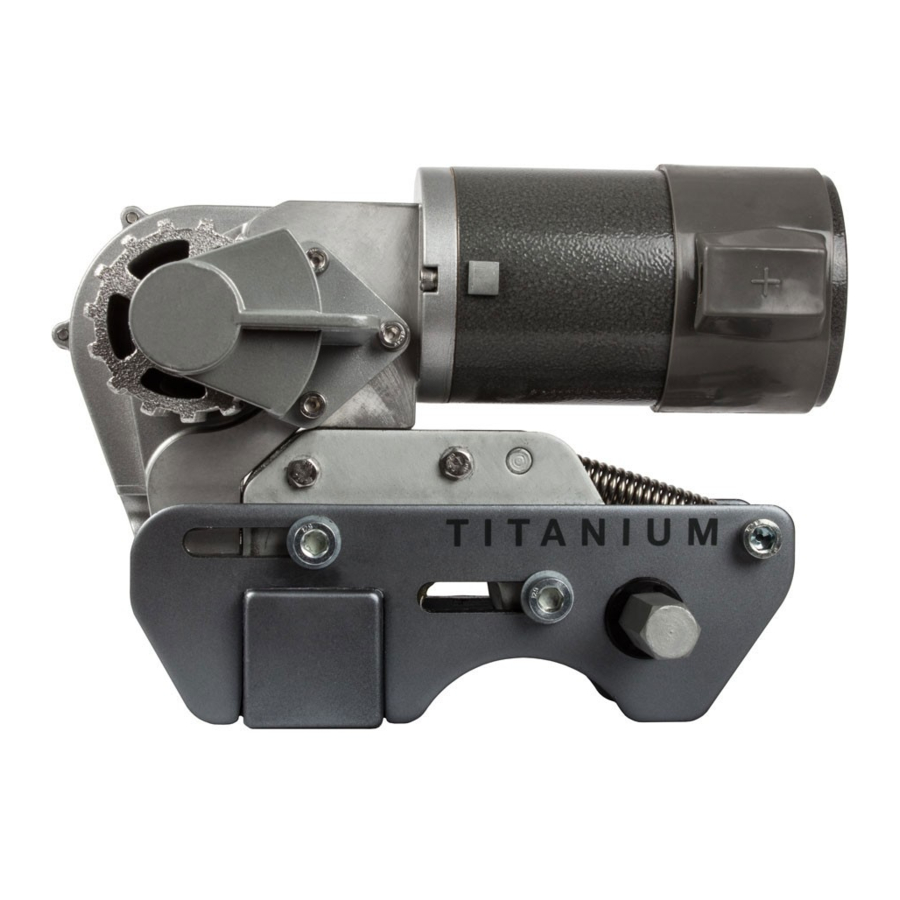

This installation manual covers two models of Caravan Mover: EM4446 - Enduro and EGO400 - Quattro Titanium. Any differences between the models are detailed where appropriate. The mover system consists of two 12V motor-powered rollers, a 12V electronic control box and a remote control. -
Page 12: Installation - Safety Guidelines
Installation - Safety Guidelines Read this User Manual carefully before installation and use. Failure to comply with these rules could result in serious injury or damage to property. Before starting installation of the caravan mover: DO check that the caravan is disconnected from the battery supply and the mains electrical supply. DO only use adapters and accessories that are supplied or recommended by the manufacturer. -
Page 13: Installation - Mechanical Components
Installation - Mechanical Components To begin mechanical installation, ensure that your caravan is placed on a hard, level surface. Where possible the use of a lifting ramp or an assembly pit is ideal for access and personal safety. Make sure your caravan is prepared for installation. Clean the relevant mounting areas of your chassis to ensure a secure fitting of the mover system. -
Page 14: Installation - Shark Clamp System
Installation - Classic Clamp System cont. Once satisfied with mover spacing, fully tighten the four nyloc nuts (17) on both clamping assemblies (Fig.14) to a torque setting of 40 ft lbs/55Nm, then the bolts (Fig.1.B and Fig.1.C) on each motor side framework to a torque setting of 9ft lbs/12Nm. -
Page 15: Installation - Mechanical Components (Awd Configuration)
Installation - Shark Clamp System cont. Insert pinch bolt (Fig.16.B) and tighten to a torque setting of 18 ft lbs/25Nm, ensuring while doing this, that the retaining nut is at the highest position. Once the bolt is secure, tighten the retaining nut. Finally tighten the pivot bolt (Fig.16.C) to 9ft lbs/12Nm. -
Page 16: Maintenance
The serial numbers will be required for product registration. Motor Serial No. Date of Purchase Name of Dealer Contact Information Purple Line Limited Peninsula Business Centre Tel: +44 (0) 1473 601200 Wherstead, Suffolk E-mail: info@purpleline.co.uk IP9 2BB, United Kingdom... -
Page 17: Guarantee
UK parts only warranty for a period of 7-years ® (EGO400 Quattro Titanium) and 5-years (EM4446 Enduro) which includes the first 12 months statutory, plus an additional extended warranty period of 6 and 4 years respectively. Please note that the extended warranty periods are only offered if Product Registration is completed and returned within 14 days from the date of purchase. -
Page 18: Optional Fitting Adaptors
Optional Fitting Adapters Additional chassis clamp adapters shown below are available for purchase: Low Profile Chassis Adapter Plates (Part No. CM-029) If your chassis frame height is less than 140mm these plates must be fitted to lower the assembly to provide the correct height of 185mm. Drilling of your chassis may be required. -
Page 19: Notes
Notes EN-19... - Page 20 Purple Line Ltd, Unit 1, Peninsula Business Centre, Wherstead, Suffolk IP92BB Web: www.quattromover.com Tel: +44 (0)1473 601200 Email: info@purpleline.co.uk Photographs & diagrams for illustration purposes only. Actual product may differ slightly. All weights & dimensions are approximate. The manufacturer reserves the right to change product specification without prior notice. E & OE.
