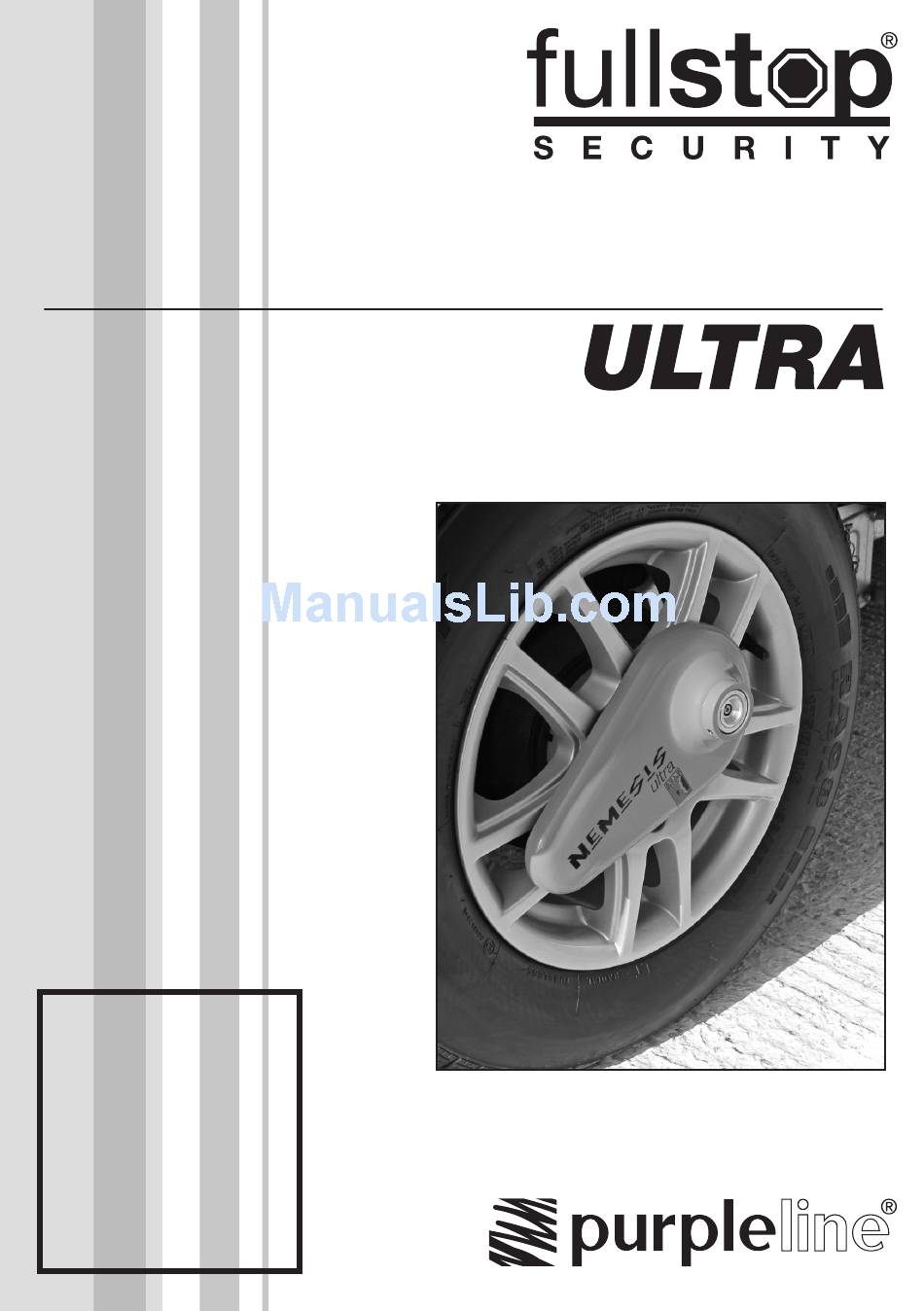

- Page 1 Nemesis Model. FNU100 Wheel Lock PLEASE READ THIS MANUAL BEFORE FIRST USE. User Manual TIME INVESTED IN CORRECT FITMENT Rev.A 02-12 IS REPAID IN THE LEVEL OF SECURITY THAT IS ACHIEVED. design...innovate...improve...
- Page 2 Parts Identification & Fitting Diagrams Fig. A 1. Shield Plate 2. Wheel Bar 3. Lock Unit 4. Receiver Wheel Bolt Fig. B 5. 1mm Spacer Ring (x20) 6. Lock Unit Hex Screw 7. 3mm Hex Key 8. Key (x2) 9. 19mm to 10mm Wheel Wrench Adapter Fig.
- Page 3 The FullStop® Nemesis Ultra wheel lock is designed to secure the shield onto a replacement wheel bolt so that the Wheel Bar protrudes through one of the gaps in a wheel to prevent wheel rotation. 1. Before the product can be used, one of your existing wheel bolts must be removed and replaced with the Receiver Wheel Bolt (4).
- Page 4 No form of consequential loss what so ever will be accepted. design...innovate...improve © Copyright 2012. Purple Line Limited. Web: www.purpleline.co.uk E-mail: admin@purpleline.co.uk Tel: 01473 601200 Photographs for illustration purposes only. Actual product may differ slightly. Purple line Limited reserve the right to alter product specification without prior notice.
