- Page 1 Quick Release Power Mover Move and rotate recreational vehicles with the push of a button. PATENT PENDING USER MANUAL design...innovate...improve Purple Line Document Reference EQR130-1308...
- Page 2 PACKAGED CONTENTS IMAGES: Illustration purposes only Page 2...
-
Page 3: Table Of Contents
Page 13 Trouble Shooting Page 14 Maintenance Instructions Page 15 Warranty Page 15 Registration Page 15 Purple Line Address Details Page 16 PACKAGED CONTENTS LIST: Item Qty Description Item Qty Description Power Movers Positive (+) Red Motor Cable 5M Quick Release Mount... -
Page 4: Introduction

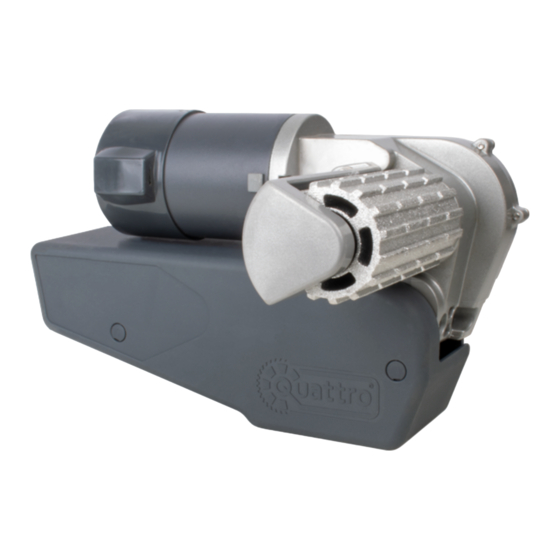

INTRODUCTION: Thank you for choosing the Purple Line Ego QuicKEY™ Quick Release Power Mover. The revolutionary Ego QuicKEY™ Quick Release Power Mover (Patent Pending) is designed to manoeuvre recreational vehicles via a remote control handset effortlessly, enabling navigation in restricted areas minimising the risk of damage to your vehicle. -
Page 5: Installation Pre-Check Guidelines
INSTALLATION - PRE CHECK GUIDELINES: These instructions are of a general guidance as installation will vary according to the make and model of the recreational vehicle. To aid you with the installation a video is available for viewing at www.purpleline.com.au. If in doubt regarding the installation of Ego QuicKEY™... - Page 6 MECHANICAL ASSEMBLY and INSTALLATION DIAGRAMS: Diagram 1a: Ego QuicKEY from Roller Diagram 1: Ego QuicKEY in the Disengaged Position 20mm Gap 20mm Gap between roller & tyre Silder Bolts Slots Diagram 2: Ego QuicKEY - to Disengaged Diagram 4: Mounting Explorer Engagement Handle Slot for...
-
Page 7: Mechanical Assembly And Installation Instructions
MECHANICAL ASSEMBLY and INSTALLATION INSTRUCTIONS: The Chassis Plates supplied with Ego QuicKEY™ are suitable for most recreational vehicles. However some recreational vehicles require non-standard plates. Check with the dealer to ensure you have the correct Chassis Plates to fit Ego QuicKEY™ 1. -
Page 8: Electrical Wiring Diagram
ELECTRICAL WIRING DIAGRAM: Leads Leads Anderson Plugs 3 & 4 1 & 2 View when installed behind wheels Ego QuicKEY Power Movers Ego QuicKEY™ is supplied with a Battery Wiring Loom designed to connect the Electronic Control Module, Isolation Switch and Battery. Additionally, it has two wiring looms that connect the Electronic Control Module, which include an Anderson Plug at one end which connects to the Anderson Plug on the Power Mover/s. -
Page 9: Remote Control Handset
REMOTE CONTROL HANDSET OPERATION: Ego QuicKEY™ is supplied with a Remote Control Handset powered by three ‘AAA’ 1.5V batteries. The Remote is activated by pressing the Power Button (A) twice within 1 second. Once activated the Green LED will illuminate indicating the directional control buttons can be pressed to move the Recreational Vehicle. -
Page 10: Pairing The Remote
PAIRING THE REMOTE: Ego QuicKEY™ is supplied by the factory with the Remote already paired to operate in single axle mode. Should you ever need to replace a Remote or set it up to operate in Dual Axle mode, follow these instructions. SINGLE AXLE MODE: Switch on the Isolation Switch and the Control Unit LED’s will flash for ten seconds. -
Page 11: Single Axle And Dual Axle Configurations
SINGLE AXLE AND DUAL AXLE CONFIGURATIONS: IMPORTANT NOTICE The Electronic Control Unit supplied with Ego QuicKEY™ features Quattro Electronics, designed to operate in single or dual axle modes. As advised per the previous page, the Electronics Unit with Ego QuicKEY™ is supplied by the factory to operate in single axle mode. -
Page 12: Operating Safety Guidelines
OPERATING SAFETY GUIDLINES: The following safety guidelines will enable you to gain maximum benefit when using Ego QuicKEY™ and be able to operate safely. Accordingly please note the guideline and warnings. Before use check that there is no damage to the recreational vehicle or go Ego QuicKEY™ that could affect its performance. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS: PLEASE READ THE MANUFACTURER’S HANDBOOK THOROUGHLY BEFORE OPERATING THE RECREATIONAL VEHICLE AND EGO QUICKEY™. PLEASE READ THE SAFETY GUIDELINES SUPPLIED THOROUGHLY BEFORE OPERATING EGO QUICKEY™. ENSURE THE BATTERY TO BE USED TO POWER EGO QUICKEY™ IS IN GOOD CONDITION, FULLY CHARGED AND OPERATING WITHIN SAFE GUIDELINES. -
Page 14: Trouble Shooting
Remote by pressing the power button twice within 1 second. IF IN DOUBT OR IN THE EVENT THE FOREGOING TROUBLE SHOOTING INSTRUCTIONS FAIL TO RECTIFY THE ISSUE, CONTACT THE DEALER EGO QUICKEY™ WAS PURCHASED FROM OR PURPLE LINE. Page 14... -
Page 15: Warranty
Contacts: To make a warranty claim first contact the retailer the Goods were purchased from and if purchased online Purple Line http://www.purpleline.com.au/contact/php REGISTRATION: Please register your purchase of Ego QuicKEY™ online within 14 days of purchase. Registration is quick and simple, go to www.purpleline.com.au/product-registration.php. - Page 16 5/238 Governor Road, Braeside, VIC 3195 +61 (3) 9588 2959 enquiries@purpleline.com.au www.purpleline.com.au...
