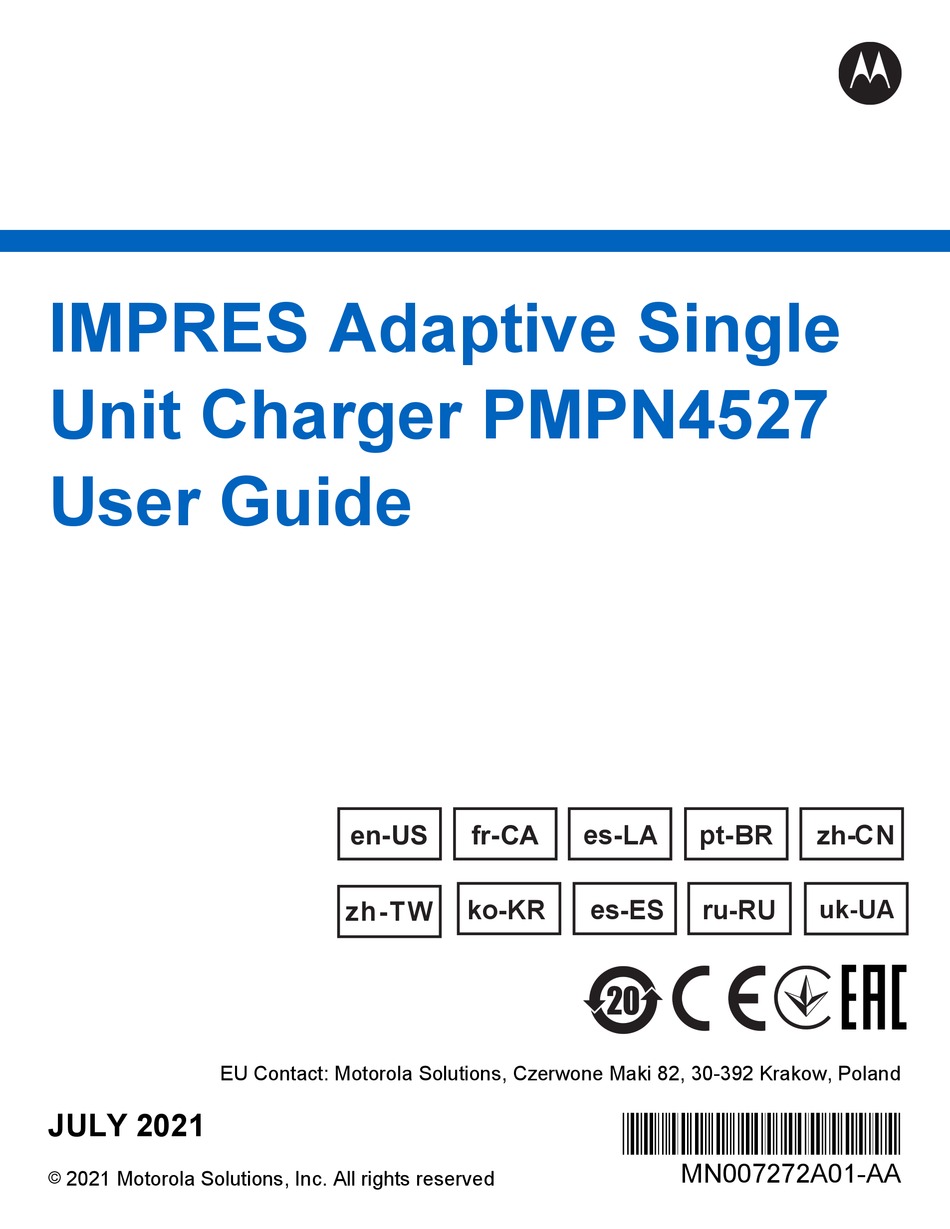

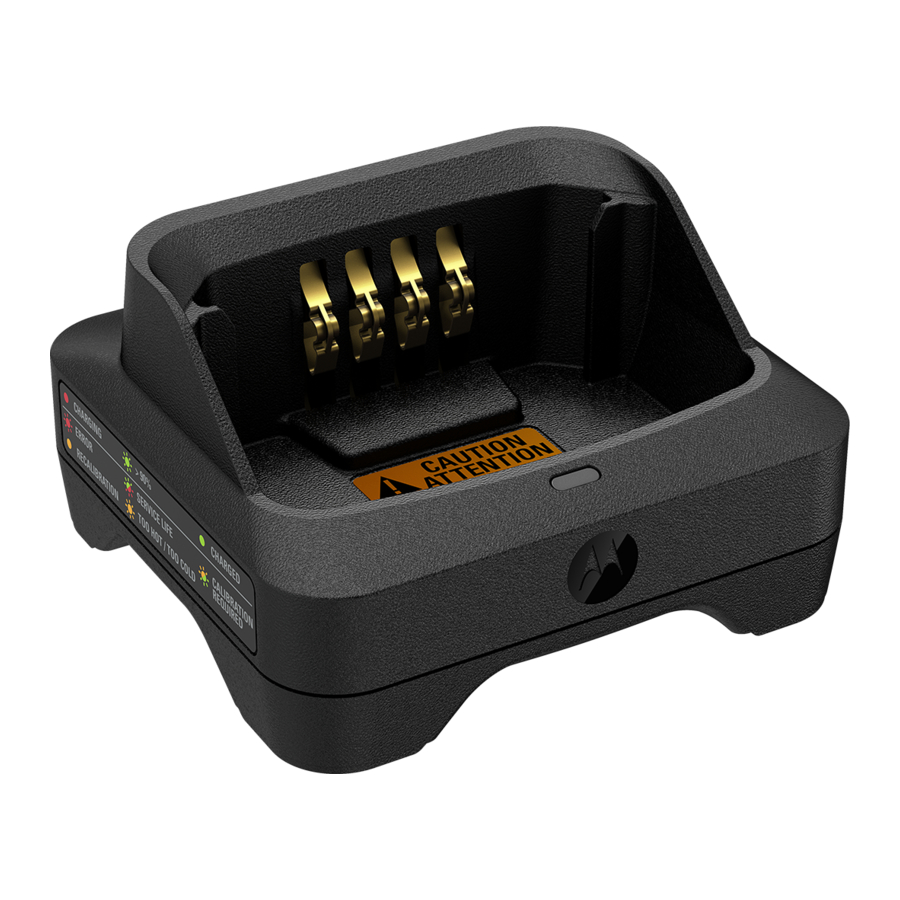

- Page 1 IMPRES Adaptive Single Unit Charger PMPN4527 User Guide es-LA pt-BR en-US fr-CA zh-CN ko-KR es-ES ru-RU uk-UA zh-TW EU Contact: Motorola Solutions, Czerwone Maki 82, 30-392 Krakow, Poland JULY 2021 *MN007272A01* MN007272A01-AA © 2021 Motorola Solutions, Inc. All rights reserved...
-
Page 2: Table Of Contents
2.4.2 Initiating Calibration and Recondition Manually............11 2.5 IMPRES End of Service Life LED Indication................. 11 Chapter 3: Troubleshooting................... 13 3.1 Service...........................13 Chapter 4: Authorized Power Supplies and Batteries......... 14 4.1 Compatible Power Supplies....................14 Chapter 5: Motorola Solutions Authorized Batteries...........15... -
Page 3: Intellectual Property And Regulatory Notices
License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. -
Page 4: Contact Us
Your organization received support phone numbers and other contact information appropriate for your geographic region and service agreement. Use that contact information for the most efficient response. However, if needed, you can also find general support contact information on the Motorola Solutions website, by following these steps: 1 Enter motorolasolutions.com... -
Page 5: Icon Conventions
MN007272A01-AA Icon Conventions Icon Conventions The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. DANGER: The signal word DANGER with the associated safety icon implies information that, if disregarded, will result in death or serious injury. -
Page 6: Chapter 1: Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, only use the accessories recommended by Motorola Solutions. • Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment. Class B Digital Device NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 7: Operating Guidelines
Recommended to turn off the radio while charging, unless the radio is transmitting data wirelessly (through Wi-Fi). • Connect the charger to an AC outlet using only a Motorola Solutions Authorized Power Supply. See Motorola Solutions Authorized Power Supplies. •... -
Page 8: Chapter 2: Impres Batteries And Chargers
Charging Radios and Batteries The IMPRES Adaptive Charger System is a fully automated system. The charger pockets accommodate either a radio with an attached Motorola Solutions-approved battery, or a Motorola Solutions-approved battery alone. Batteries charge best at room temperature. Prerequisites: Note that the radio can only be turned on when the radio is transmitting data wirelessly. -
Page 9: Impres Battery Charging Indicators
Once the Motorola Solutions-approved battery is properly seated into the pocket, the charger indicator illuminates, indicating the charger has recognized the presence of the battery. 4 To remove a radio or Motorola Solutions-approved battery from the charger, pull straight up until the battery completely clears the charger housing. -
Page 10: Impres Battery Initialization
MN007272A01-AA Chapter 2 : IMPRES Batteries and Chargers Status LED Status Comments Standby Flashing amber • Battery is waiting to rapid charge. • Battery may be too hot, too cold, or low voltage. • Charger may be too hot. End of Service Life Alternating red and Battery remains usa- green... -
Page 11: Terminating Calibration And Recondition Manually
MN007272A01-AA Chapter 2 : IMPRES Batteries and Chargers Figure 1: Self-Calibration and Recondition Icon NOTE: IMPRES batteries with the Self-Calibration and Recondition icon on the battery label, do not require periodic calibration and recondition, when docked into this IMPRES charger. 2.4.1 Terminating Calibration and Recondition Manually You can manually terminate calibration and recondition during the process. - Page 12 MN007272A01-AA Chapter 2 : IMPRES Batteries and Chargers Normal usage of the batteries reduces the available capacity. After a successful completion of calibration and recondition, IMPRES charger compares IMPRES battery capacity to the battery rated capacity. When the capacity is at a low value, the IMPRES battery may be nearing its end of service.
-
Page 13: Chapter 3: Troubleshooting
40 °C (104 °F) or the battery voltage may be lower than the predetermined threshold level for rapid charg- ing. Service The IMPRES Adaptive Chargers are not repairable. Order replacement chargers as necessary from your local Motorola Solutions Sales Representative. -
Page 14: Chapter 4: Authorized Power Supplies And Batteries
MN007272A01-AA Chapter 4 : Authorized Power Supplies and Batteries Chapter 4 Authorized Power Supplies and Batteries This section list out authorized accessories to be used with your charger. Compatible Power Supplies Table 3: Compatible Power Supplies Power Supply Power Supply Description Country Plug 25009297001 14 W, 120 VAC... -
Page 15: Chapter 5: Motorola Solutions Authorized Batteries
MN007272A01-AA Motorola Solutions Authorized Batteries Chapter 5 Motorola Solutions Authorized Batteries Table 4: Motorola Solutions Authorized Batteries Battery Chemistry Battery Description NNTN4321_ Li-Ion IMPRES Li-Ion IECEX IP67 2000T NNTN7789_ Li-Ion IMPRES Li-Ion IECEX IP67 1900T NNTN8128_ Li-Ion IMPRES Li-Ion IP67 2000T... - Page 16 MN007272A01-AA Chapter 5 : Motorola Solutions Authorized Batteries Battery Chemistry Battery Description PMNN4424_ Li-Ion IMPRES Li-Ion IP68 2350T PMNN4448_ Li-Ion IMPRES Li-Ion IP68 2800T PMNN4463_ Li-Ion BATT Li-Ion IP68 2000M PMNN4488_ Li-Ion IMPRES Li-Ion HE DENS IP68 3000T (VIB BELT CLIP)
- Page 17 MN007272A01-AA Chapter 5 : Motorola Solutions Authorized Batteries Battery Chemistry Battery Description PMNN4069AW Li-Ion IMPRESS Li-Ion 1400MAH FM NNTN8305AR Li-Ion IMPRES Li-Ion 1300T...
