Control by Flight Controllers (Smartaudio)
Using any Smart Audio V2.1 compatible flight controller simply connect the Smart Audio data pin to a free
and supported port on your FC (see pinout below).
For Betaflight users, you can then configure the connected port in Betaflight configurator to Smart Audio
V2.1 protocol. Ideally you make sure to get a Betaflight firmware which supports the new SA2.1 (Betaflight
>=V3.5.6) rather than the older SA2.0. This way you get access to the new power levels of SA2.1.
If you use BF 4.xx or later, you need to add the VTX table. You can download the VTX tables for all TBS
UNIFY VTXs
here
.
Control by Crossfire/ Tracer direct connection
Your TBS Crossfire/ Tracer can control your TBS Unify Pro32 directly without the need for a FC. This is
helpful when you don't have a FC in your aircraft, got no free UART left or just don't want to control the
Unify32 without any extra setup required.
For details on how the Crossfire/ Tracer can be set up, visit the
Crossfire/Tracer connection using Smartaudio
You can connect your Unify Pro32 to any Crossfire/ Tracer receiver. The VTX will then be controlled by the
Agent Lite by the My VTX menu or in the VTX menu of the receiver:
Set the Unify to Smartaudio by the button
Select a free output pin capable for SA
Connect them (Crossfire/ Tracer SA TX to VTX RX/ SmartAudio pad) Crossfire/Tracer connection
using Smartaudio
Now you can control your Unify by the My VTX menu or by the VTX menu of the receiver by Agent Lite etc.


Crossfire manual

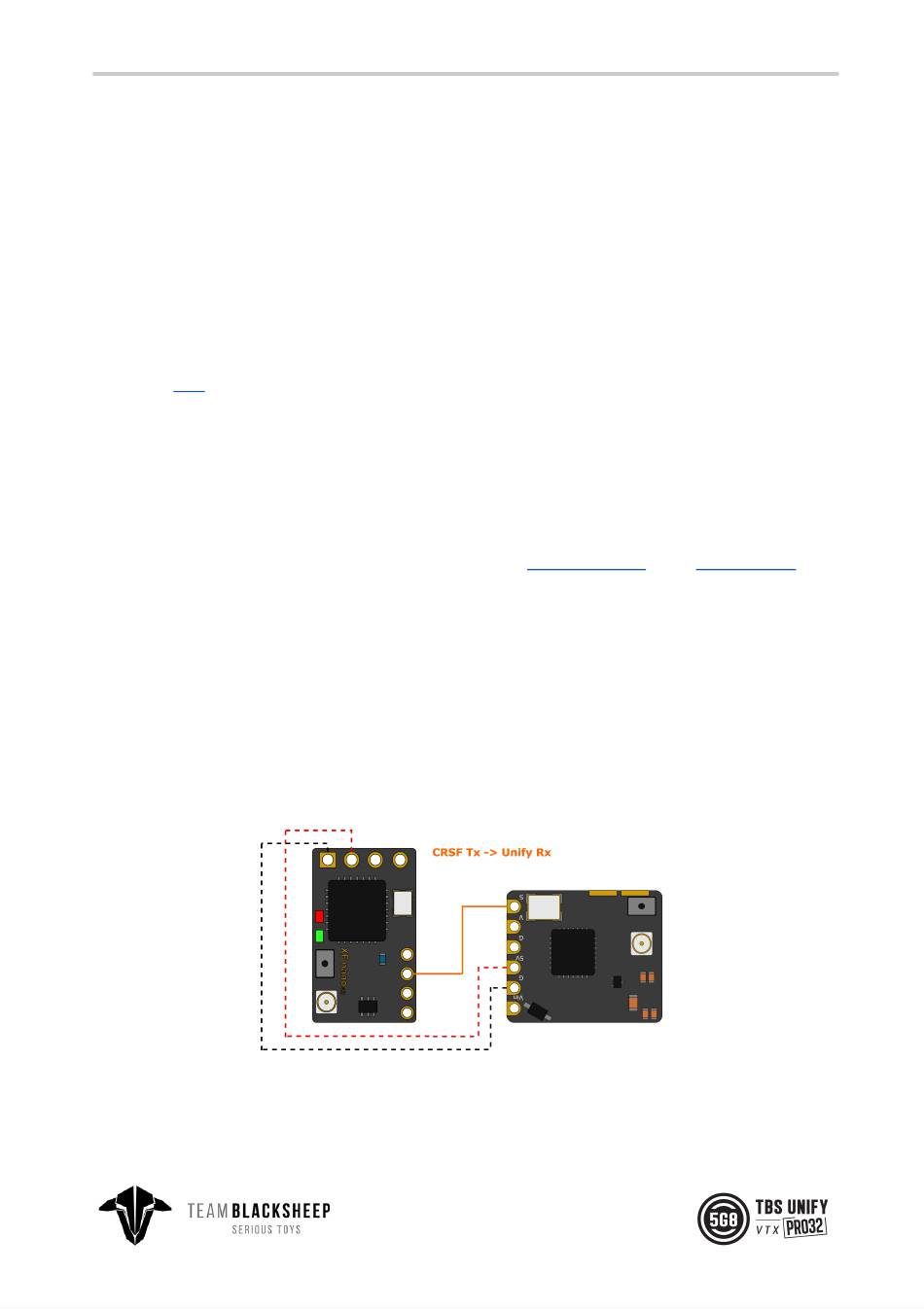

Wiring example
12
or the
Tracer manual
.
