Installation / Mounting
When installing the Unify Pro32, please ensure adequate airflow and - most importantly - heat transfer.
This means mounting the Unify Pro32 with a bit of pressure against a flat piece of carbon will give you the
best results. Make sure to isolate the contacts of the Unify against the carbon to avoid short circuits.
Proper mounting will allow the video transmitter to run for extended periods of time while sitting on the
ground and without reducing output power. TBS UNIFY PRO32 automatically reduces output power before
it reaches critical heat levels.

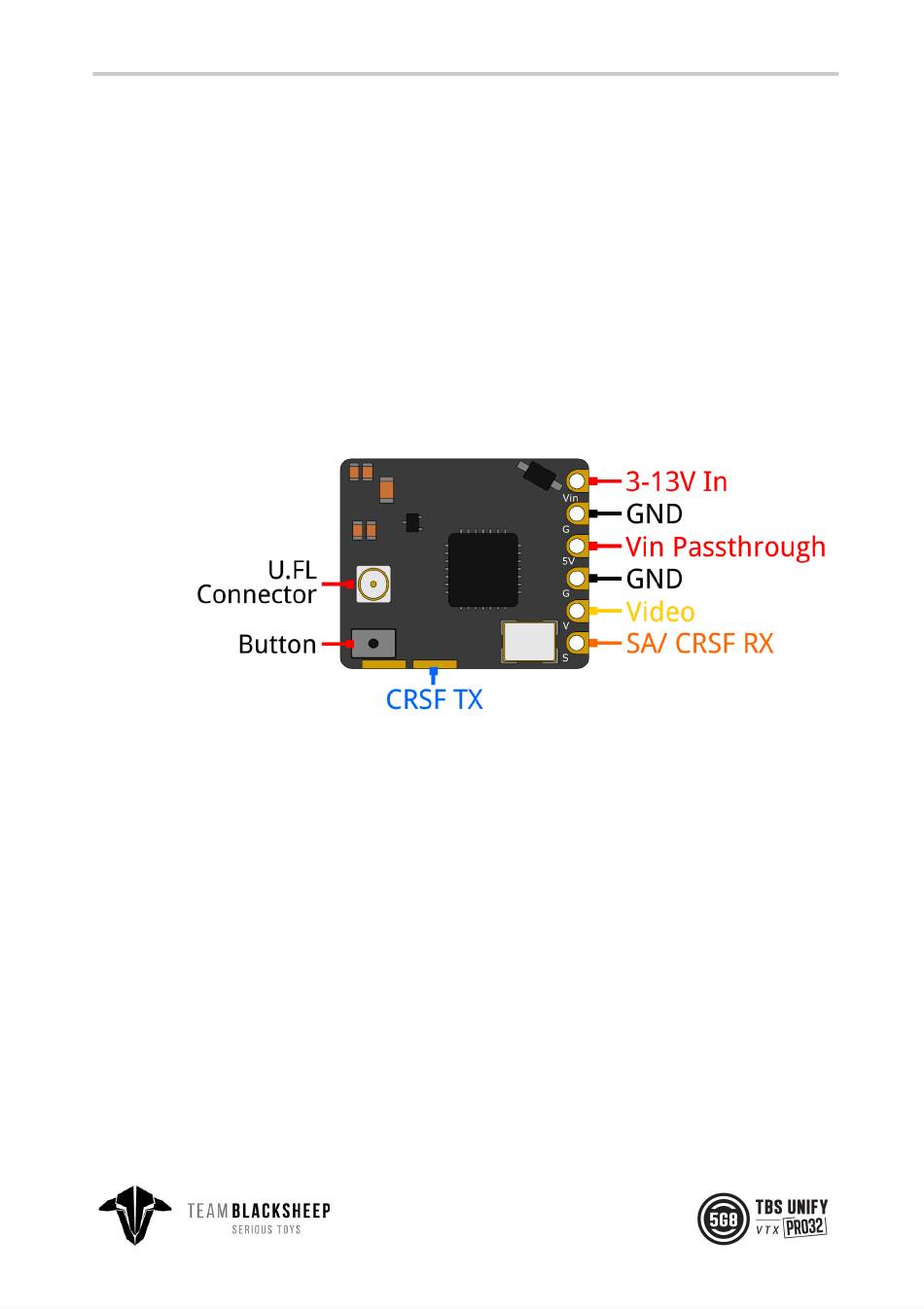

Pinout
TBS UNIFY PRO32 5G8 nano
The UNIFY PRO32 5G8 Nano comes with pre installed silicon wires for easy installation in your build. There
is a filtered 3-13V input with a pass through output for your camera or other devices.
ATTENTION!
● Please take care when soldering to the tabs, do not solder with temperatures higher than 350°C
for more than 3-5sec.
For remote control of the VTX channels we suggest using SmartAudio or CRSF interface. The tactile
●
button is very fragile, do not use hard and pointy objects such as needles to change channels to
prevent permanent damage to the button.
● If you plan to use the VTX on 13v make sure to use a proper filtering as any voltage spike will
damage it.
