ADTRAN P/N 1204011L1 Installation Information

I I
NSTALLATION NFORMATION
• An 8-pin Telco jack, a control port, a captive power cord and a power
switch are also located on the rear panel. See Rear Panel in Chapter 3,
of the DSU IV ESP User Manual for more information.
• The rear panel contains two DTE connectors which provide V.35 or
EIA-232 interfaces. The configuration settings are found in Chapter 6 of
the DSU IV ESP User Manual.
• The DSU IV ESP rear panel has two card slots for the installation of dial
backup and ethernet cards. See DBU and Ethernet Card Slots in
Chapter 3 of the DSU IV ESP User Manual for instructions on inserting
these cards.
• Pinouts for connectors are listed in Appendix A, Pinouts, in the DSU IV
ESP User Manual.
• Additional specific information can be found on the product CD which
contains the DSU IV ESP User Manual, FAQs, Data Sheets,
Applications, and White Papers.
Quick Start Guide, 61204011L1-13A, June 2001
DSU IV ESP DATA SERVICE UNIT
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
VT 100 Terminal or device running
SLIP or async PPP protocol.
10BaseT
LAN Card

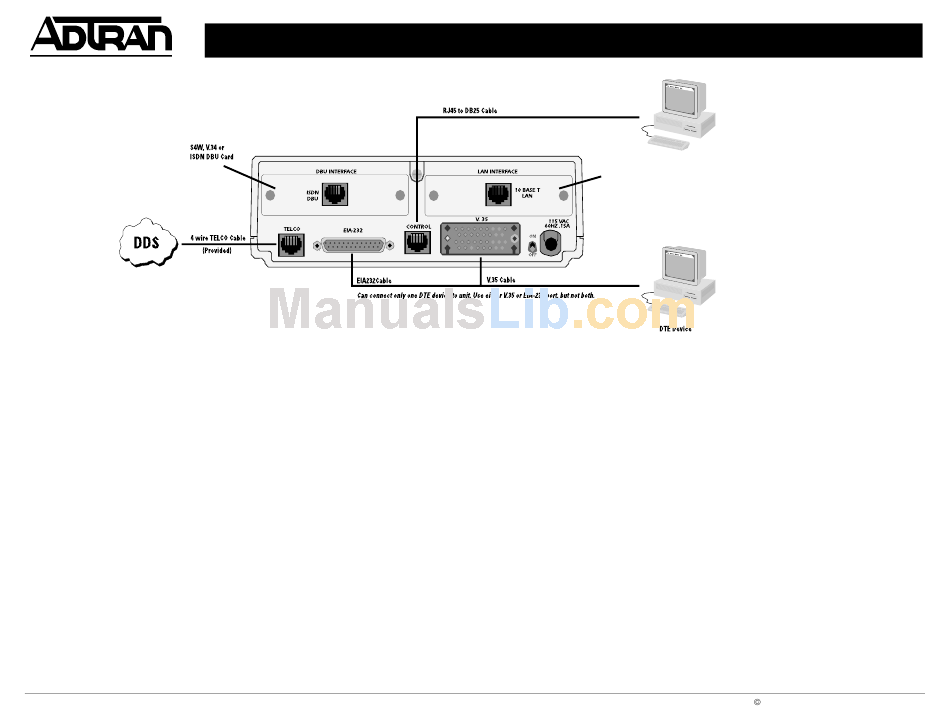

R P D
EAR ANEL ESCRIPTIONS
DBU Interface ESP DBU card slot
LAN Interface ESP Ethernet card slot
Telco Connection Connection to dedicated circuit (DDS network)
EIA-232 Connector Connection to a DTE interface
Connection to a VT 100 terminal or a device
Control
running SLIP or async PPP protocol
V.35 Connector High-speed DTE interface
Power Switch Turns power on or off
115 VAC Connection Power cord connection
www.adtran.com
P/N 1204011L1
Copyright 2001 ADTRAN, All Rights Reserved
