Balboa BP6013G1 Installation And Directions Of Use

Hide thumbs

Advertisement

Quick Links

EN
SPAS
Installation and Directions of Use

Advertisement

loading

Related Manuals for Balboa BP6013G1

Summary of Contents for Balboa BP6013G1

  • Page 1 SPAS Installation and Directions of Use...

  • Page 2: Table Of Contents

    Content I、 Warning ……………………………..………………page2 II、 Control system usage instructions …………………page3 III、 Brief Introduction of All SPA Models…………...…page30 IV、 Description on Using Parts……………………….…page31 V、 Description on Installation………………….….……page34 VI、 Care and Maintenance…………………..………..…page36 VII、 Instructions on Maintenance……………..…………page37 VIII、 Troubleshooting………………………………………page37 IX、 Warranty process……………………………………page38 FR : SAV/INFORMATION /VIDEO/CONTACT EN: AFTER-SALES SERVICE/INFORMATION/VIDEO/CONTACT DE : REPARATUR-SERVICE UND ERSATZTEILE /INFORMATIONEN /VIDEO/KONTAKT ES: SERVICIO POST-VENTA/INFORMACIÓN/VIDEO/CONTACTO...

  • Page 3: Warning

    19、When filling in water, water should be 1cm over the probe screw when installed China control system, and water 1cm over all the jets when installed Balboa system. 20、No water or water level doesn't reach the probe screw or over all the jets, do not operate the spa.

  • Page 4: Control System Usage Instructions

    Ⅱ、Control system usage instructions (II-1)、BP6013G1/G2/G3 Balboa Control System （TP600 /TP400 control panel) TP600 control panel TP400 control panel TP400/600 Quick Reference Card Start Up When the GFCI for the spa is switched on to supply power, a startup sequence of numbers will appear on the display.
  • Page 5 Download complete User Interface Programming Guide http://service.balboa- instruments.com/zz40940_download.zip User Interface and Programming Reference – Standard Menus System Model: BP-Series Systems are BP5XX, BP6XX, BP1XXX, BP2XXX. Software Version: 7.0 and later Panel Model: TP600 Series TP400 Series Software Version: 2.3 or later 2.4 or later 1.
  • Page 6 Fill it up Preparation and filling Fill the spa to its correct operating level. Be sure to open all valves and jets in the plumbing system before filling to allow as much air as possible to escape from the plumbing and the control system during the filling process. After turning the power on at the main power panel, the top-side panel will display a splash, or startup screen.
  • Page 7 Priming the pump As soon as the Priming Mode screen appears on the panel, select the “Jets 1” button once to start Pump 1 in low-speed and then again to switch to high-speed. Also, select the other pumps, to turn them on. The pumps should be running in high-speed to facilitate priming.
  • Page 8 Filtration and Ozone On non-circ systems, Pump 1 low and the ozone generator will run during filtration. On circ systems, the ozone will generally run with the circ pump, but can be limited to filtration cycles. The system is factory-programmed with one filter cycle that will run in the evening (assuming the time-of-day is properly set) when energy rates are often lower.
  • Page 9 (4)Mode–Ready and Rest In order for the spa to heat, a pump needs to circulate water through the heater. The pump that performs this function is known as the “heater pump”. The heater pump can be either a 2-Speed Pump 1 or a circulation pump. If the heater pump is a 2-Speed Pump 1, READY Mode will circulate water every 1/2 hour, using Pump 1 Low, in order to maintain a constant water temperature, heat as needed, and refresh the temperature display.
  • Page 10 Ready-in-Rest Mode READY/REST appears in the display if the spa is in Rest Mode and Jet 1 is pressed. It is assumed that the spa is being used and will heat to set temperature. While Pump 1 High can be turned on and off, Pump 1 Low will run until set temperature is reached, or 1 hour has passed.
  • Page 11 Note: If power is interrupted to the system, Time-of-Day is not stored. The system will still operate and all other user settings will be stored. If filter cycles are required to run at a particular time of day, resetting the clock will return the filter times to the actual programmed periods.
  • Page 12 (7)Unlocking This unlock sequence may be used from any screen that may be display on a restricted panel. Main Screen A Few Main Screen Secon While pressing and holding the Temperature Button (or UP button, if available), A Few Secon Slowly press and release the Light Button two times.
  • Page 13 (8)Adjusting Filtration Main Filtration Filter cycles are set using a start time and a duration. Start time is indicated by “A” or “P” in the bottom right corner of the display.Duration has no “A” or “P” indication.Each seting can be adjusted in 1-hour increments. The panel calcualates the end time and display it actomatically.
  • Page 14 Filter Cycle 2 - Optional Filtration Filter Cycle 2 is OFF by default It is posibble to overlap Filter Cycle 1 and Filter Cycle 2,which will shorten overfall filtration by the overlap amount. Purge Cycles In order to maintain sanitary conditions, secondary Pumps and/or a Blower will purge water from their respective plumbing by running briefly at the beginning of each filter cycle.
  • Page 15 10)Utilities-Fault Log Preferences F / C (Temp Display) Change the temperature between Fahrenheit and Celsius. 12 / 24 (Time Display) Change the clock between 12 hr and 24 hr display. RE-MIN-DERS (Reminders) Turn the reminder messages (like “Clean Filter”) On or Off. CLN-UP (Cleanup) Cleanup Cycle Duration is not always enabled, so it may not appear.
  • Page 16 (This message may not appear depending on the configuration) When set to 0, no addressing is used. Use this setting for a Dolphin Remote which is factory set for no address by default. When set between 1 and 7, the number is the address. (See the Dolphin manual for details.) (10)Utilities and Information INFO (System Information sub-menu) The System Information Menu displays various settings and identification of the particular system.
  • Page 17 SIG (Configuration Signature) Displays the checksum for the system configuration file. Heater Voltage (Feature not used on CE rated systems.) Displays the operating voltage configured for the heater. Heater Wattage as Configured in Software (CE Systems Only.) Displays a heater kilowatt rating as programmed into the control system software (1-3 or 3-6). H _ (Heater Type) Displays a heater type ID number.
  • Page 18 Utilities - 17 -...
  • Page 19 Utilities – GFCI Test Feature Not Available on CE Rated Systems. A GFCI is an important safety device and is required equipment on a hot tub installation. Your spa may be equipped with a GFCI Protection feature. (UL rated systems only.) If your spa has this feature enabled by the manufacturer, the GFCI Trip Test must occur to allow proper spa function.
  • Page 20 Warning: If freezing conditions exist, a GFCI should be reset immediately or spa damage could result. The end user should always trained to test and reset the GFCI on a regular basis. Utilities – Fault Log A Little History can tell a lot The Fault Log stores up to 24 events in memory and they can be reviewed under the Fault Log Menu.
  • Page 21 Priming Mode – M019 Each time the spa is powered up, it will enter Priming Mode. The purpose of Priming Mode is to allow the user to run each pump and manually verify that the pumps are primed (air is purged) and water is flowing. This typically requires observing the output of each pump separately, and is generally not possible in normal operation.
  • Page 22 (11) Heater-Related Messages Heater Flow is Reduced (HFL) – M016 There may not be enough water flow through the heater to carry the heat away from the heating element. Heater start up will begin again after about 1 min. See “Flow Related Checks” below. Heater Flow is Reduced (LF)* –...
  • Page 23 (12) Sensor-Related Messages (13) Miscellaneous Messages * This message can be reset from the topside panel with any button press. - 22 -...
  • Page 24 (14) System-Related Messages * This message can be reset from the topside panel with any button press. - 23 -...
  • Page 25 (15)Reminder Messages General maintenance helps. Reminder Messages can be suppressed by using the PREF Menu. See Page 11. Reminder Messages can be chosen individually by the Manufacturer. They may be disabled entirely, or there may be a limited number of reminders on a specific model. The frequency of each reminder (i.e.
  • Page 26 (16) Reminder Messages Continued (17) Warning! Qualified Technician Required for Service and Installation Basic Installation and Configuration Guidelines Use minimum 6AWG copper conductors only. Torque field connections between 21 and 23 in lbs. Readily accessible disconnecting means to be provided at time of installation. Permanently connected.
  • Page 27 Warning: People with infectious diseases should not use a spa or hot tub. Warning: To avoid injury, exercise care when entering or exiting the spa or hot tub. Warning: Do not use a spa or hot tub immediately following strenuous exercise Warning: Prolonged immersion in a spa or hot tub may be injurious to your health Warning:...
  • Page 28 - 27 -...
  • Page 29 (II-2)、Control system :model GS100 & GS500 (VL260 control panel) GS100 Control System with VL260 Panel Non-Circ. Operation (1) Initial Start-up When your spa is first actuated, it will go into Priming mode, indicated by .The Priming mode will “ ” last for less than 5 minutes (press “Temp”...
  • Page 30 2) Economy Mode heats the spa to the set temperature only during filter cycles. “ ” will display solid when temperature is not current, and will alternate with temperature when temperature is current. 3) Sleep Mode heats the spa to within 20°F/10°C of the set temperature only during filter cycles. “ ”...
  • Page 31 A significant difference between Check water level in spa. Refill if necessary. If temperature sensors has been detected. the water level is okay, make sure the pumps This could indicate a flow problem. have been primed. If problem persists, contact your dealer or service organization.

  • Page 32: Description On Using Parts

    1).Functions of Spa : water force surf and massage, bubble bath, heating, filter, ozone disinfecting, Bluetooth player (optional), underwater lamp, computer control, plastic skirt etc. 2).Optional fittings: Spa insulation cover, ladder, spa body, insulation foam on bottom tub body or skirt hem, small leds from 20-40pieces, some of the models could be equipped with fountain and waterfall function, some could choose to install TV and DVD, some could choose to install aromatic perfume etc.
  • Page 33 B )●Thermostat: 1、normal starting up time is 4-8 hours 2、SPA Thermostat cannot be heated by man in the air, or there will be danger. If there is something wrong in operation, professional servant is indeed needed to prevent the risk of electricity. C )●Air pump: Normal starting up time is 15-30 minutes Please notice that water level should not be 7cm over the tub water level to prevent air pump being burnout...
  • Page 34 2) Repeatedly Clean the core paper filter with water. 3) Put the core paper filter back to use after dry out. 4) Change the core paper filter half a year once, depends on the high quality of water, lifetime of paper filter can be properly extended.

  • Page 35: Description On Installation

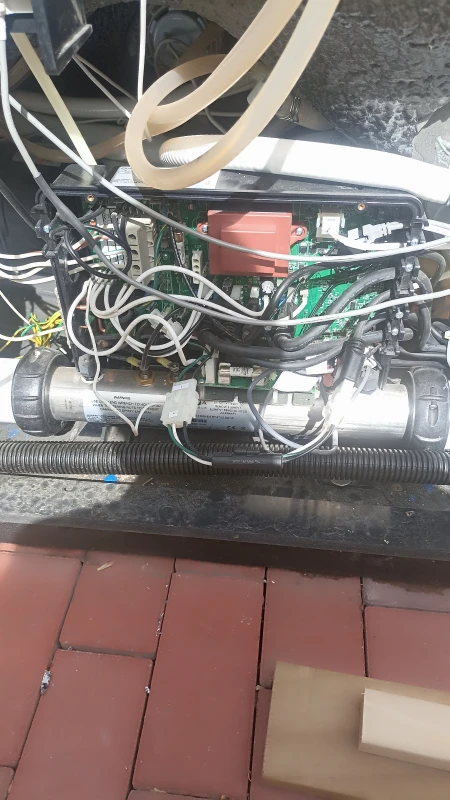

    5*6mm for big swimming SPA. 2) 1 inch soft pipe for connecting the drain of SPA is needed before installation. Power cord of SPA 1）Balboa control system (BP6013G1&BP6013G2&BP6013G3） Panels TP400 panel TP600 panel...
  • Page 36 Diagram of 220V-230V (L/N/E) Diagram of 380V (L/N/E) 2) control system (GS100 /GS500） Panels VL260D panel Electric box GS500Z - 35 -...

  • Page 37: Care And Maintenance

    (L/N/E) Notice： 1、If your spa uses BALBOA BP6013 electronic control system, 230 V input power is confirmed with the supplier, please do not connect with 380V input power and 380V input power wiring connection diagram is not available while installation, and vice-versa.Attention, we are not responsible for any loss in any fault in Buyer’s operation.

  • Page 38: Instructions On Maintenance

    8). Make frequent checks on the electrical wires, buttons, connectors always to see if they are bitten by rats or worms. 9). Make frequent checks on the feed pipe and drain pipe always to see if there is some parts broken or bended make sure it is smooth.

  • Page 39: Warranty Process

    IX. BALBOA CONTROL SYSTEM / SPA CONTROL SYSTEM WARRANTY PROCESS If a Balboa control system / SPA control system is found to be defective in the field, the RMA can be handled either through the OEM or through one of Balboa offices.
