Summary of Contents for Hoover HDPH 2D945W-86

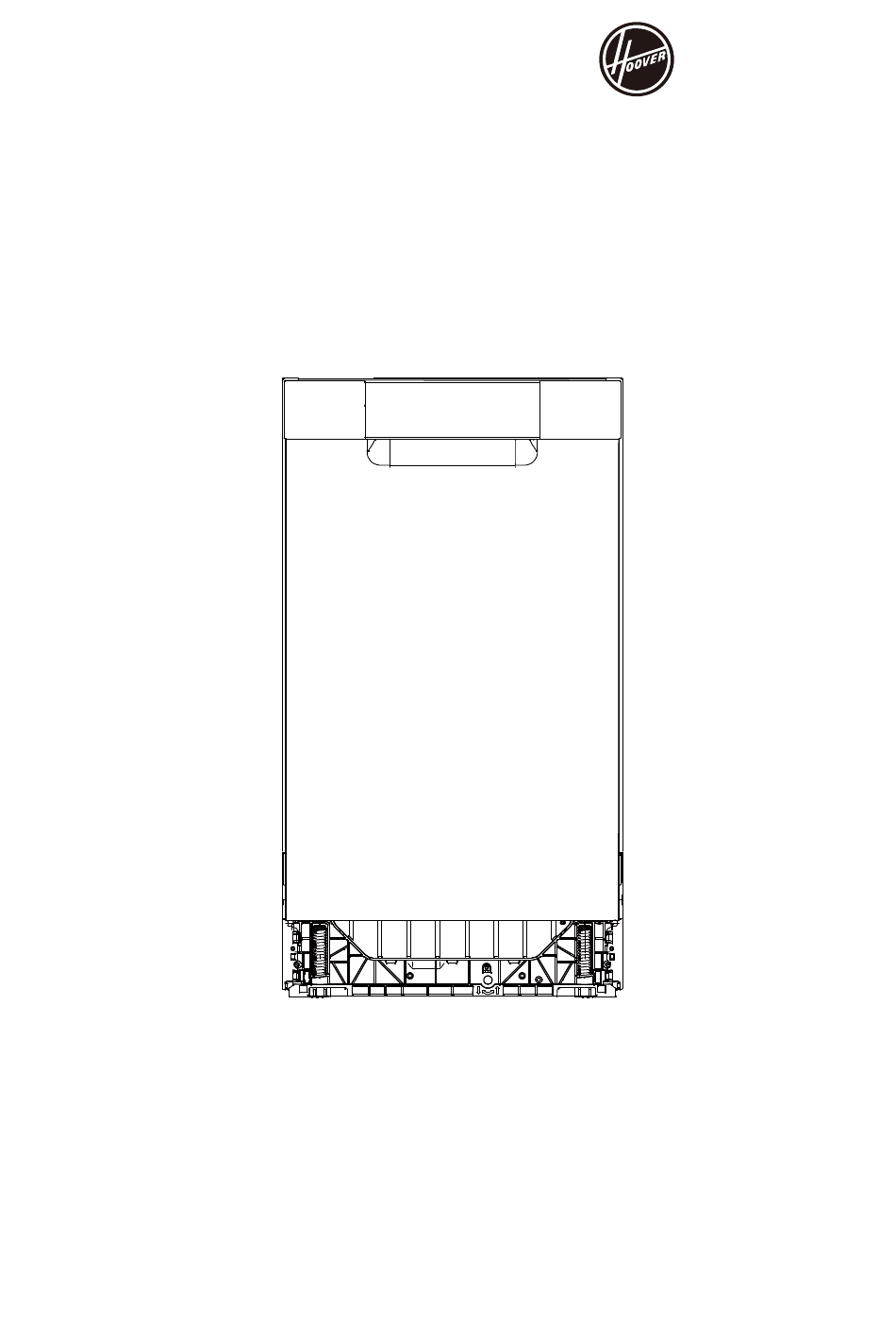

- Page 1 HOOVER User Manual Dishwasher HDPH 2D945W-86...
-
Page 2: Table Of Contents
Thank you for purchasing a Hoover product Please read t hese instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the ● appliance and ensure safe and proper installation, use and maintenance. -
Page 3: Safety And Warnings
Safety and warnings our dishwasher has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following instructions in mind when you ● are using your dishwasher. WARNING Electrical shock hazard Before installing the dishwasher, remove the house fuse or open the circuit breaker. This appliance must be earthed. - Page 4 Safety and warnings only detergents or rinse aid recommended for use in a domestic dishwasher and keep them out of reach of children. ● Check that the detergent dispenser is empty after the completion of each wash program. When loading items to be washed, locate sharp items so that they are not likely to damage the dishwasher and load sharp knives with the handle up to reduce the risk of cut-type injuries.
- Page 5 Safety and warnings Keep the area around/underneath your appliance free from the accumulation of combustible materials, such as lint, paper, rags and chemicals. ● Operational safety instructions Open the door very carefully if the dishwasher is in operation. There is a risk of being sprayed with hot water.
-
Page 6: Product Description
Product Description Upper basket Rating label Utensil tray Salt container 3. Upper spray arm Detergent dispenser Lower spray arm Rinse aid dispenser Lower basket Filters Cutlery bas k et... -
Page 7: Overview Of Programmes
Overview of programmes 1. ON / OFF button 7. Time & Info Display PROGRAMME SELECT button Speed Up function Indicator START DELAY button Dry function Indicator Additional function button Add dish Indicator Child Lock Lack Salt and Rinse Aid reset button START / RESET button Additional function button permit to activate Exp function or Multi-tab function. - Page 8 Overview of programmes Time & Info display During any selection the display shows by flashing related information like ► Programme cycle time ► Programme start delay time ► Error codes and service information After start of an operation it displays without flashing: ►...
- Page 9 Overview of programmes Programmes Programmes Type of food r esidue Type of load 50°C 298min Universal 60°C 115min Intensive 70°C 130min Prewash 45°C 20min Rapid 45°C 32min Special 45°C 72min Total Care 45°C 98min 1) Use this programme to quickly rinse the dishes. T his prevents the remaining food to bond on the dishes and bad odours to come out from the appliance.
-
Page 10: Water Softening System
Water softening system To ensure good washing results,the dishwasher requires soft water.Hard water can be detrimental to the performance of your dishwasher. Over time,glassware washed ● in hard water will become opaque and dishes will become spotted or covered in a white film. - Page 11 Water softening system Using special salt As soon as the low salt indicator is lit on the control panel ,salt should be topped up.Always refill with special salt immediately before switching on the appliance.This ● ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.
-
Page 12: Using Rinse Aid
Using rinse aid We highly recommend using liquid rinse aid regularly to get the best drying results.Rinse aid gives a streak-free, sparkling clean look to glass and chinaware. In addition, it prevents metal from tarnishing. When to refill the rinse aid dispenser When rinse aid level becomes low,the digtial will scrolling display RINSE AID to remind you to refill the dispensers. -
Page 13: Utensils
Utensils IMPORTANT! Never put highl y absorbent materials, such as sponges and towels in your dishwasher.Do not put dishes or cutlery that have been soiled by tobacco ● ash, wax, lubricating grease or paint in your dishwasher. Cutlery and silverware All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by some foods. -
Page 14: Loading Utensils
Loading utensils If the tableware or cookware rack is burnt, scorched,sticky, and other food which is very difficult to removed, it is advisable to soak it for a period of time before washing it or pre-dispose it with a dish cloth or else it will be hard to clean.Remove any large food particles before placing dishes in the dishwasher. - Page 15 Loading utensils To adjust the upper rack: IMPORTANT! Before you adjust its height,make sure the basket is empty. Remove: Replace: End Cap Rollers Rail Rail Rollers 1.Fully extend the upper rack and rotate open the two plastic end caps on the front of the rails.
- Page 16 Loading utensils Cutlery basket Mix spoons with other cutlery to prevent them to bond together. Use the grid element in order to separate the cutlery. Place Cutlery with handles down for better washing results. If long items may block the spray arms find a horizontal positioning upper...
-
Page 17: How To Make Savings
How to make savings Tips on how to save money and not damage the environment when using your appliance. Achieve the be st use of energy, water, detergent and time by using the recommende d maximum load size. Save up to 50% energy by washing a full ●... -
Page 18: Adding Detergent
Adding detergent IMPORTANT! Only use detergents recommended for automatic dishwashers. Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. A void contact with the skin and eyes and keep children and infirm persons awa y from the dishwasher when it is open. Check that the detergent ●... -
Page 19: Before First Use
Before first Use How to Adjust User Preference Settings During the selection of programmes, press and hold the program selection key for 5S to enter the user setting mode.User setting mode includes Language setting, Water Softener setting, Buzzer setting,Rinse Aid setting and Memo Mode setting. 1.The appliance is switched on. -
Page 20: Daily Use
Daily Use Start a Programme 1. Open the door and Press the ON/OFF button to turn the dishwasher on. 2. Press to select the program you want on the dishwasher control panel. 3. Press to start the programme and c lose the door. - Page 21 Daily Use Cancel a Delayed Start Press the reservation button again to cancel the reservation. Cancel Start Delay / Programme 1. Press the for about 3 secon The start delay is cancelled. ● The programme is aborted. 2. Start a new programme and a delayed start if desired. CAUTION If a programme will be aborted in the process of washing dishes, the residue of detergent remains on the dishes.
-
Page 22: Care And Cleaning
Care and cleaning Over time, food residue or limescale deposits may accumulate inside your dishwasher.These may reduce efficiency, and food residue may produce a bad odour. Inspect and clean your dishwasher regularly. IMPORTANT ! Before any cleaning or maintenance, always disconnect the dishwasher from the power supply, turn off the water supply, and wait until all parts of the dishwasher have cooled. - Page 23 Care and cleaning To remove the drain filter, turn the filter anti-clockwise to release, then lift out. Once the drain filter has been removed you can lift the filter plate out. Rinse them thoroughly under running water and then replace. Replace the filters correctly after cleaning, making sure the filter plate is flush with the dishwasher base.
- Page 24 Care and cleaning Cleaning the centre spray arm To remove the centre spray arm, carefully unscrew its locking nut. Rinse the spray arm thoroughly under running water, then refit. IMPORTANT ! Make sure you twist the locking nut on the centre spray arm firmly back on the water supply tube.Check that the centre spray arm is firmly locked in place and rotates freely.
-
Page 25: Troubleshooting
Troubleshooting Many occuring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. CAUTION Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. - Page 26 Troubleshooting Error codes on the display Problem Possible cause Possible solution Open the water tap. Note: Whenever Error is Water tap is closed. s o l v e d s w i t c h o f f t h e appliance and restart the programm.
- Page 27 Troubleshooting Washing Results are not satisfactory Problem Possible caus Possible solution ● Filters are clogged. Clean the filters. Make sure that the filters F i l te r s a r e n o t c o r r e c tl y are correctly assembled and assembled and installed.
- Page 28 Troubleshooting Problem Possible caus Possible solution ● Increase the released quantity Rinse aid dosage is too low. Dry water drop of rinse aid. stains on glasses Q u a l i t y o f r i n s e a i d o r Cleaning product too old;...
-
Page 29: Technical Data
Technical Data Product fiche (according EU 1059/2010) Hoover Suppliers name or trade mark Supplier s model identifier HDPH 2D945W-86 Rated capacity in standard -place settings Energy efficiency class 1) Annual energy consumption (AEc) in kWh/year 2) Energy consumption (Et) of the 0.70...
Need help?
Do you have a question about the HDPH 2D945W-86 and is the answer not in the manual?
Questions and answers
Maintenance filter
To maintain the Hoover HDPH 2D945W-86 filter:
1. Remove the filters and rinse them thoroughly under running water.
2. Clean the underside of the filter plate carefully, as it has a sharp outer edge.
3. After cleaning, replace the filters correctly, making sure the filter plate is flush with the dishwasher base.
