Bradley S19-210SC Installation

Pedestal-mounted stainless steel eyewash with dust cover

215-155SC Rev. L; EN 06-532D

Page 1 of 5

6/20/07

S19-210SC

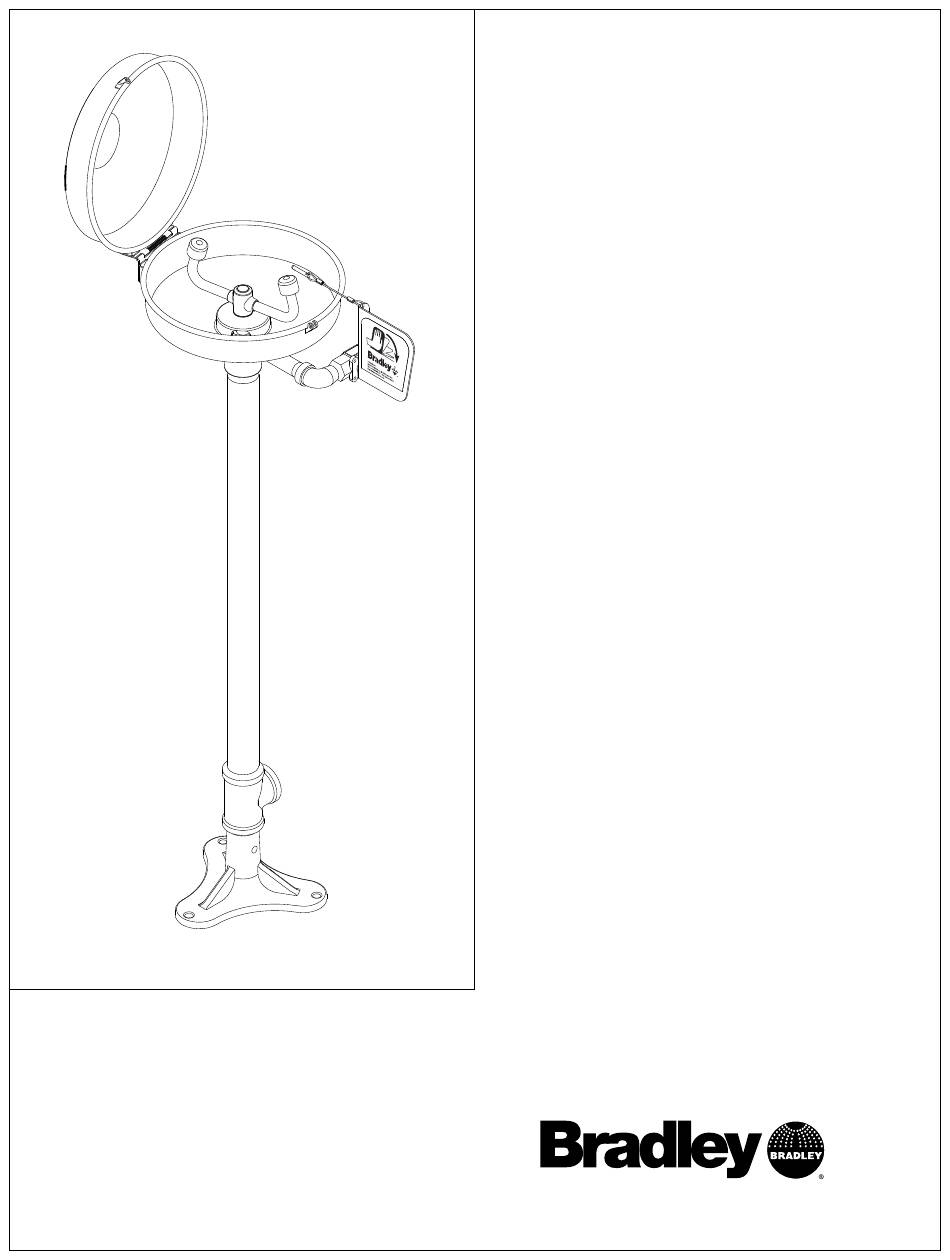

Pedestal-Mounted Stainless

Steel Eyewash with Dust Cover

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . .2

Installation Instructions . . . . . . . . . . . . . . . . . . .3

Assembly Of Components . . . . . . . . . . . . . . . . .4

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

P.O. Box 309, Menomonee Falls, WI USA 53052-0309

PHONE 1-800-BRADLEY FAX (262) 251-5817

http://www.bradleycorp.com

Table of Contents

Need help?

Do you have a question about the S19-210SC and is the answer not in the manual?

Page 1 Parts List .......5 215-155SC Rev. L; EN 06-532D P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2007 Bradley Corporation PHONE 1-800-BRADLEY FAX (262) 251-5817 Page 1 of 5 6/20/07 http://www.bradleycorp.com...
Page 2 114-051 For questions regarding the operation or installation of this product, visit www.bradleycorp.com or call 1-800-BRADLEY. Product warranties may also be found under ”Product Information” on our web site at www.bradleycorp.com. 6/20/07 Bradley Corporation • 215-155SC Rev. L; EN 06-532D...
Page 3 2. Connect the drain piping (supplied by installer) to the 1-1/4" IPS drain outlet on the eyewash. 3. Mount the safety sign to the wall using sign-mounting hardware (supplied by installer). 4. Open the water supply lines. Test for leaks and adequate water flow. Bradley Corporation • 215-155SC Rev. L; EN 06-532D 6/20/07...
Page 4 Date Signed Date Signed Datum Unterschrift Date Signed Date Signe Date Signed NOTE: Items 4.1–4.12 come preassembled as Item 4. Figure 2 Items 8.1–8.5 come preassembled as Item 8. 6/20/07 Bradley Corporation • 215-155SC Rev. L; EN 06-532D...
Page 5 Safety Sign 113-1159 Spacer, Drain 204-421 Emergency Inspection Tag S05-131 Eyewash Yoke 269-915 Grip Pad (not shown) 115-141 Sprayhead 142-002DA Washer 153-333 Pipe Plug Prepack S45-1787 includes Items 4.2, 4.4, 4.5, 4.6 Bradley Corporation • 215-155SC Rev. L; EN 06-532D 6/20/07...
