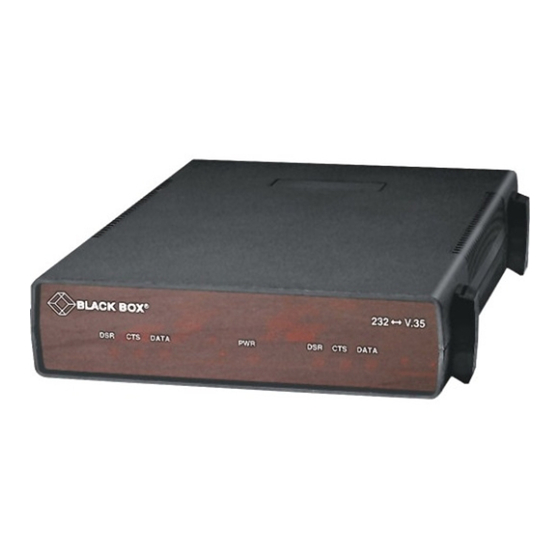

V.35 Interface Converters
Match up your V.35 and RS-232/V.24 or RS-422
Match up your V.35 and RS-232/V.24 or RS-422
equipment—just add a V.35 Interface Converter!
equipment—just add a V.35 Interface Converter!
Advertisement
Related Manuals for Black Box IC221A-R3
Summary of Contents for Black Box IC221A-R3

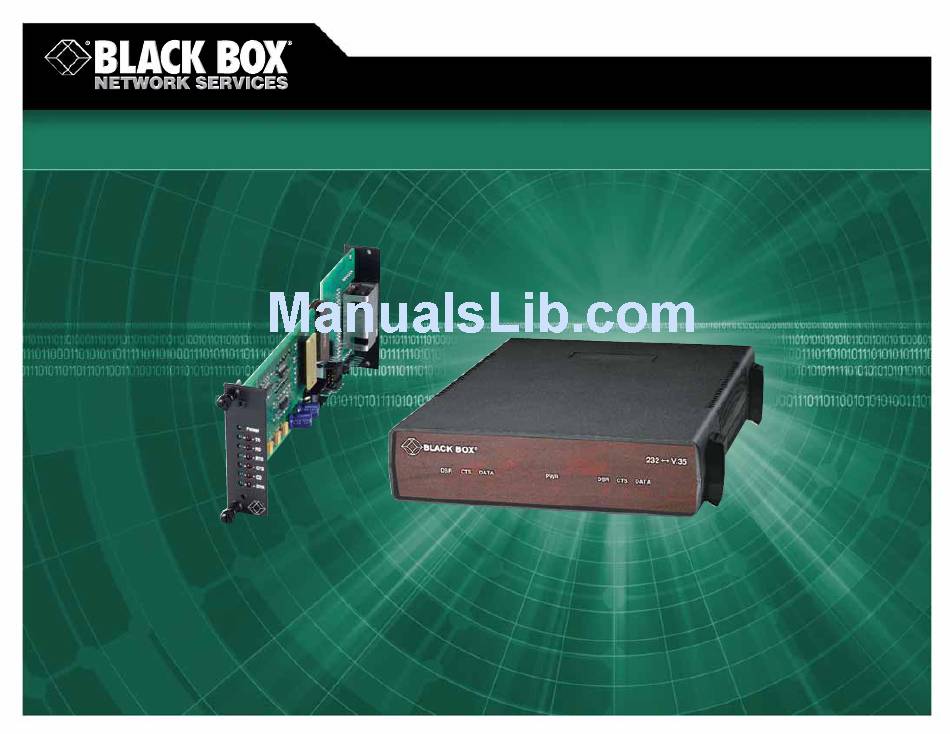

- Page 1 FREE 24-hour Tech Support: 724-746-5500 blackbox.com © 2007. All rights reserved. Black Box Corporation. V.35 Interface Converters Match up your V.35 and RS-232/V.24 or RS-422 Match up your V.35 and RS-232/V.24 or RS-422 equipment—just add a V.35 Interface Converter! equipment—just add a V.35 Interface Converter!
- Page 2 ® (DTE) OVERVIEW RS-232, RS-422, and V.24 interfaces are incompatible with V.35, aren’t they? Not when you use a Black Box V.35 Interface Converter. Choose from two standalone, two rackmount card, and four micro models. These converters are bidirectional data converters, DCE or DTE switch-selectable on each end, and transparent to speed and protocol.
- Page 3 Connectors — RS-232: DB25 male; V.35: (1) 34-pin female “M” block Power — 115 VAC, 60 Hz, 13 watts (230-VAC model available on request) Size — IC221A-R3: 2.1"H x 8.8"W x 11.5"D (5.3 x 22.4 x 29.2 cm); IC221C-R3: 1.2"H x 7.5"W x 10.5"D (3 x 19.1 x 26.7 cm) Weight —...
