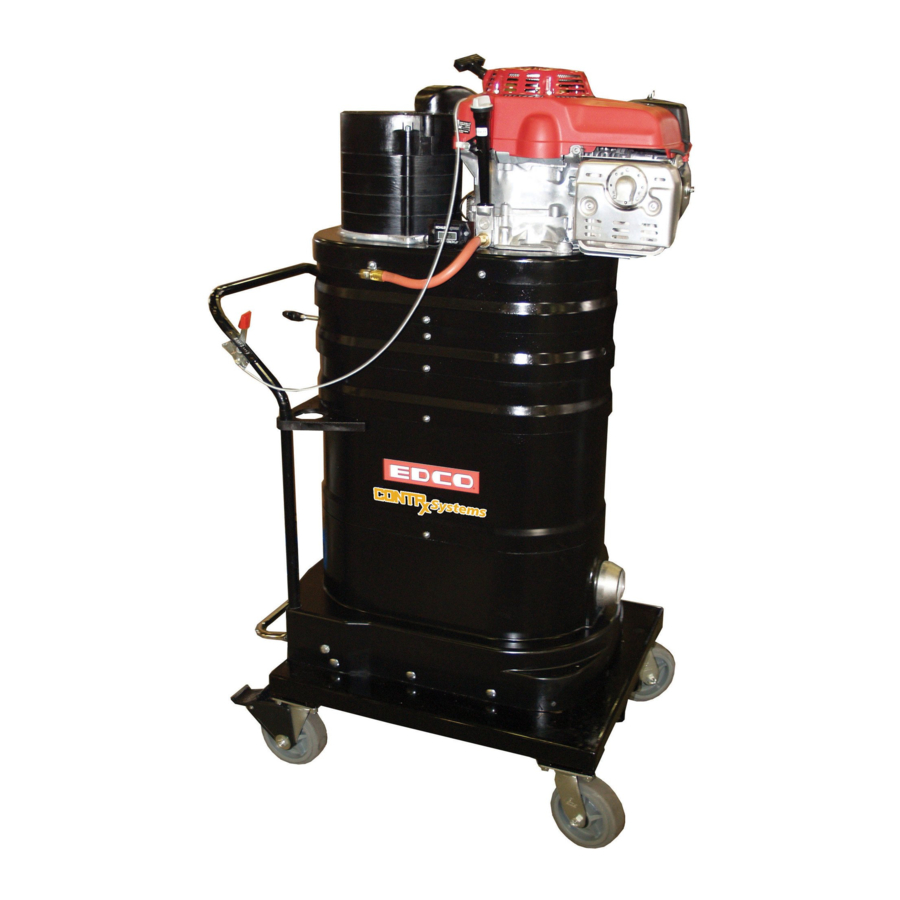

- Page 1 E-VAC300-PL-0218 REVISED STARTING SERIAL #18020182 PARTS LIST MANUAL VAC-300 300 CFM GASOLINE HEPA MAX VACUUM PART # MODEL # POWER OPTION ED33725HK GV10 HONDA 10 HP GASOLINE ENGINE www.discount-equipment.com...
- Page 2 Wacker, Sakai, Snorkel, Upright, Mi-T-M, Sullair, Neal, Basic, Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Blaw-Knox, Himoinsa, Best, Buddy, Crown, Edco, Wyco, Bomag, Laymor, Terremite, Barreto, EZ Trench, Takeuchi, Basic, Bil- Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump,...
-
Page 3: Safety Messages And General Instructions
E-VAC300-PL-0218 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY MESSAGES the plug, not the cord. -
Page 4: Table Of Contents
HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW To insure product safety and reliability, always use genuine EDCO replacement parts when making Date of Purchase ______________________________ repairs to the equipment. When calling for parts, specify the MODEL and ... -
Page 5: Illustration 1: Engine Deck Assembly
E-VAC300-PL-0218 ILLUSTRATION 1: ENGINE DECK ASSEMBLY 23 25 28 Printed in USA ©2018 Page 4... - Page 6 E-VAC300-PL-0218 PARTS LISTING - ILLUSTRATION 1: ENGINE DECK ASSEMBLY ITEM # PART # DESCRIPTION QTY. ED90228005 ENGINE DECK, GV10, DS1 BLACK ED2501309 ENGINE, HONDA 10HP GASOLINE ED22221 TURBINE, NTB 5S/12/48,4.0 KW ED32856 EXHAUST DEFLECTOR, TURBINE ED33057 PULLEY, 48MM, 10 GROOVE, POLY-V ED35014 BELT, 330J, 10 GROOVE, POLY-V ED330501...
-
Page 7: Illustration 2: Hepa Max Filter Assembly
E-VAC300-PL-0218 ILLUSTRATION 2: HEPA MAX FILTER ASSEMBLY PART # ED35193 Printed in USA ©2018 Page 6... - Page 8 E-VAC300-PL-0218 PARTS LISTING - ILLUSTRATION 2: HEPA MAX FILTER ASSEMBLY ITEM # PART # DESCRIPTION QTY. ED32835001 LRG. HOUSING SPACER, D1-WS, HEPA, BLACK ED34947 HEPA ADAPTER PLATE, DS1 ED35211 HEPA FILTER 40 SQ FOOT, WS, DS1 ED34949 HEPA HOLD DOWN BRACKET, WS ED25143 MINIHELIC, WITH MTG BRKT 10”WC ED25149...
-
Page 9: Illustration 3: 2.6M Filter & Manual Shaker Assembly
E-VAC300-PL-0218 ILLUSTRATION 3: 2.6M FILTER & MANUAL SHAKER ASSEMBLY DETAIL A DETAIL B Printed in USA ©2018 Page 8... - Page 10 E-VAC300-PL-0218 PARTS LISTING - ILLUSTRATION 3: 2.6M FILTER & MANUAL SHAKER ASSEMBLY ITEM # PART # DESCRIPTION QTY. ED32834003 HOUSING SPACER, D1, SMALL, BLACK, NO HBAR BRKT HOLES ED32834004 HOUSING SPACER,D1,PORT,SMALL,BLACK ED32835002 HOUSING SPACER, D1, LRG, BLACK, HANDLE SUPPORT HOLES ED30091 FILTER, 28 SQ/FT, 2.6M ED34807...
-
Page 11: Illustration 4: Base Assembly
E-VAC300-PL-0218 ILLUSTRATION 4: BASE ASSEMBLY DUSTPAN GASKET #ED2509865 ED3487KIT ED3487KIT ED3487KIT Printed in USA ©2018 Page 10... - Page 12 E-VAC300-PL-0218 PARTS LISTING - ILLUSTRATION 4: BASE ASSEMBLY ITEM # PART # DESCRIPTION QTY. ED302120A CASTER FRAME HD ED30210C CASTER, 6IN, SWIVEL, NO BRK, EX ED37506 NUT, LOCK 3/8-16 ED31205 FLAT WASHER, 5/16”, ZINC ED30213C CASTER 6” RIGID W/ BRAKE ED32836004 LOWER HOUSING BASE, D1, BLK ED30007A...
-
Page 13: Illustration 5: Dustpan Assembly
E-VAC300-PL-0218 ILLUSTRATION 5: DUSTPAN ASSEMBLY ITEM # PART # DESCRIPTION QTY. ED3283701 DUST PAN, 35 LITER, BLACK ED30199 CASTER, 3IN X 1.25IN, GREY, CONDUCTIVE EDHW4076A02 WASHER 3/8” D-SHAPED ED37501 WASHER,SPLIT LOCK,3/8”, ZINC ED37502 HEX NUT, 3/8-16 ED21658-28 HANDLE, BLACK, 2X6MM, CUT AT A 28 ED21464 SCREW, SOC BH, FLNGD, M6 X 30 ED34819... -
Page 14: Illustration 6: Dustpan Lever Assembly
ILLUSTRATION 6: DUSTPAN LEVER ASSEMBLY E-VAC300-PL-0218 ITEM # PART # DESCRIPTION QTY. ED20010 FOOT LEVER, D1 ED34812 SPACER FOR FOOT LEVER ED20044 NUT, HEX M8-8, DIN 934, ZINC ED34882 WASHER, FLAT/THIN M8 ZINC ED25061 WASHER, FLAT, M8, DIN125, ZINC ED30029 NUT, LOCK, M8, ZINC ED34921 PIN, D6X15MM... -
Page 15: Illustration 7: 70Mm Inlet Assembly
E-VAC300-PL-0218 ILLUSTRATION 7: 70mm INLET ASSEMBLY PART # ED34869 ITEM # PART # DESCRIPTION QTY. ED30007 INLET, 70MM, ALUMINUM ED34821 GASKET, 70MM INLET ED32958 DEFLECTOR, 70MM., ALU., DS1/WS ED328661 SCREW, SOC HD CAP M5 X 25 BLKOX ED32863 SCREW, SOC HD CAP M5 X 20 BLKOX ED32867 WASHER, EXT. -
Page 16: Illustration 8: Hose And Connector
E-VAC300-PL-0218 ILLUSTRATION 8: HOSE AND CONNECTOR ITEM # PART # DESCRIPTION QTY. ED701225 STANDARD HOSE, 3” X 25’, CRUSH-PROOF W/ CUFFS ED7013B REPLACEMENT 3” HOSE CUFF ONLY ED501425 *OPTIONAL HOSE, 2” X 25’, CRUSH-PROOF (NOT SHOWN) ED5014B REPLACEMENT 2” HOSE CUFF ONLY ED7018-BL STANDARD HOSE CONNECTOR 3”BL TO 3”... -
Page 17: Decal Sheet
E-VAC300-PL-0218 DECAL SHEET Printed in USA ©2018 Page 16... -
