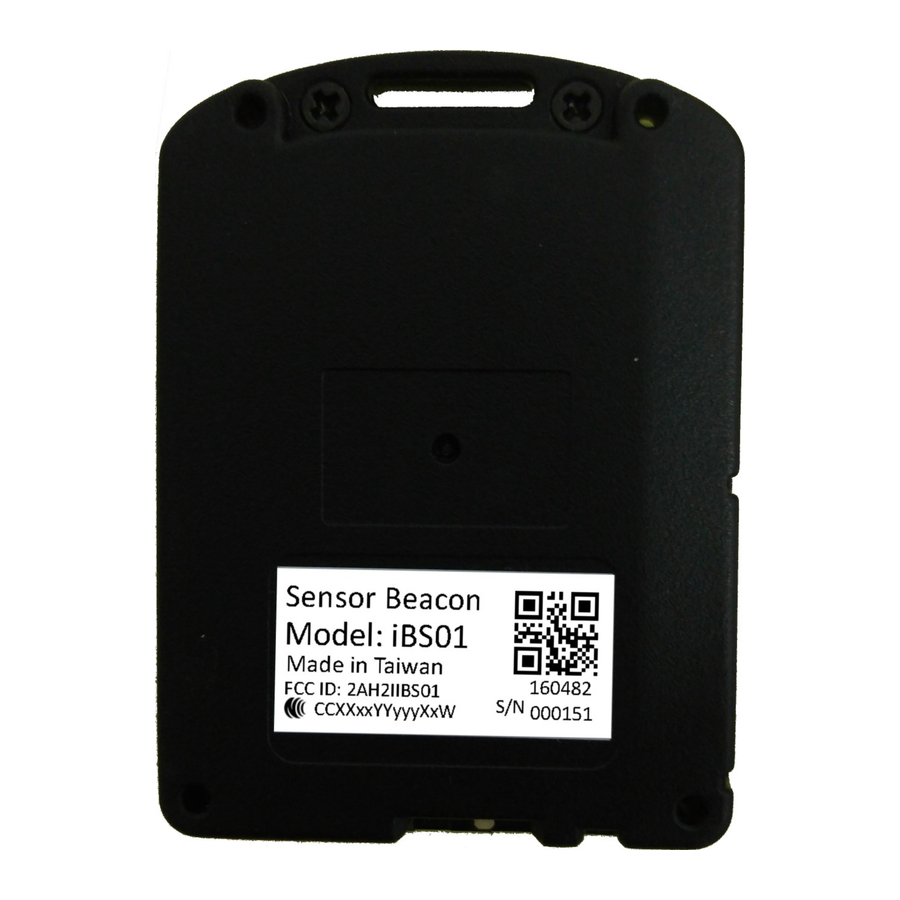

Ingics iBS01 User Manual

INGICS
Guide
Ver.2b

Introduction

This application note is a guide for users to operate iBS01 beacons. The quick verification is using
Nordic's Master Control Panel Android APP. Please download this APP with the link below:
https://play.google.com/store/apps/details?id=no.nordicsemi.android.mcp.

Operation

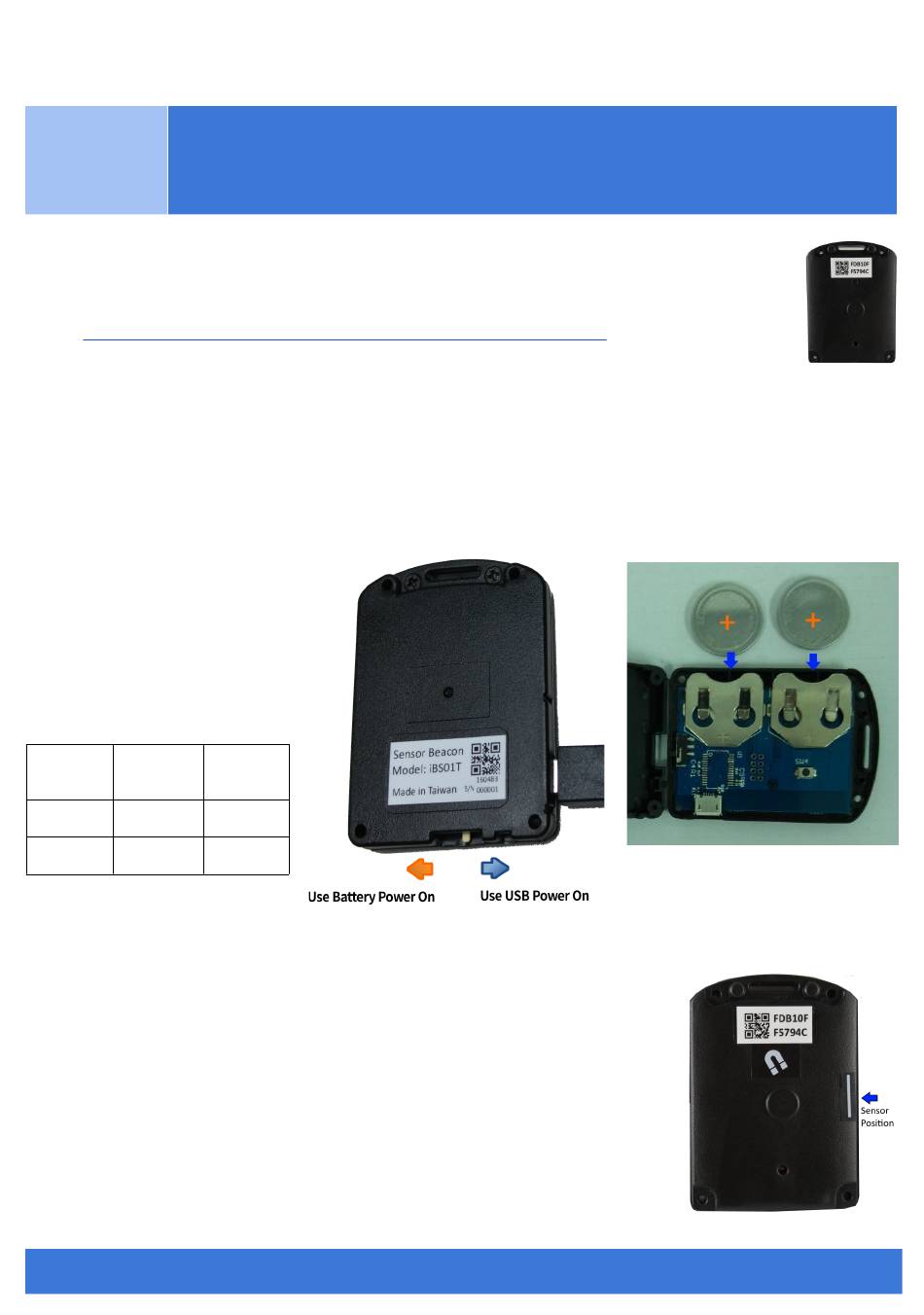

There is no battery shipped with the tag. User has to put 2x CR2032 coin batteries inside the tag. The figure on the
right is an instruction for inserting the battery.
Users can also power the tag by a micro-USB cable from a standard USB host port(like the USB port in a PC) or normal
smartphone charger.
There is a power switch like in
the figure below. Switching
on/off depends on the power
source. After power on, it starts
and continuously advertises the
beacon message through BLE.
Switch USB
Position Power
Right On
Left Off
Caution: risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions

iBS01H sensor position

The iBS01H is using a hall sensor to detect if a magnet is in range or not. Depending on the
strength of the magnet, the range is around 0.5cm~1.5cm. The sensor position is marked on
the enclosure.
