INGICS
AP NOTE 013
Ver.0c
Introduction

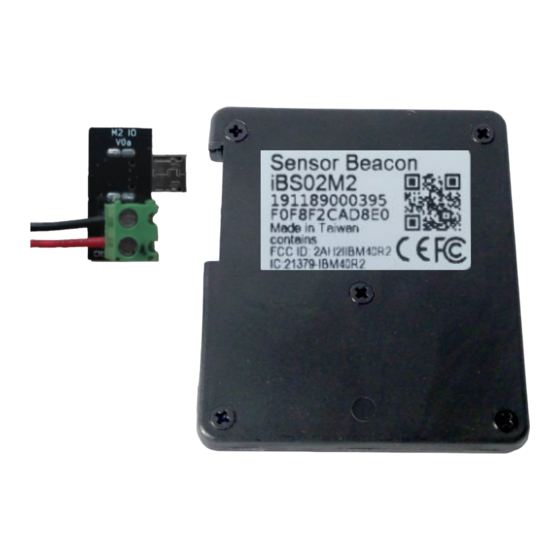

iBS02M2 is a BLE beacon used for detecting external Hi/Lo events. For convenience, an I/O board is
developed to connect external events with iBS02M2. The external event can be a dry contact, like a switch
or wet contact, like a DC power or a signal from another system.
Basic Operation

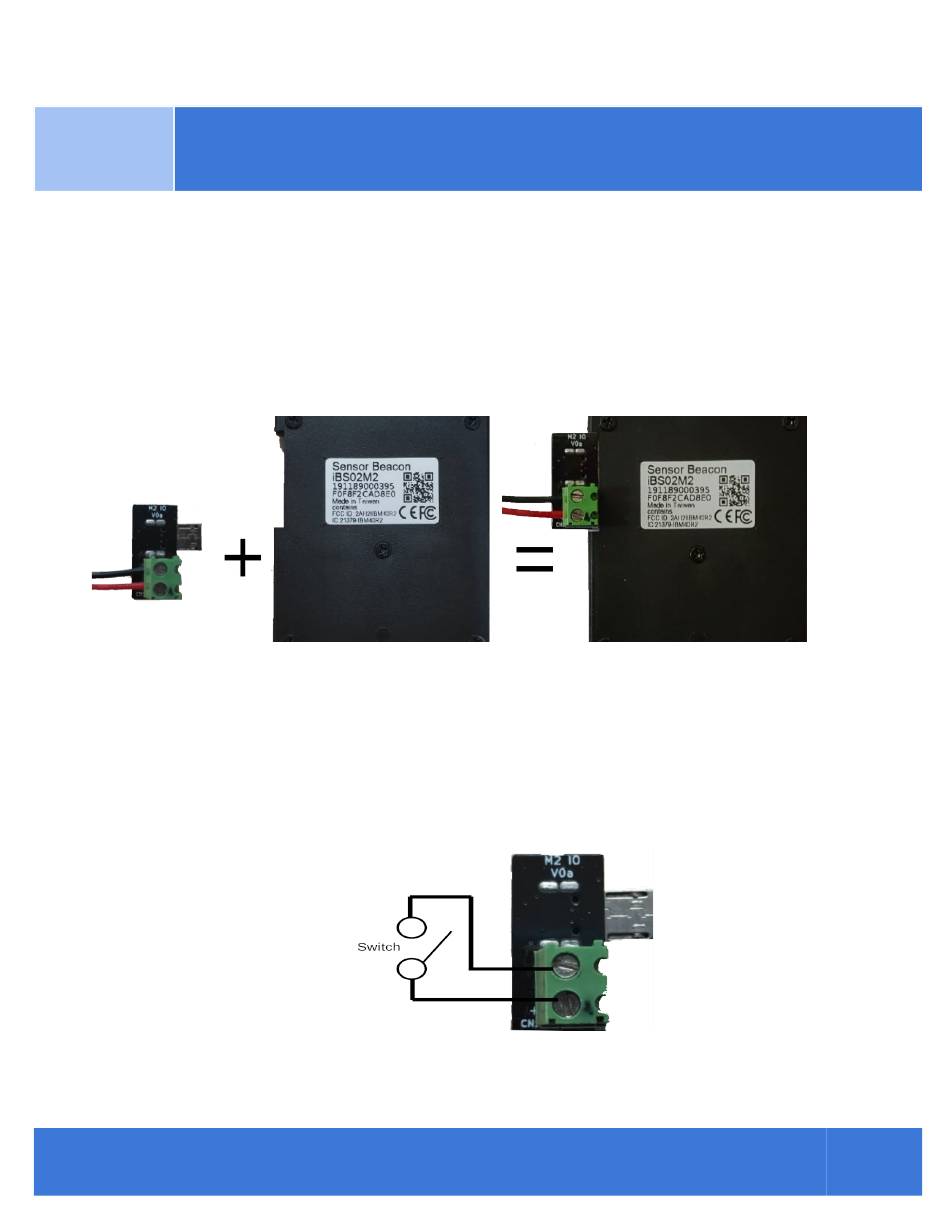

The Terminal block connects Vin+ and Vin- and the micro USB connects to iBS02M2.
Dry Contact:
- As a switch
INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM •
T ECHNOLOGY
iBS02M2 I/O Guide
WWW.INGICS.COM
1
Advertisement
Table of Contents
Related Manuals for Ingics iBS02M2
Summary of Contents for Ingics iBS02M2
- Page 1 BLE beacon used for detecting external Hi/Lo events. For convenience, an I/O board is developed to connect external events with iBS02M2. The external event can be a dry contact, like a switch or wet contact, like a DC power or a signal from another system.
- Page 2 INGICS T ECHNOLOGY - As a flood sensor Connect two wires to iBS02M2's terminal and put the other ends close enough (several centimeters). These two wire ends can be used to detect if there is water or not. Example: ...
- Page 3 Wet Contact: a DC Power - The DC Power system have High and Low status min max Vin (Lo) 0V 0.5V Vin (Hi) 2V 50V Accepted Power Range INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM ...
- Page 4 Low resistance. * Suggested range of this resistance is 100K~300K ohm. min max Vin (Lo) 0V 0.5V Vin (Hi) 2V 50V Accepted Power Range INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM ...
- Page 5 Dec 12, 2019 Initial release Feb 06, 2020 Add DC Power system which can’t maintain a low level state while powered off. Add flood sensor application Aug 26,2020 INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM ...
