INGICS​

AP NOTE 013
Ver.0b
Introduction
​ iBS02M2 is a BLE beacon used for detecting external H/L event. For convenient, an I/O board is developed to connect
external event with iBS02M2. The external event can be a dry contact, like a switch or wet contact, like a DC power or a signal
from other system.
Operation

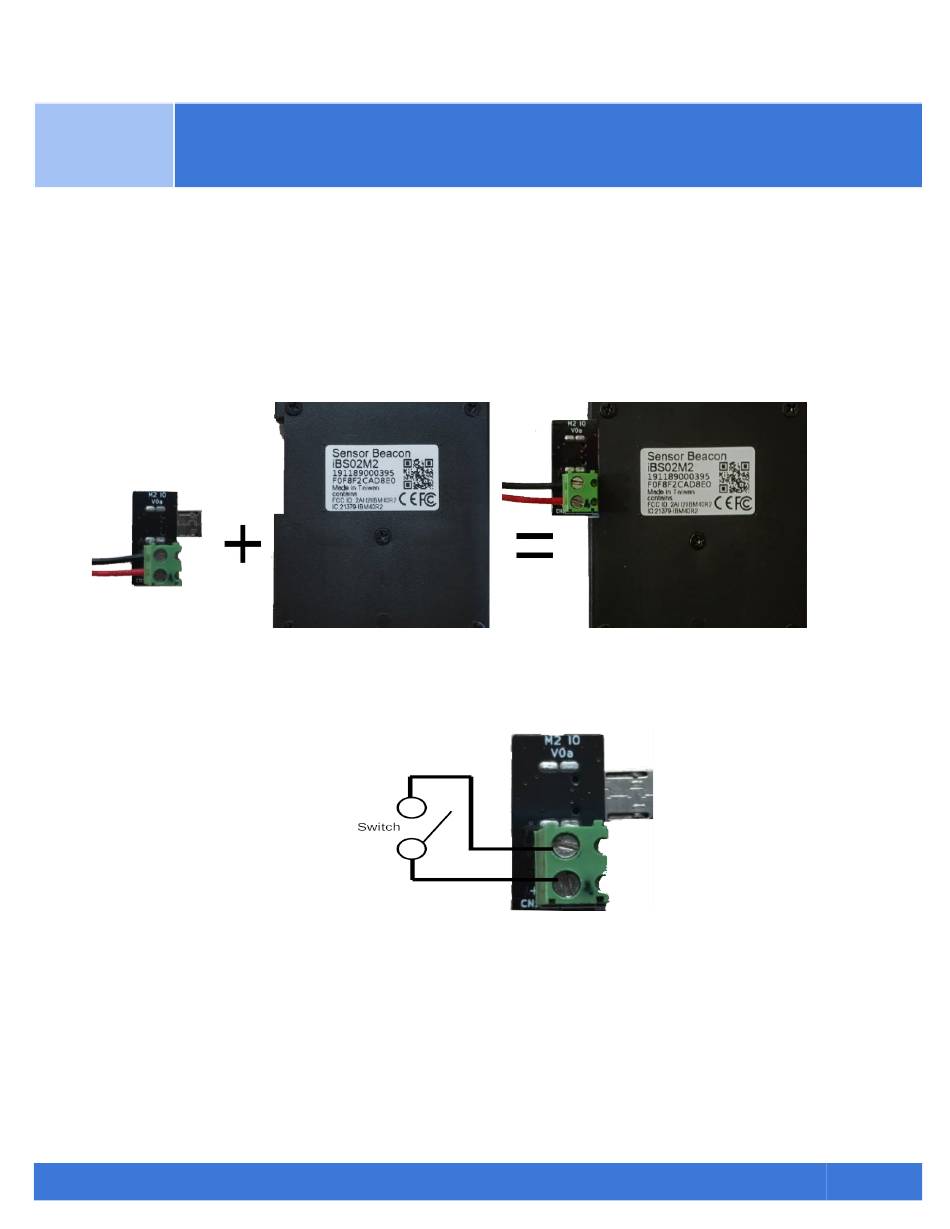

1. The Terminal block connect Vin+ and Vin- and the micro USB connect to iBS02M2.


2. Dry Contact: a switch
​
INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM
​
T ECHNOLOGY
iBS02M2 I/O Guide











1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBS02M2 and is the answer not in the manual?

Questions and answers

Related Manuals for Ingics iBS02M2

Summary of Contents for Ingics iBS02M2

  • Page 1 ​ iBS02M2 is a BLE beacon used for detecting external H/L event. For convenient, an I/O board is developed to connect  external event with iBS02M2. The external event can be a dry contact, like a switch or wet contact, like a DC power or a signal ...
  • Page 2 3.2 For some DC Power system which can’t maintain a low state while powered off, it needs to add external pull Low  resistance. ​ * Suggested range of this resistance is 100K~300K ohm.        min  max  VinL  0V  0.5V  VinH  2V  50V  Accepted Power Range    ​ INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM ...
  • Page 3 Accepted Signal Range  Revision History  DATE REVISION CHANGES Dec 12, 2019 Initial release Feb 06, 2020 Add DC Power system which can’t maintain a low level state  while powered off.       ​ INGICS TECHNOLOGY CO., LTD. • SUPPORT@INGICS.COM • WWW.INGICS.COM ...
