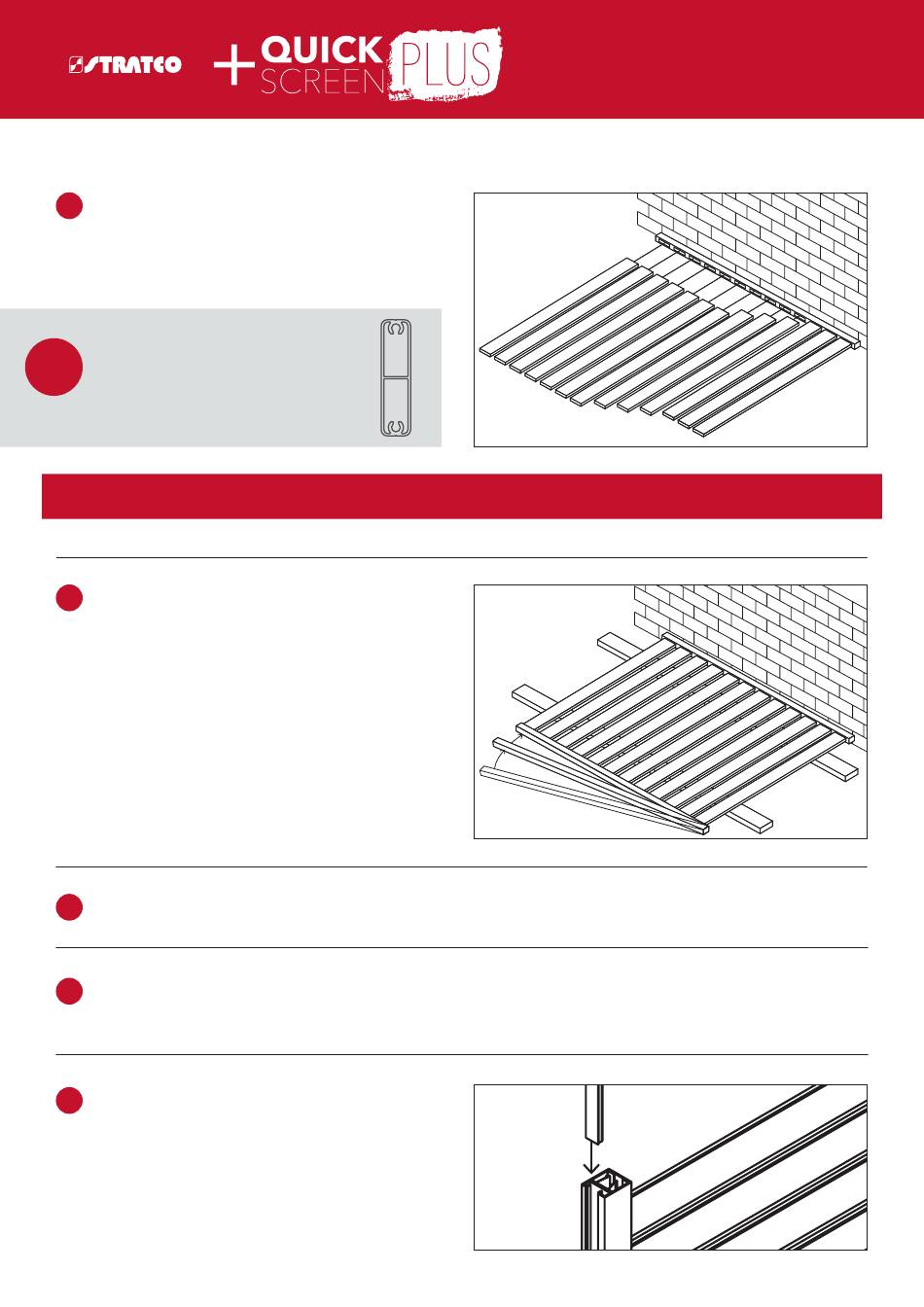

On a flat protected surface, lay 1x gate side frame
3
with slotted spacer infill and rest against a padded
stop and tap slats into place.
!

GATE SLAT POSITIONING

· 2x at top of gate
· 1x at middle of gate
· 1x at bottom of gate
Elevate the slats & gate side frame on two padded
4
bearers to allow the second gate side frame to be
attached.
Engage the second gate side frame to the slats and
tap the frame until all the slats are fully engaged.
TIP: Start at one end and work slats in from one end
to the other.
5
Check measure diagonals to ensure the gate is square.
Screw all gate slats (4 screws per slat).
6
NOTE: Set cordless drill to "screw function" to avoid breaking screw heads.
Slide in the 2x outer infills into position to hide
7
screw heads.
NOTE: 4x gate slats must be used even when gate height is reduced
PEDESTRIAN GATE
