PROFILE

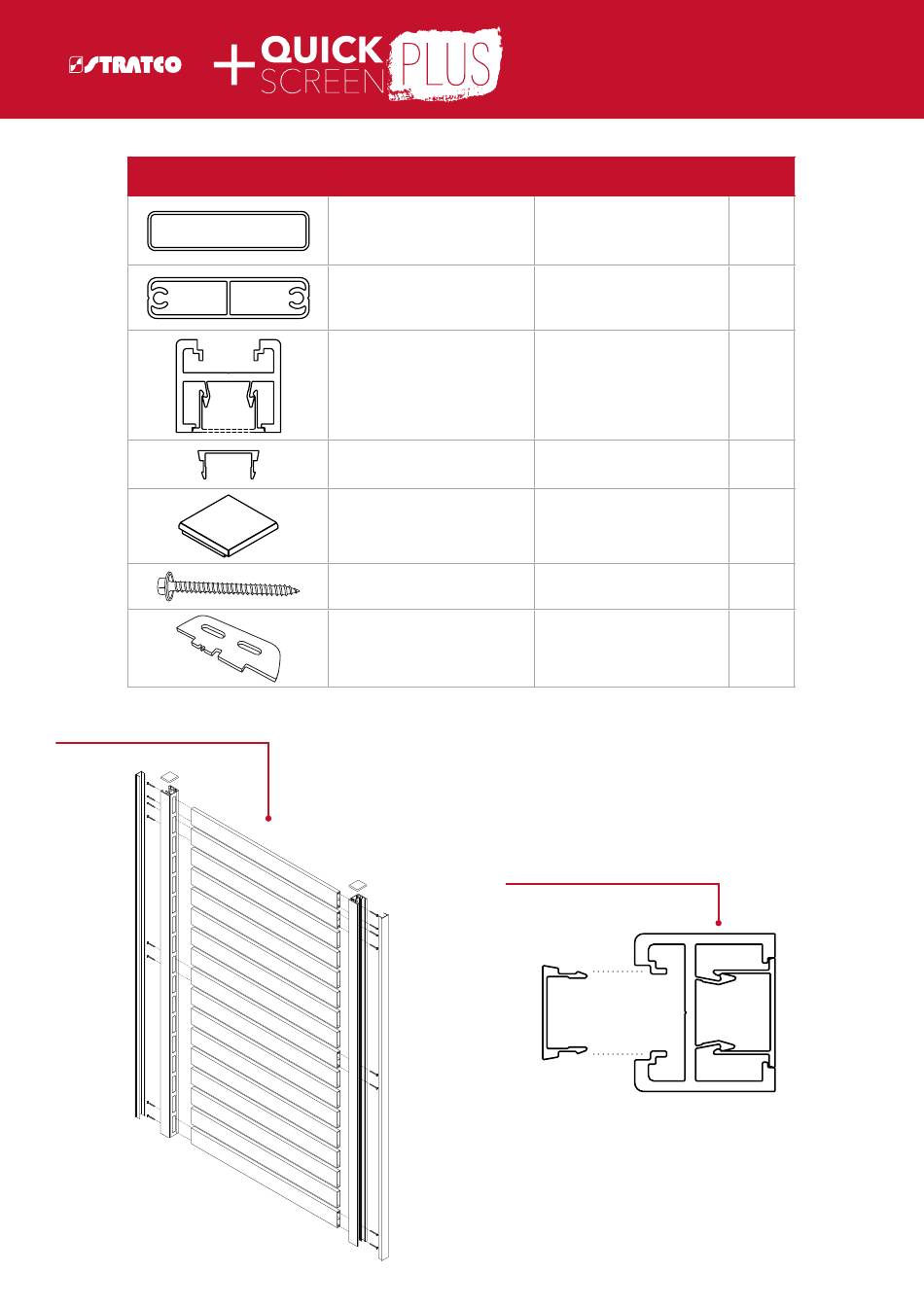

E X P L O D E D V I E W
DESCRIPTION
2 1/2" x 5/8" slat
(65x16mm slat)
2 1/2" x 5/8" gate slat
(65x16mm gate slat)
Gate side frame with
slotted spacer infill
Outer infill
Top cap
Hex head screws
D&D latch packer
Outer infill
PEDESTRIAN GATE
ASSEMBLY GUIDE
LENGTH
3' 1 25/32"
(964mm)
3' 1 25/32"
(964mm)
5' 11"
(1797mm)
5' 11"
(1797mm)
-
-
-
S I D E F R A M E
C O N S T R U C T I O N
Gate side frame
with slotted
spacer infill
QTY
20
4
2
2
2
17
1
Advertisement
Table of Contents
Related Manuals for Stratco QUICK SCREEN PLUS
Summary of Contents for Stratco QUICK SCREEN PLUS
- Page 1 PEDESTRIAN GATE ASSEMBLY GUIDE PROFILE DESCRIPTION LENGTH 2 1/2” x 5/8” slat 3’ 1 25/32” (65x16mm slat) (964mm) 2 1/2” x 5/8” gate slat 3’ 1 25/32” (65x16mm gate slat) (964mm) Gate side frame with 5’ 11” slotted spacer infill (1797mm) 5’...
- Page 2 PEDESTRIAN GATE ASSEMBLY GUIDE HEIGHT ADJUSTMENT OF GATE FRAME TOP OF GATE Using an aluminium saw, cut the gate side frames and outer infills to the required height. Gates TIP: Remove gate are pre-made at 5’ 11” (1797mm) high but can be top caps before height adjusted as required.
- Page 3 PEDESTRIAN GATE ASSEMBLY GUIDE On a flat protected surface, lay 1x gate side frame with slotted spacer infill and rest against a padded stop and tap slats into place. GATE SLAT POSITIONING · 2x at top of gate · 1x at middle of gate ·...
- Page 4 PEDESTRIAN GATE ASSEMBLY GUIDE Slide 2x outer infills past end of gate side frame approximately 1/2” (10mm), then using pliers, bend inner legs of outer infill slightly outwards. Tap outer infill back to level with gate side frame. This step is required to stop the outer infill from sliding down.
