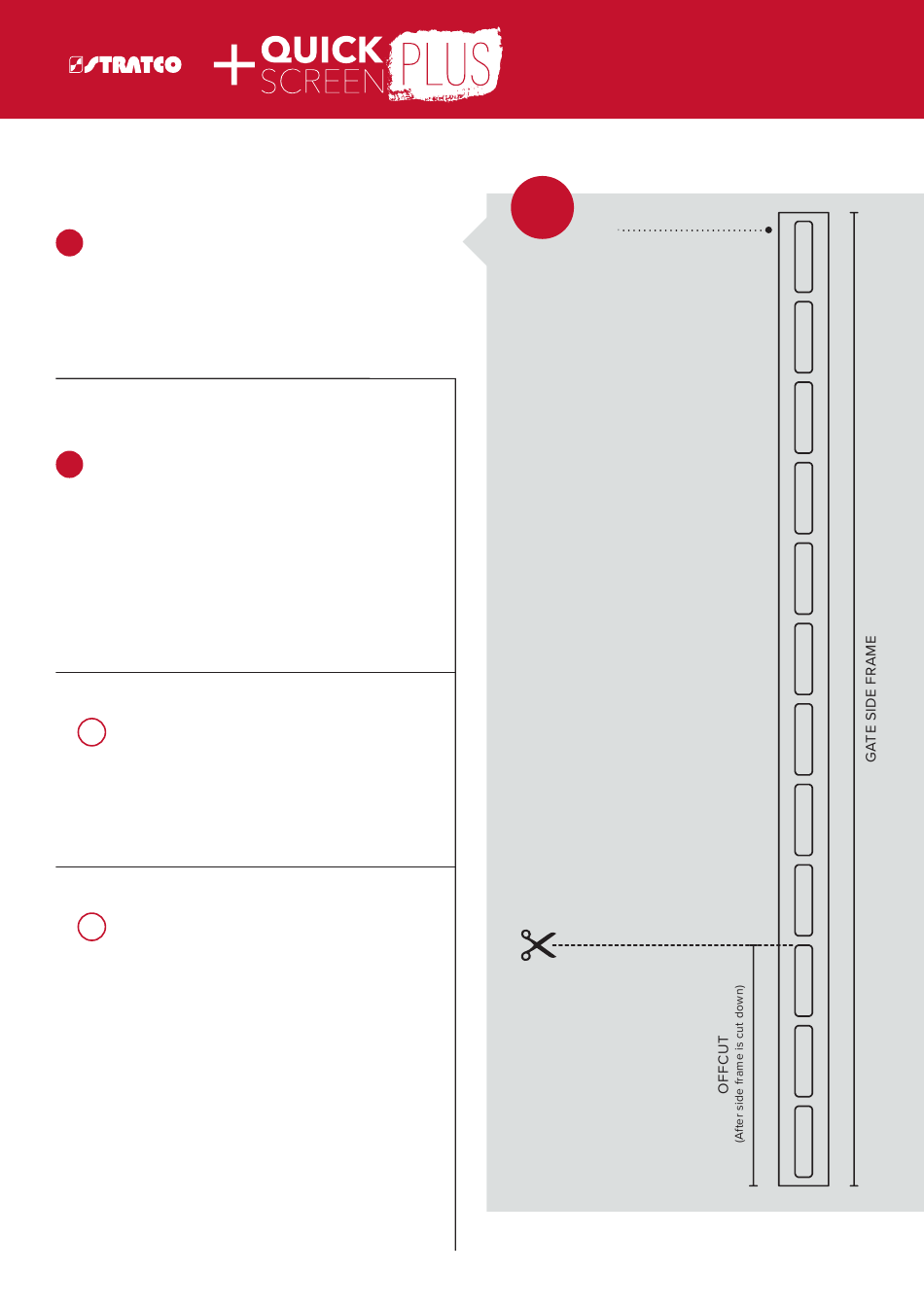

HEIGHT ADJUSTMENT OF GATE FRAME

Using an aluminium saw, cut the gate side frames
1
and outer infills to the required height. Gates
are pre-made at 5' 11" (1797mm) high but can be
height adjusted as required.
NOTE: Side frame heights are governed by the
slotted spacer

WIDTH ADJUSTMENT OF SLATS

Gates are pre-made at 3' 3 1/2" (1000mm) wide
2
"Overall gate width" (outer edge of gate frame to
outer edge of gate frame). If a narrower width is
required, refer to below:
Using an aluminium saw, cut all slats and gate
slats to suit the required overall gate width. If
height of gate is reduced, count how many slat
spaces are required to suit that height.
Note: You must always use 4x gate slats to
make a gate
ACTUAL SLAT WIDTH
NOTE
1
OVERALL GATE WIDTH
(i.e. outer edge to outer edge of gate side frame
MINUS
1 7/16" (36MM)
You need to allow for hinge and latch
NOTE
2
gaps. Check hinge and latch hardware
specifications for gaps required and
take this information into account when
determining OVERALL GATE WIDTH
=
PEDESTRIAN GATE
ASSEMBLY GUIDE
!

TOP OF GATE

TIP: Remove gate
top caps before
cutting down
Cut side frame at the
top of slot to leave
8mm space at the top
and bottom of frame
