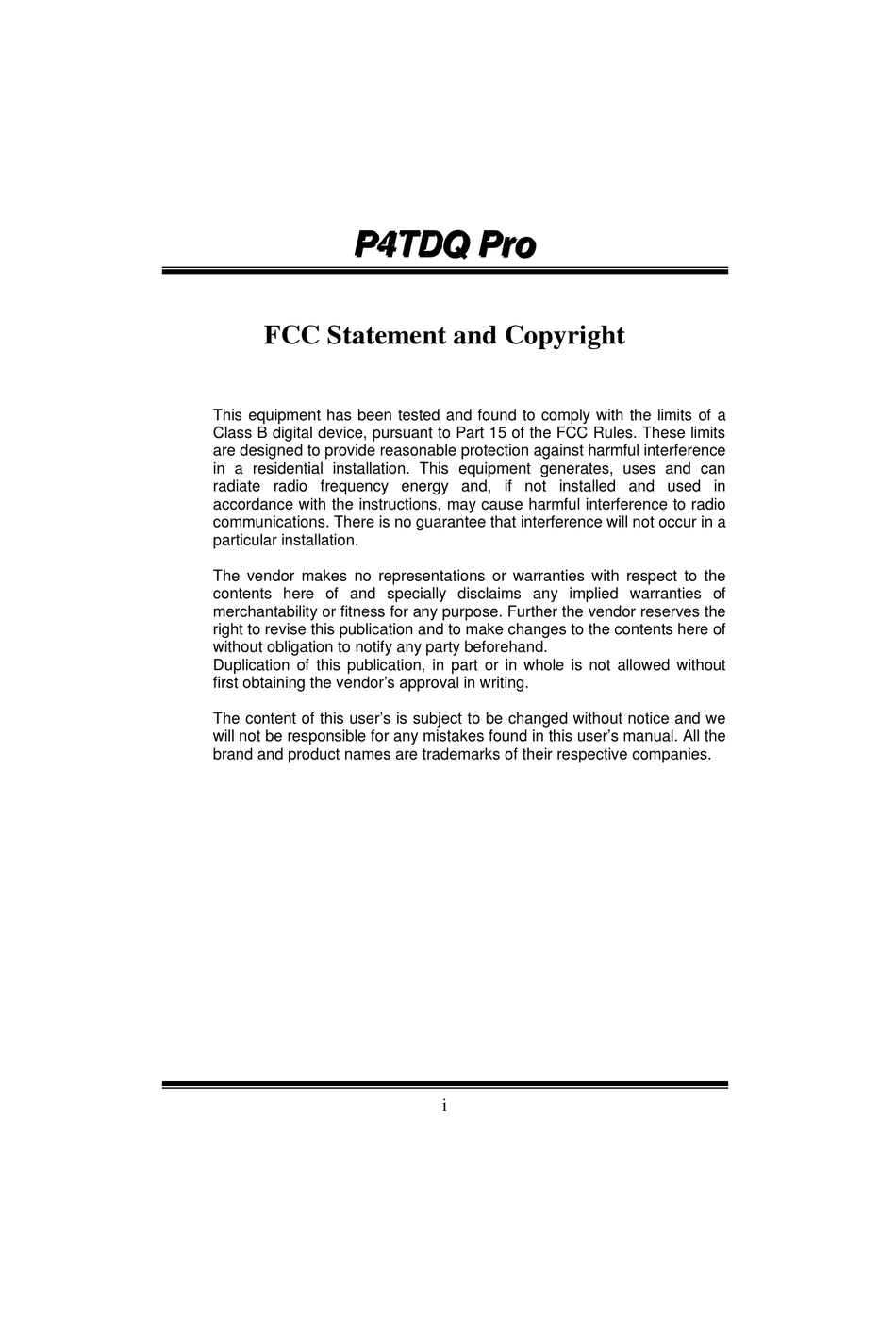

FCC Statement and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a
particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves the
right to revise this publication and to make changes to the contents here of
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole is not allowed without
first obtaining the vendor's approval in writing.
The content of this user's is subject to be changed without notice and we
will not be responsible for any mistakes found in this user's manual. All the
brand and product names are trademarks of their respective companies.
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4TDQ Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Biostar P4TDQ Pro

  • Page 1 FCC Statement and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 2: Table Of Contents

    DDR DIMM Modules: DDR1-2...4 Jumpers, Headers, Connectors & Slots...5 ESPAÑOL ... 10 Características del P4TDQ Pro...10 Contenido del Paquete ...10 Disposición del P4TDQ Pro ... 11 Instalación de la CPU...12 Módulos DDR DIMM: DDR1-2 ...13 Conectores, Cabezales, Puentes y Ranuras...14 WARPSPEEDER... 19 Introduction ...19...
  • Page 3: English

    English P4TDQ Pro Features Use Intel 82845GL/ 82801DB Chipset, ITE IT8712F, LAN Chip (optional). Contains on board I/O facilities, which include one serial port, one VGA port, a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a LAN port (optional) and a game port.
  • Page 4: Layout Of P4Tdq Pro

    USB Cable X 2 (Optional) Rear I/O Panel for ATX Case X 1 (Optional) Layout of P4TDQ Pro JKBMS1 & Mouse JUSBV1 USB & LAN JRJ45USB1 JCOM1 JPRNT1 JVGA1 JSPDIF_OUT JGAME_USB1 JAUDIO1 Codec JCDIN1 CHIP CNR1 JCFAN1 JATXPWR2 JATXPWR1 INTEL...
  • Page 5: Cpu Installation

    CPU Installation Pull the lever sideways away from the socket then raise the lever up to 90-degree angle. Locate Pin A in the socket and lock for the white dot or cut edge in the CPU. Match Pin A with the white dot/cut edge then insert the CPU.
  • Page 6: Ddr Dimm Modules: Ddr1-2

    DDR DIMM Modules: DDR1-2 DRAM Access Time: 2.5V Unbuffered DDR 200/266/Fuzzy 333 MHz Type required. DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin) DIMM Socket DDR Module Location DDR 1 64MB/128MB/256MB/512MB/1GB DDR 2 64MB/128MB/256MB/512MB/1GB * The list shown above for DRAM configuration is only for reference. How to install a DIMM Module 1.
  • Page 7: Jumpers, Headers, Connectors & Slots

    Peripheral Component Interconnect Slots: PCI1-3 This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards, which has, supplanted the older ISA bus standard in most ports.
  • Page 8 Wake On LAN Header: WOL1 Ground 5V_SB Wake up WOL1 Front USB Header: JUSB1/ JUSB2 Pin Assignment Pin Assignment Data (-) Data (+) JUSB1/2 Ground 5V/ 5VSB Selection for USB: JUSBV1/ JUSBV3/ Pin 1-2 on ==> 5V Pin 2-3 on ==> 5V_SB JUSBV1/3/4 Digital Audio Connector: JSPDIF_OUT JSPDIF_OUT...
  • Page 9 Front Panel Connector: JPANEL1 PWR_LED ON/OFF (+) (-) HLED ==> Speaker Conn. HLED ==> Hard Driver LED ==> Reset Button ==> Infrared Conn. ==> Sleep Button PWR_LED ==> Power LED ON/ OFF ==> Power-on Button Audio Subsystem: JAUDIO1/ JCDIN1 JAUDIO1 (Front Audio Header) (CD-ROM Audio-In Header) JCDIN1...
  • Page 10 Assignment Mic In Mic Power RT Line Out Reserved LFT Line Out RT Line In LFT Line In Pin 5, 9, 11, 13 are routed to Front Panel Audio Out. Pin 6, 10, 12, 14 are routed from Front Panel Audio Out. Front Panel Audio Connector/ Jumper Block Jumper Setting Pin 5 and 6...
  • Page 11 Clear CMOS Jumper: JCMOS1 Pin 1-2 on ==> Normal Operation Pin 2-3 on ==> Clear CMOS Data JCMOS1 Back Panel Connectors RJ45USB1 JKBMS1 PS/2 LAN(Optional) Mouse PS/2 COM1 Keyboard JCOM1 (default) JPRNT1 JGAME1_USB1 Parallel Game Port VGA1 Speaker Line In Mic JVGA1...
  • Page 12: Español

    Español Características del P4TDQ Pro Usa Chipset Intel 82845GL/ 82801DB, ITE IT8712F, LAN Chip (opcional). Contiene facilidades I/O integrados en la placa madre en el que incluye un puerto en serie paralelo, un puerto VGA, un puerto paralelo, un puerto para ratón PS/2, un puerto para teclado PS/2, puertos de audio, puertos USB,...
  • Page 13: Disposición Del P4Tdq Pro

    Cable USB X 2 (Opcional) Panel trasero I/O para caja ATX X 1 (Opcional) Disposición del P4TDQ Pro JKBMS1 Teclado & Raton JUSBV1 USB & LAN JRJ45USB1 JCOM1 JPRNT1 JVGA1 JSPDIF_OUT JGAME_USB1 JAUDIO1 Codec JCDIN1 CHIP CNR1 JCFAN1 JATXPWR2 JATXPWR1...
  • Page 14: Instalación De La Cpu

    Instalación de la CPU Tire de la palanca del lado del zócalo, luego levante la palanca hasta un ángulo de 90 grados. Sitúe el contacto A del zócalo y busque el punto blanco o corte el borde en la CPU. Empareje el contacto A con el punto blanco/ corte del borde, luego inserte la CPU.
  • Page 15: Módulos Ddr Dimm: Ddr1-2

    Módulos DDR DIMM: DDR1-2 DRAM Tiempo de Acceso: 2.5V Unbuffered DDR 200/266/Fuzzy 333 MHz Tipo requerido. DRAM Tipo: 64MB/ 128MB/ 256MB/ 512MB/ 1GB Módulo DIMM (184 Contactos) Localización del Zócalo Módulo DDR DIMM DDR 1 64MB/128MB/256MB/512MB/1GB DDR 2 64MB/128MB/256MB/512MB/1GB * La lista de arriba para la configuarción DRAM es solamente para referencia.
  • Page 16: Conectores, Cabezales, Puentes Y Ranuras

    Conectores, Cabezales, Puentes y Ranuras Conectores del Disco Duro: IDE1/ IDE2 La placa madre tiene un controlador de 32-bit PCI IDE que proporciona Modo PIO 0~4, Bus Master, y funcionalida Ultra DMA / 33/ 66/ 100. Tiene dos conectores HDD IDE1 (primario) y IDE2 (secundario). El conector IDE puede conectar a un master y un drive esclavo, así...
  • Page 17 Cabezal Wake On LAN: WOL1 Tierra 5V_SB Wake up WOL1 Cabezal Frontal USB: JUSB1/ JUSB2 Contactos Asignacion Contactos Asignacion Data (-) Data (+) Ground 5V/ 5VSB Selección para USB: JUSBV1/ JUSBV3/ Contacto 1-2 on ==> 5V Contacto 2-3 on ==> 5V_SB JUSBV1/3/4 Conector Digital de Audio: JSPDIF_OUT JSPDIF_OUT...
  • Page 18 Conector del Panel Frontal: JPANEL1 PWR_LED ON/OFF (+) (-) HLED ==> Conector de Altavoz HLED ==> LED del Disco Duro ==> Boton de Reinicio ==> Conector Infrarojo ==> Boton de Suspension PWR_LED ==> Corriente LED ON/ OFF ==> Boton de Encendido Subsistema de Audio: JAUDIO1/ JCDIN1 JAUDIO1 JAUDIO1...
  • Page 19 Contactos Asignacion Entrada del MIC Corriente del MIC RT Salida de Linea Reservado LFT Salida de Linea RT Entrada de Linea LFT Entrada de Linea Contactos 5, 9, 11, 13 son encaminados a la Salida de Audio del Panel Frontal. Contactos 6, 10, 12, 14 son encaminados desde la Salida de Audio del Panel Frontal.
  • Page 20 Puente de Borrar CMOS: JCMOS1 Contacto 1-2 on ==> Operacion Normal (default) Contacto 2-3 on ==> Borrar Datos CMOS JCMOS1 Conectores del Panel Trasero RJ45USB1 JKBMS1 Raton LAN(Opcional) PS/2 Teclado COM1 PS/2 JCOM1 JPRNT1 JGAME1_USB1 Paralelo Puerto de Juego Salida del Entrada VGA1 Altavoz...
  • Page 21: Warpspeeder

    WarpSpeeder Introduction [ WarpSpeeder™ ], a new powerful control utility, features three user-friendly functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor. With the Overclock Manager, users can easily adjust the frequency they prefer or they can get the best CPU performance with just one click. The Overvoltage Manager, on the other hand, helps to power up CPU core voltage and Memory voltage.
  • Page 22: System Requirement

    System Requirement OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP DirectX: DirectX 8.1 or above. (The Windows XP operating system includes DirectX 8.1. If you use Windows XP, you do not need to install DirectX 8.1.) Installation Execute the setup execution file, and then the following dialog will pop up.
  • Page 23 When you see the following dialog in setup procedure, it means setup is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox is checked, the Tray Icon utility and [ WarpSpeeder™ ] utility will be automatically and immediately launched after you click “Finish”...
  • Page 24: Usage

    Usage The following figures are just only for reference, the screen printed in this user manual will change according to your motherboard on hand. [ WarpSpeeder™ ] includes 1 tray icon and 5 panels: 1. Tray Icon: Whenever the Tray Icon utility is launched, it will display a little tray icon on the right side of Windows Taskbar.
  • Page 25 2. Main Panel If you click the tray icon, [ WarpSpeeder™ ] utility will be invoked. Please refer do the following figure; the utility’s first window you will see is Main Panel. Main Panel contains features as follows: a. Display the CPU Speed, CPU external clock, Memory clock, AGP clock, and PCI clock information.
  • Page 26 3. Voltage Panel Click the Voltage button in Main Panel, the button will be highlighted and the Voltage Panel will slide out to up as the following figure. In this panel, you can decide to increase CPU core voltage and Memory voltage or not.
  • Page 27 4. Overclock Panel Click the Overclock button in Main Panel, the button will be highlighted and the Overclock Panel will slide out to left as the following figure. Overclock Panel contains the these features: a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide user the ability to do real-time overclock adjustment.
  • Page 28 “Verify button”: User can click this button and [ WarpSpeeder™ ] will proceed a testing for current frequency. If the testing is ok, then the current frequency will be saved into system registry. If the testing fail, system will do a fail-safe rebooting. After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default setting or load the verified best and stable frequency according to the Recovery Dialog’s setting.
  • Page 29 5. Hardware Monitor Panel Click the Hardware Monitor button in Main Panel, the button will be highlighted and the Hardware Monitor panel will slide out to left as the following figure. In this panel, you can get the real-time status information of your system. The information will be refreshed every 1 second.
  • Page 31 Note: Because the overclock, overvoltage, and hardware monitor features controlled [ WarpSpeeder™ ] divide these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but will not interfere other panels’ functions. This property can make [ WarpSpeeder™...
  • Page 32: Trouble Shooting

    Trouble Shooting PROBABLE No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on. Indicator light on keyboard does not turn on PROBABLE System inoperative. Keyboard lights are on, power indicator lights are lit, hard drive is spinning.
  • Page 33: Solución De Problemas

    Solución de Problemas CAUSA PROBABLE No hay corriente en el sistema. La luz de corriente no ilumina, ventilador dentro de la fuente de alimentación apagada. Indicador de luz del teclado apagado. CAUSA PROBABLE Sistema inoperativo. Luz del teclado encendido, luz de indicador de corriente iluminado, disco rígido está...
  • Page 34 11/12/2002...
