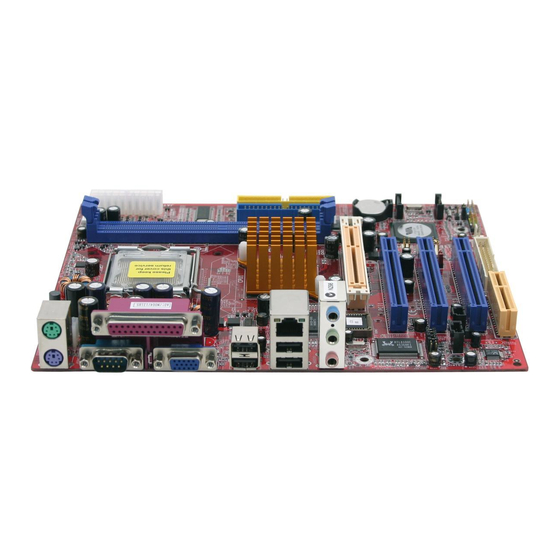

P4M800 Pro-M7
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user's manual. All the
brand and product names are trademarks of their respective companies.
i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Biostar P4M800 Pro-M7
Summary of Contents for Biostar P4M800 Pro-M7
- Page 1 P4M800 Pro-M7 FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Introduction ... 1 Features... 1 Package List... 3 Layout ... 4 Chapter 2: Hardware Installation ... 5 Installing Central Processing Unit (CPU) ... 5 FAN Headers ... 7 Installing System Memory ... 8 Connectors and Slots ... 9 Chapter 3: Headers &... -
Page 3: Chapter 1: Introduction
P4M800 Pro-M7 CHAPTER 1: INTRODUCTION EATURES Supports LGA 775. Supports Intel Pentium 4 processor up to 3.8GHz. Supports Dual Core CPU. Front side bus at the following frequency ranges: 400MHz (100MHz Core Clock) 533MHz (133MHz Core Clock) 800MHz (200MHz Core Clock) 1066MHz (266MHz Core Clock) Supports Hyper-Threading Technology. - Page 4 P4M800 Pro-M7 Super I/O Chip: ITE IT8705AF Provides the most commonly used legacy super I/O functionality. Environment Control initiatives: H/W Monitor. Fan Speed Controller. ITE “Smart Guardian” function. On Board IDE Support 4 IDE disk drives. Supports PIO Mode 0~4.
-
Page 5: Package List
P4M800 Pro-M7 Front Side Onboard Peripherals 1 front panel header supports front panel facilities. 1 S/PDIF out connector supports digital audio out function. 1 CD-in connector supports 1 CD-ROM audio-in device. 1 front audio header supports front panel audio function. -
Page 6: Layout
P4M800 Pro-M7 AYOUT JKBMS1 JATXPWR2 JUSB1 JUSBV1 P4M800 Pro JUSBLAN1 Super JAUDIO1 BIOS PCI1 JFAUDIO1 PCI2 JCDIN1 JAUX1 JSPDIFO1 (optional) PCI3 Codec CNR1 Note: ■ represents the 1 pin. LGA775 CPU1 AGP1 JUSB2 VT8237R PLUS JUSB3 JUSBV2 JSFAN1 FDD1 JCFAN1... -
Page 7: Chapter 2: Hardware Installation
P4M800 Pro-M7 CHAPTER 2: HARDWARE INSTALLATION (CPU) NSTALLING ENTRAL ROCESSING Special Notice: Remove Pin Cap before installation, and make good preservation for future use. When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be damaged. - Page 8 P4M800 Pro-M7 Step 2: Look for the triangular cut edge on socket, and the golden dot on CPU should point forwards this triangular cut edge. The CPU will fit only in the correct orientation. Step 2-1: Step 2-2: Step 3: Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.
-
Page 9: Fan Headers
P4M800 Pro-M7 FAN H EADERS These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1. -
Page 10: Installing System Memory
P4M800 Pro-M7 NSTALLING YSTEM Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the Slot. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated. -
Page 11: Connectors And Slots
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables. The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133 functionality. - Page 12 P4M800 Pro-M7 This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits. Your monitor will attach directly to that video card. This motherboard supports video cards for PCI slots, but it is also equipped with an Accelerated Graphics Port (AGP).
- Page 13 P4M800 Pro-M7 The CNR specification is an open Industry Standard Architecture, and it defines a hardware scalable riser card interface, which supports modem only. CNR1...
-
Page 14: Chapter 3: Headers & Jumpers Setup
P4M800 Pro-M7 CHAPTER 3: HEADERS & JUMPERS SETUP OW TO ETUP UMPERS The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”. - Page 15 P4M800 Pro-M7 JATXPWR1: ATX Power Source Connector This connector allows user to connect 20-pin power connector on the ATX power supply. JATXPWR2: ATX Power Source Connector By connecting this connector, it will provide +12V to CPU power circuit. Assignment +3.3V +3.3V...
-
Page 16: Front Panel Header
P4M800 Pro-M7 JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel This header allows user to connect additional USB cable on the PC front panel, and also can be connected with internal USB devices, like USB card reader. JPANEL1: Front Panel Header This 24-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep button, speaker and IrDA Connection. - Page 17 P4M800 Pro-M7 JCDIN1: CD-ROM Audio-in Connector This connector allows user to connect the audio source from the variaty devices, like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc.. JFAUDIO1: Front Panel Audio Header This header allows user to connect the front audio output cable with the PC front panel.
-
Page 18: Jci1 Chassis Open Header
P4M800 Pro-M7 JCMOS1: Clear CMOS Header By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting and the CMOS data, please carefully follow the procedures to avoid damaging the motherboard. ※ ※ ※ ※ Clear CMOS Procedures: Remove AC power line. - Page 19 P4M800 Pro-M7 JSATA1~JSATA2: Serial ATA Connectors The motherboard has a PCI to SATA Controller with 2 channels SATA interface, it satisfies the SATA 1.0 spec and with transfer rate of 1.5GB/s. JSPDIFO1: Digital Audio-out Connector This connector allows user to connect the PCI bracket SPDIF output header.
-
Page 20: Chapter 4: Useful Help
BIOS contents are corrupted. In this Case, please follow the procedure below to restore the BIOS: 1. Make a bootable floppy disk. 2. Download the Flash Utility “AWDFLASH.exe” from the Biostar website: www.biostar.com.tw 3. Confirm motherboard model and download the respectively BIOS from Biostar website. - Page 21 If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated. When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.
-
Page 22: Troubleshooting
P4M800 Pro-M7 ROUBLESHOOTING Problem No power to the system at all Power light don’t illuminate, fan inside power supply does not turn Indicator light on keyboard does not turn on. System inoperative. Keyboard lights are on, power indicator lights are lit, and hard drive is spinning. -
Page 23: Chapter 5: Warpspeeder
P4M800 Pro-M7 WARPSPEEDER™ CHAPTER 5: NTRODUCTION [WarpSpeeder™], a new powerful control utility, features three user-friendly functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor. With the Overclock Manager, users can easily adjust the frequency they prefer or they can get the best CPU performance with just one click. The Overvoltage Manager, on the other hand, helps to power up CPU core voltage and Memory voltage. -
Page 24: Installation
Tray Icon utility and [WarpSpeeder™] utility will be automatically and immediately launched after you click “Finish” button. Usage: The following figures are just only for reference, the screen printed in this user manual will change according to your motherboard on hand. -
Page 25: Warpspeeder™] Includes 1 Tray Icon And 5 Panels
P4M800 Pro-M7 ™] PEEDER INCLUDES Whenever the Tray Icon utility is launched, it will display a little tray icon on the right side of Windows Taskbar. This utility is responsible for conveniently invoking [WarpSpeeder™] Utility. You can use the mouse by clicking the left button in order to invoke [WarpSpeeder™] directly from the little tray icon or you can... - Page 26 P4M800 Pro-M7 If you click the tray icon, [WarpSpeeder™] utility will be invoked. Please refer to the following figure; the utility’s first window you will see is Main Panel. Main Panel contains features as follows: a. Display the CPU Speed, CPU external clock, Memory clock, AGP clock, and PCI clock information.
- Page 27 P4M800 Pro-M7 Click the Voltage button in Main Panel, the button will be highlighted and the Voltage Panel will slide out to up as the following figure. In this panel, you can decide to increase CPU core voltage and Memory voltage or not. The default setting is “No”. If you want to get the best performance of overclocking, we recommend you click the option “Yes”.
- Page 28 P4M800 Pro-M7 Click the Overclock button in Main Panel, the button will be highlighted and the Overclock Panel will slide out to left as the following figure. Overclock Panel contains the these features: a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide user the ability to do real-time overclock adjustment.
- Page 29 P4M800 Pro-M7 “Auto-overclock button”: User can click this button and [WarpSpeeder™] will set the best and stable performance and frequency automatically. [WarpSpeeder™] utility will execute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, the [WarpSpeeder™] utility will restore to the hardware default...
- Page 30 P4M800 Pro-M7 Click the “about” button in Main Panel, the button will be highlighted and the About Panel will slide out to up as the following figure. In this panel, you can get model name and detail information in hints of all the chipset that are related to overclocking.
- Page 31 P4M800 Pro-M7 Note: Because the overclock, overvoltage, and hardware monitor features are controlled by several separate chipset, [WarpSpeeder™] divide these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but will not interfere other panels’...
