Modulex MMP-080A/10B/Z1/2 Installation Manual page 2

Lighting Fixture
Installation Guide
MUSEUM DOWNLIGHT ADJUSTABLE
MMP-080A/10B/Z1/2

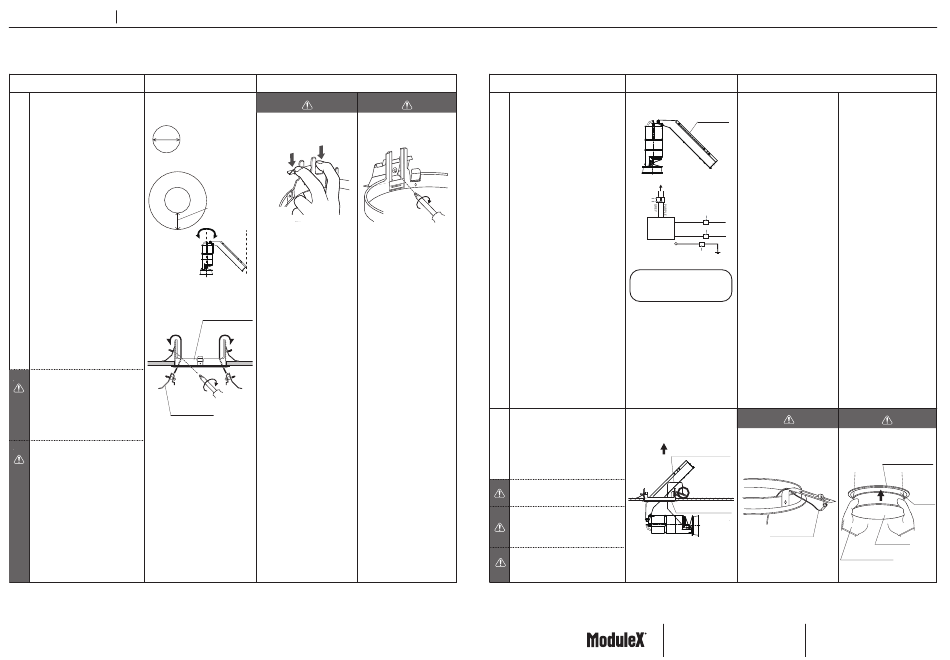

Installation Details Installation Diagram
Install the mounting equipment
1
Ceiling cut out
for ceiling cut out
Φ3-15/64"(82mm)
Accurately cut a 3-15/64" opening
1
and install the mounting frame.
Leave space to rotate
the lighting fixture
φ82mm
φ3-15/64"
500mm
19 "
11/16
2 Slide the metal fittings from upper
side
3 Use a screw driver and tighten the
metal fittings
On step 2, please fix the metal
fitting firmly with your fingers.
a
If not, it may cause falling of fixtures
Metal fitting
Make sure to tighten the metal
fittings securely with a screwdriver.
b
(torque 1.0 〜2.0 N・m) If it is loose,
it may cause falling of the fixture
Caution
a
Space to rotate
the lighting fixture
Push tight
Mounting frame
2
Ceiling
3
Installation Details
b Wiring connection
Provide electrical service according
1
to the "National Electrical Code" or
your local electrical code from a
suitable junction box to the
wiring box(located on the plaster
frame).Supply wire insulation must
be rated for at least 75℃.
Remove the fixture wiring box
2
cover.
Remove appropriate round knock-
out(s) and connect conduit to
wiring box with proper connect-
or(s)(not included).
Connect supply wires to wires in
3
fixture wiring box with proper size
Standard to screw
wire nuts(not included).Be sure
torque 1.0〜2.0N・m
to cover all bare current carrying
conductors.Connect white to white;
black to black; and green or bare
copper wire(from electrical service)
to bare copper wire(in wiring box)
For 0-10V dimming
Make the two connections to the
violet and grey wires and tuck them
back into the smaller compartment.
Make sure the supply wire connec-
tions remain separate and are locat-
ed in the larger junction box comp-
artment.
Place wires and connections back in
4
wiring box and replace cover.
Installation to ceiling
Install the safety wire to the
1
mounting frame.
Install the fixture to the mounting
2
frame.
Make sure to install the safety wire
h
to the mounting frame securely.
Use clean soft cloth to clean up and
maintain inner side of the body.
i
Make sure the fixture will not touch
any objects in ceiling.
Installation Diagram
2
box cover
Make certain no bare wires are
exposed outside the connectors.
3
TO 0-10V DIMMER
CAPPED 0-10V
*Wire nuts by others.
CONTROL WIRES
WIRE NUT*
BLACK BLACK
DRIVER WIRE NUT*
WHITE WHIT E
GREEN OR BARE
GREEN OR BARE
WIRE NUT*
Prepare a wire with a margin
to rotate the lighting fixture
h
Safety wire
1
Ceiling
2
Mounting frame
Safety wire
