Tachosys digiDL-B Administration Manual page 11

digiConnect Windows® Software

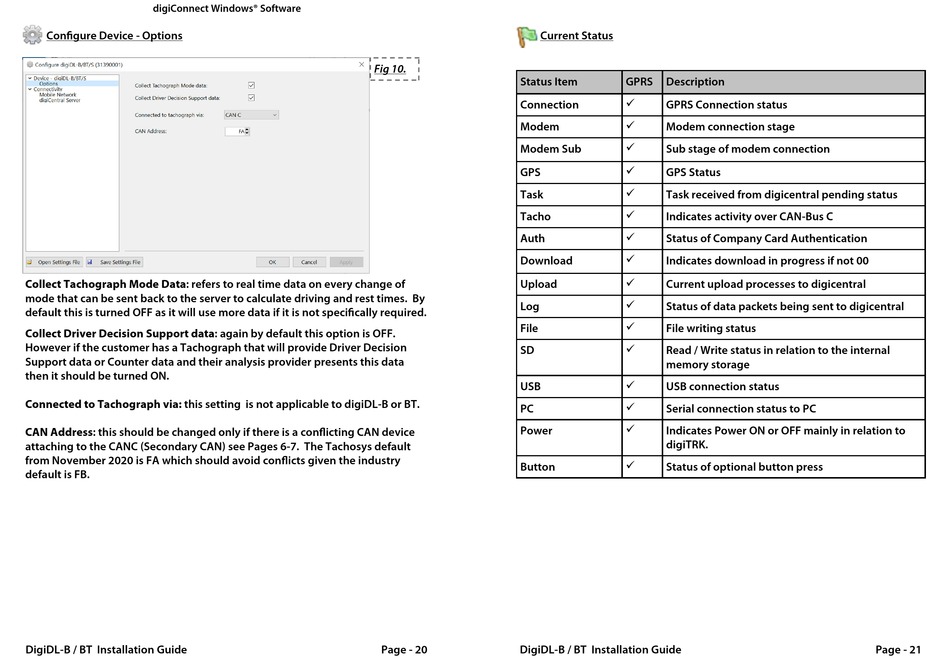

Con gure Device - Options
Collect Tachograph Mode Data: refers to real time data on every change of
mode that can be sent back to the server to calculate driving and rest times. By
default this is turned OFF as it will use more data if it is not speci cally required.
Collect Driver Decision Support data: again by default this option is OFF.
However if the customer has a Tachograph that will provide Driver Decision
Support data or Counter data and their analysis provider presents this data
then it should be turned ON.
Connected to Tachograph via: this setting is not applicable to digiDL-B or BT.
CAN Address: this should be changed only if there is a con icting CAN device
attaching to the CANC (Secondary CAN) see Pages 6-7. The Tachosys default
from November 2020 is FA which should avoid con icts given the industry
default is FB.
DigiDL-B / BT Installation Guide
Current Status
Fig 10.
Status Item
Connection
Modem
Modem Sub
GPS
Task
Tacho
Auth
Download
Upload
Log
File
SD
USB
PC
Power
Button
Page - 20 DigiDL-B / BT Installation Guide
GPRS Description

GPRS Connection status

Modem connection stage

Sub stage of modem connection

GPS Status

Task received from digicentral pending status

Indicates activity over CAN-Bus C

Status of Company Card Authentication

Indicates download in progress if not 00

Current upload processes to digicentral

Status of data packets being sent to digicentral

File writing status

Read / Write status in relation to the internal
memory storage

USB connection status

Serial connection status to PC

Indicates Power ON or OFF mainly in relation to
digiTRK.

Status of optional button press
Page - 21
