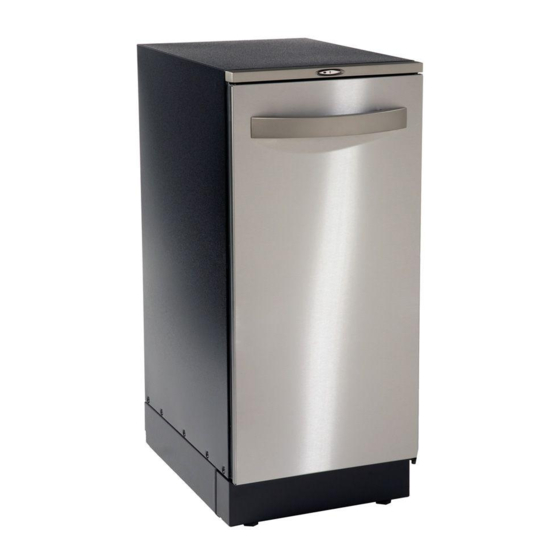

Tr a s h co mp acto r
ins t a l l at i o n, u s e & car e g u id e
read and save THese insTrucTions
important safeguards
read
all
insTrucTions
compacTor.
Basic precautions should always be taken when using an electrical
appliance – including the following:
1. Close supervision is necessary when any appliance is
operated near children. Do not allow the appliance to be
used as a toy, or to run unattended at any time. Turn key to
"OFF" and remove it to lock the compactor. Store the key
out of reach to prevent children or others from operating or
tampering with the compactor.
2. Do not push trash into compactor drawer with hands or
feet. Trash might contain broken glass, sharp pieces of
metal, etc., which would cause injury.
3. Do not compact volatile material. Paint, oily rags, lighter fluid
cans, and paint thinner cans could combust spontaneously
and cause an explosion and/or fire.
4. Do not compact aerosol cans or any other containers still
holding toxic chemicals, insecticides, or combustible
contents. Fumes may be released which are hazardous to
health.
5. Do not compact lighted cigarettes, cigars, or other hot or
burning items.
6. Do not overload the compactor.
7. Be careful when removing and carrying bag. Broken glass or
other sharp objects may pierce bag. Do not overload trash
bag with heavy material such as glass.
8. Do not operate this unit with an extension cord.
9. Use only Broan approved accessories.
10. Do not touch moving parts.
11. Do not take this appliance apart. Incorrect reassembly can
cause electrical shock when operated.
12. Do not operate with a damaged power cord, plug, motor, or
after damage of any kind. Have the compactor examined,
and all repairs made, by an authorized serviceman.
13. This compactor is FOR HOUSEHOLD USE ONLY. Use it
only as described in this manual.
14. Unplug the appliance from outlet before servicing.
carefully
Before
operaTing
models 15WH • 15Bl • 15ss • 15WT • 15TT

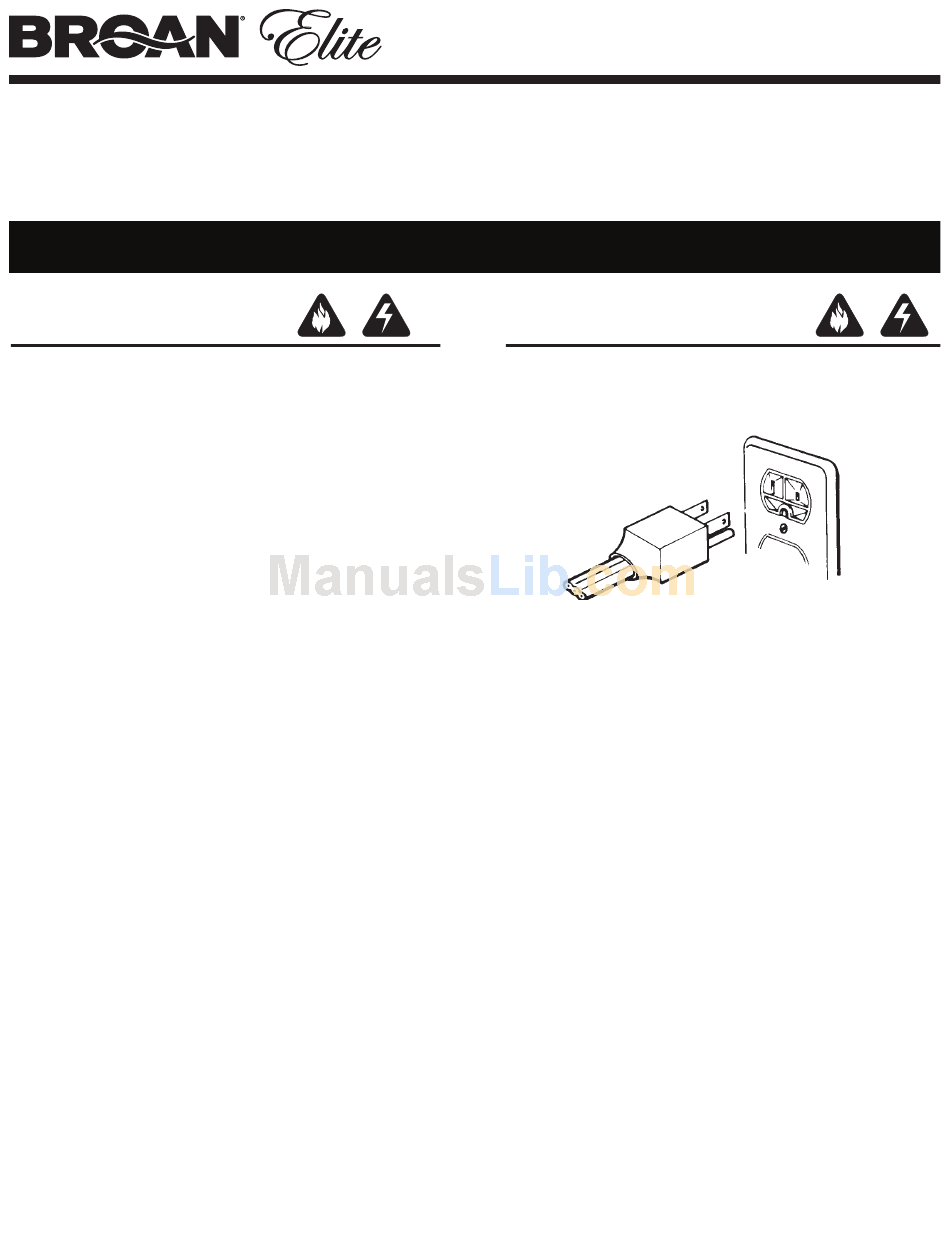

grounding instructions

imporTanT: To reduce THe risK of elecTric sHocK - please
read carefully.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED. The power cord on this appliance is
equipped with a three-prong (grounding) plug which mates with a
standard three-prong (grounded) receptacle as illustrated above.
If there is a two-prong outlet located where you will install the
compactor, it is your responsibility to have it replaced with a
properly grounded three-prong wall receptacle. No adapter shall
be used with this product.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
THIRD (GROUND) PRONG FROM THE POWER CORD PLUG.
The GREEN (or GREEN & YELLOW) conductor in the cord is
the grounding wire. Never connect the GREEN (or GREEN &
YELLOW) wire to a live terminal.
A 120 volt, 60 Hz., A.C., 15 amp fused and grounded electrical
supply is required (time-delay fuse or circuit breaker is
recommended). It is recommended that a SEPARATE CIRCUIT
serving only this appliance be provided.
DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.
