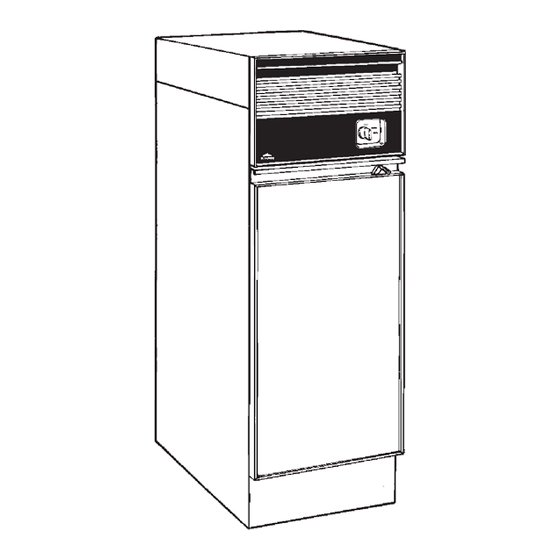

- Page 1 TRASH COMPACTOR SERVICE MANUAL MODELS MODELS 1050L-C & 1051L-C 1055-K & 1059-C Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453) $5.00...
-
Page 2: Table Of Contents
IMPORTANT - NOTE TO THE CONSUMER If you perform service on your own Broan products, you must assume responsibility for personal injury or property damage which may result. -
Page 3: Troubleshooting Guide
See section on motor replacement for test procedure. See section on removing bags from tunnion nut. Do not use bags other than the compactor trash bag designed and sold by Broan for use in this compactor. - Page 4 Bend to adjust. Replace drawer. Tighten. Grease drive screw and trunnion bearing using wheel bearing grease. Replace trunnion bear- ing. Use Broan compactor bags. Install bag correctly. Correction Special Notes It is not necessary to replace motor. Roller tracks should be...
- Page 5 CABINET REPLACEMENT - POWER PACK REMOVAL A box or similar stand approximately 11” high x 15” long x 7” wide is recommended for power pack removal. The box must be able to support 60 lbs. or more since you will be placing the full weight of the power pack on it.
-
Page 6: Component Replacement
Only the trash compactor bags specifically designed and sold by Broan for use in the compactor should be used. Regular plastic garbage bags used in place of the Broan bags may be drawn into the mechanism. Removal of those bags is not cov- ered by the warranty. -
Page 7: Greasing Compactor Mechanism
TRUNNION BEARING 1. Remove sprocket and drive pin. 2. Pull out trunnion bearing. Grease trunnion bearing inside and out with wheel bearing grease prior to reinstalling. MOTOR TRUNNION 1. Remove motor, gearbox, spocket, and screw guard. 2. Use 13/16" wrench to remove bolts securing links to motor trunnion. -
Page 8: Wiring Diagrams
MOTOR Before motor is removed, it should be tested to be sure it is inoperative. Check the continuity of the motor. CHECK CONTINUITY Black to Orange If open, replace motor Red to Orange If open, replace motor Gray to Orange If open, replace motor Green to Motor Frame If open, inspect wire to... - Page 9 MODELS 1050L-C, 1051L-C, 1055-K, 1059-C Service Parts Page 1 of 4 ITEM NO. PART NO. 92008659 93150459 93150458 92005968 92005365 93110436 93100402 93110619 93110934 93110927 93110933 93090903 93090904 93090906 93090945 91012250 93030117 93260451 93110936 93110935 91009865 91006357 93470012 91011979 OPTIONAL...
- Page 10 MODELS 1050L-C, 1051L-C, 1055-K, 1059-C Service Parts Page 2 of 4 ITEM NO. PART NO. 91014197 99260330 93170263 93390127 93390126 93271136 93150506 93260443 93420442 93710029 93380632 92004582 91005183 92004584 91009243 93170265 93710026 93710030 93160408 93770071 DESCRIPTION Switch Assembly, Top Limit...
- Page 11 MODELS 1050L-C, 1051L-C, 1055-K, 1059-C Service Parts Page 3 of 4 ITEM NO. PART NO. 99260330 93170263 92004582 91005183 91009323 91009324 93030201 93450006 93260439 93250908 93110434 93420441 93470006 93180002 93250907 93380619 93250913 93110458 93300442 93260457 93150487 91011704 93840003 92008438 93420558...
-
Page 12: Parts Lists
MODELS 1050L-C, 1051L-C, 1055-K, 1059-C Service Parts Page 4 of 4 ITEM NO. PART NO. 93150459 93470012 93260447 93042445 93042448 91016538 93420449 91016539 93260454 99140102 93480003 93420447 93360100 93360141 93370334 92007833 93110514 92008715 93650007 99230342 93650008 93100511 93650057 OPTIONAL 91009957...
