Tr a s h co mp acto r
ins t a l l at i o n, u s e & car e g u id e
reAd And sAve THese insTrucTions
important safeguards
reAd
All
insTrucTions
compAcTor.
Basic precautions should always be taken when using an electrical
appliance – including the following:
1. Close supervision is necessary when any appliance is
operated near children. Do not allow the appliance to be
used as a toy, or to run unattended at any time. Turn key to
"OFF" and remove it to lock the compactor. Store the key
out of reach to prevent children or others from operating or
tampering with the compactor.
2. Do not push trash into compactor drawer with hands or feet.
Trash might contain broken glass, sharp pieces of metal,
etc., which would cause injury.
3. Do not compact volatile material. Paint, oily rags, lighter fluid
cans, and paint thinner cans could combust spontaneously
and cause an explosion and/or fire.
4. Do not compact aerosol cans or any other containers still
holding toxic chemicals, insecticides, or combustible
contents. Fumes may be released which are hazardous
to health.
5. Do not compact lighted cigarettes, cigars, or other hot or
burning items.
6. Do not overload the compactor.
7. Be careful when removing and carrying bag. Broken glass or
other sharp objects may pierce bag. Do not overload trash
bag with heavy material such as glass.
8. Do not operate this unit with an extension cord.
9. Use only Broan approved accessories.
10. Do not touch moving parts.
11. Do not take this appliance apart. Incorrect reassembly can
cause electrical shock when operated.
12. Do not operate with a damaged power cord, plug, motor, or
after damage of any kind. Have the compactor examined,
and all repairs made, by an authorized serviceman.
13. This compactor is FOR HOUSEHOLD USE ONLY. Use it
only as described in this manual.
14. Unplug the appliance from outlet before servicing.
cArefully
Before
operATing
models 15XeWH • 15XeBl • 15Xess • 15XessA

grounding instructions

imporTAnT: To reduce THe risK of elecTric sHocK - pleAse
reAd cArefully.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED. The power cord on this appliance is
equipped with a three-prong (grounding) plug which mates with a

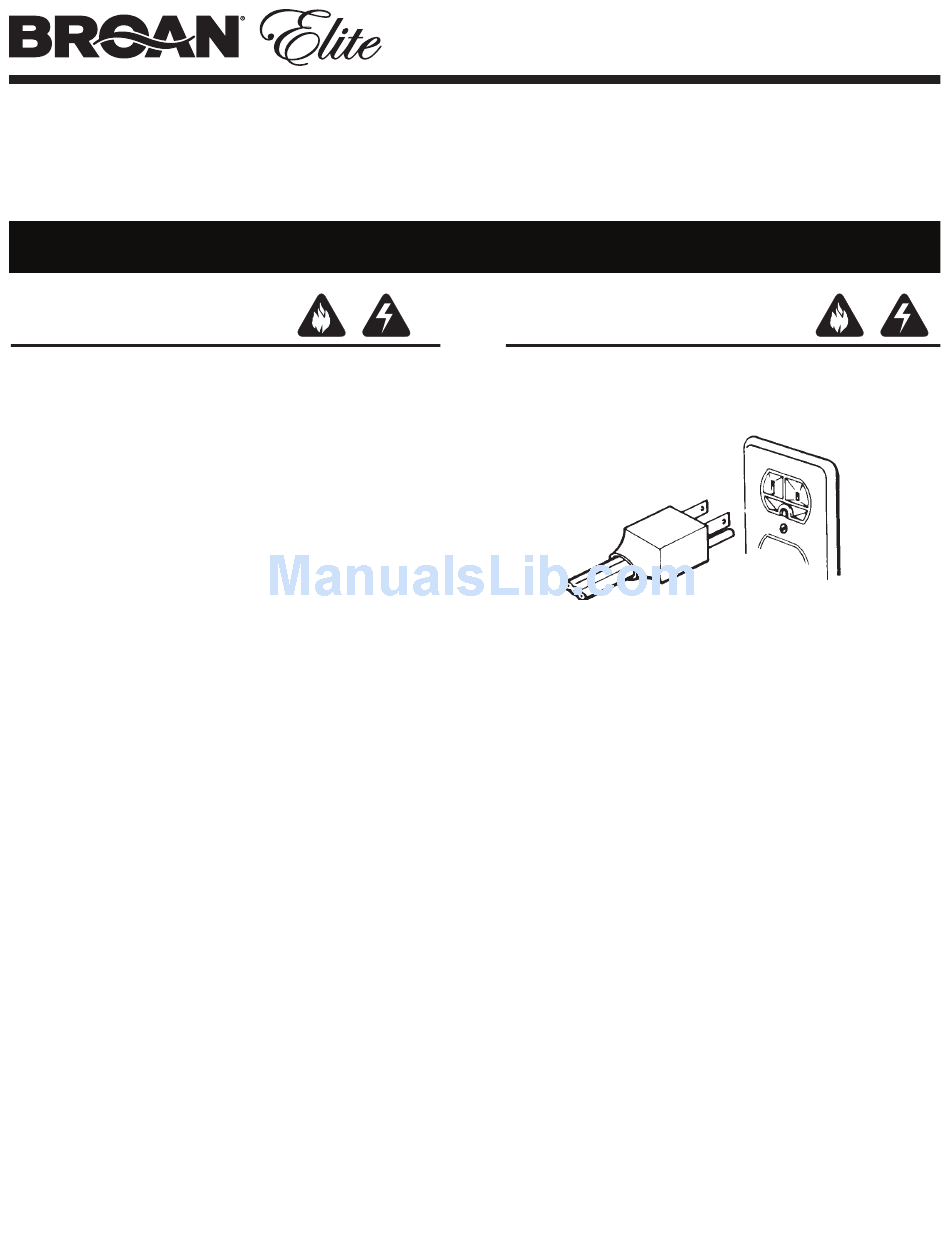

standard three-prong (grounded) receptacle as illustrated above.
If there is a two-prong outlet located where you will install the
compactor, it is your responsibility to have it replaced with a
properly grounded three-prong wall receptacle. No adapter shall
be used with this product.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
THIRD (GROUND) PRONG FROM THE POWER CORD PLUG.
The GREEN (or GREEN & YELLOW) conductor in the cord is
the grounding wire. Never connect the GREEN (or GREEN &
YELLOW) wire to a live terminal.
A 120 volt, 60 Hz., A.C., 15 amp fused and grounded electrical
supply is required (time-delay fuse or circuit breaker is
recommended). It is recommended that a SEPARATE CIRCUIT
serving only this appliance be provided.
DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.
15XeWT • 15XeTT
Page

Advertisement

Table of Contents
loading

Related Manuals for Broan Elite 15XEWH

Summary of Contents for Broan Elite 15XEWH

  • Page 1: Grounding Instructions

    8. Do not operate this unit with an extension cord. A 120 volt, 60 Hz., A.C., 15 amp fused and grounded electrical 9. Use only Broan approved accessories. supply is required (time-delay fuse or circuit breaker is 10. Do not touch moving parts.

  • Page 2: Table Of Contents

    The compactor requires a minimum under-counter opening 15-in. wide, 34½-in. high, and 22-in. deep. Your Broan Elite Compactor has been designed to require minimum space without loss of capacity whether free- Plan to provide an electrical standing or built-in.

  • Page 3: Leveling The Compactor

    models 15XeWH • 15XeBl • 15Xess • 15XessA 15XeWT • 15XeTT Page  leveling the compactor reversing the door (optional) Your compactor has four adjustable levelers; (2) rollers in door reversal instructions for all doors (except the rear and (2) legs in the front. They allow you to adjust wood and tile).

  • Page 4: Tile And Wood Door Assembly

    models 15XeWH • 15XeBl • 15Xess • 15XessA 15XeWT • 15XeTT Page  3. Consider where the compactor will be installed and determine whether to hinge the door on the left or BUSHING right side of the cabinet. Since the hinge pins are permanently DOOR attached to the...

  • Page 5: How The Compactor Works

    1. how the compactor works The Broan Elite compactor compresses household trash up to 1/6 of its original volume. It will compact normal household trash including milk cartons, glass and plastic bottles, containers and jars, tin cans, wrappings, boxes, food wastes, etc.

  • Page 6: Use Of Key Lock Switch

    The key cannot be removed and press “Reset”. when in the “ON” position. Odor disk, Model 15TCOD, is available from your Broan Distributor. NOTE: Opening the door during operation will stop the unit. If the compactor is stopped during its cycle, it will always 4.

  • Page 7: Compacting

    models 15XeWH • 15XeBl • 15Xess • 15XessA 15XeWT • 15XeTT Page  6. compacting 7. clock / auto delay The compactor is now ready to use. FOR BEST RESULTS, ALWAYS FILL EACH NEW BAG COMPLETELY BEFORE OPERATING THE COMPACTOR. DOING SO WILL MINIMIzE BAG PULL-UP AND TEARING.

  • Page 8: Compacting Tips

    models 15XeWH • 15XeBl • 15Xess • 15XessA 15XeWT • 15XeTT Page  eXcepT for cleAning descriBed in THe folloWing secTion, All service sHAll Be performed By An AuTHoriZed service represenTATive. 9. compacting tips 11. cleaning • Although it is not necessary to compact until the drawer is full or Your compactor has been designed with easy access for nearly so, it is suggested that for maximum compaction, you start cleaning when required.

  • Page 9: Cleaning

    models 15XeWH • 15XeBl • 15Xess • 15XessA 15XeWT • 15XeTT Page  And cleAn inTerior 11. cleaning (continued) cleAn rAm 1. Pull out trash bucket until it stops. 2. Remove (1) screw from each of the bucket slides. TRASH 3.

  • Page 10: Troubleshooting

    IMPLIED WARRANTIES OF MERCHANTABILITY OR Is the key switch in the “ON” position? FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its Did you press the “Start” button long enough to start option, repair or replace, without charge, any product...
