Rebotec FIXI User Instructions

Technical Specifications

Nominal Size
Weight (kg) / product 5.2
Max. body weight (kg) 100
Depth (mm) 625
Width (mm) 575
Adjustable handle height (mm) 600-690 / 5 positions
Seat height (mm) 425
Seat width (mm) 385

Spare Parts and Accessories

Art. No. Name
286.00.45 Wheel D=150 mm, black/yellow
280.10.48 Padding for back bow
280.00.60 Brake set 1.265x1.000 Niro incl. nipple
286.65.20 Seat for basket, black (for Fox)
286.65.25 Seat without basket, black (for Fox)
286.88.20 Seat for basket, green (for Fox)
286.88.25 Seat without basket, green (for Fixi & Fox) Pressed wood
189.10.10 Basket (only for "FOX")
Technical specifications subject to change without notice!
4
Model FIXI Model FOX
5.3 (without basket)
100
670
575
690-770 / 5 positions
500
385
Material
Plastic
PUR
VA steel
Plastic encapsulated steel
GB
User Instructions
BA No.: 02.05.012/07-07(KP)
Serial No. / Product

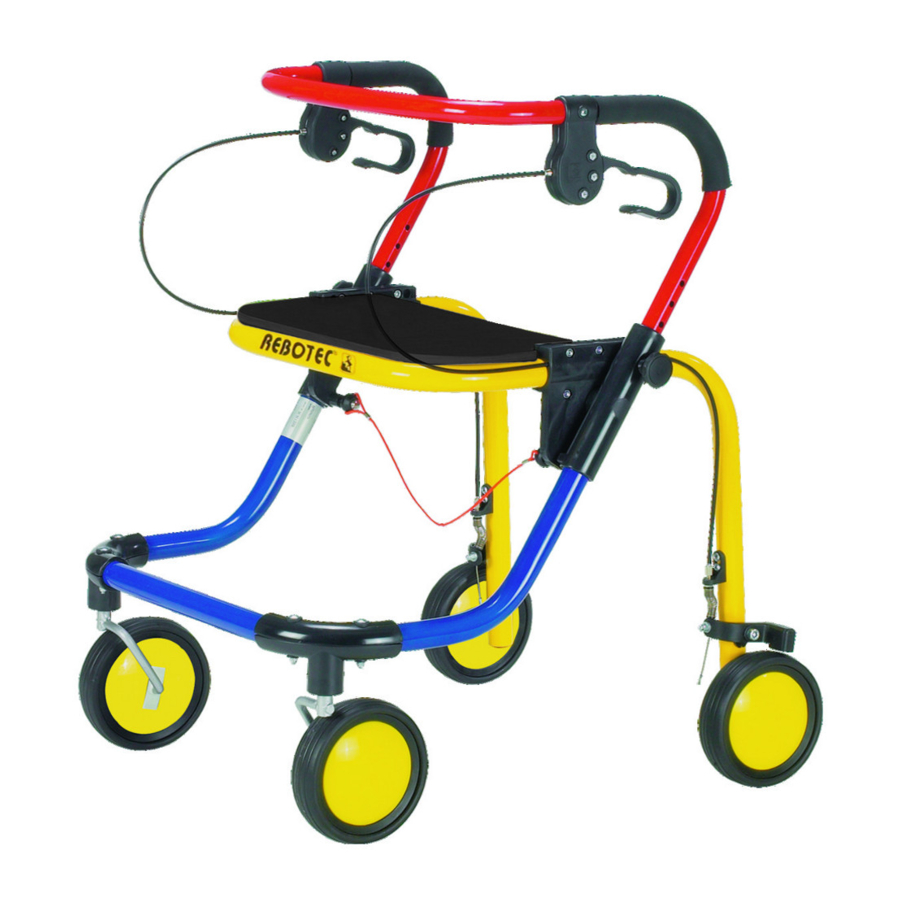

Rollator
Art. No. 186.00.10 „FIXI"

Intended Use / User Advisory

The Rollators are designed for persons with limited walking ability and serve to increase their
ability to move. The Rollators may be used only on solid, even surfaces.
The aluminium tubular design provides security against tipping over. Its lightweight not only
makes the Rollator easier to drive, the bow handle also allows it to be pulled up towards the
upper body, thus allowing the patient to easily overcome street kerbs. In addition the
backrest may be outfitted with a back padding (accessory), which makes sitting comfortable.
For transport, the Rollator can be folded up. The bow handle is also height adjustable to suit
the height of the patient.
Have your specialised dealer or care provider advise you on using the Rollator and its
adjustment for proper function!
REBOTEC
Rehabilitationsmittel GmbH
D-49610 Quakenbrück, Artlandstr. 57-59
Telephone: +49-(0)5431/9416-0
Telefax: +49-(0)5431/9416-66
http://www.rebotec.de
E-mail: info@rebotec.de
Art. No. 186.00.20 „FOX"
Also available with a basket
1
