Intertek 990-3075 Manual page 4



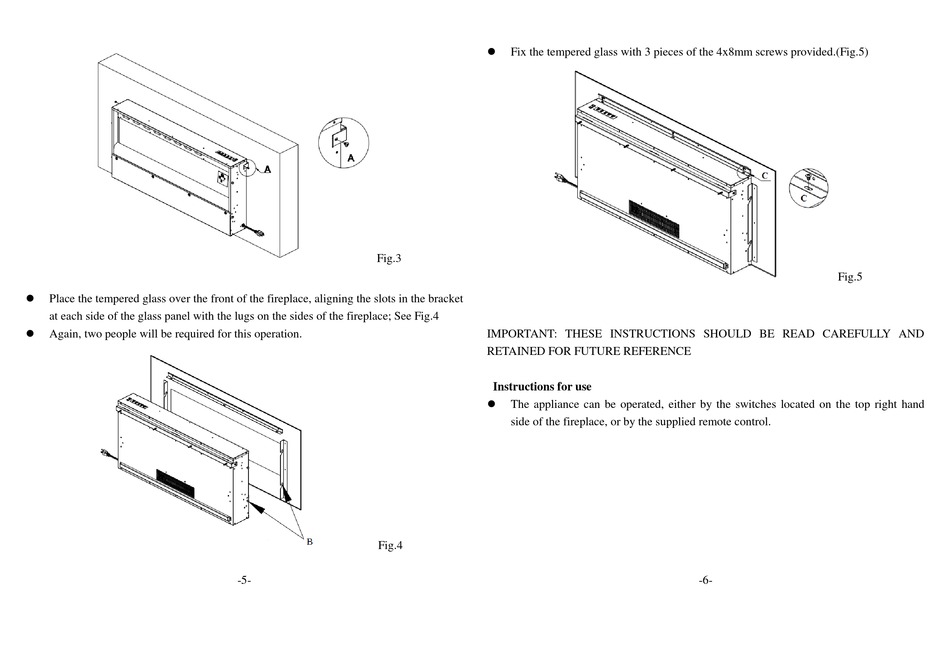

Place the tempered glass over the front of the fireplace, aligning the slots in the bracket
at each side of the glass panel with the lugs on the sides of the fireplace; See Fig.4

Again, two people will be required for this operation.
Fig.3
Fig.4
-5-

Fix the tempered glass with 3 pieces of the 4x8mm screws provided.(Fig.5)
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE
Instructions for use

The appliance can be operated, either by the switches located on the top right hand
side of the fireplace, or by the supplied remote control.
Fig.5
-6-
