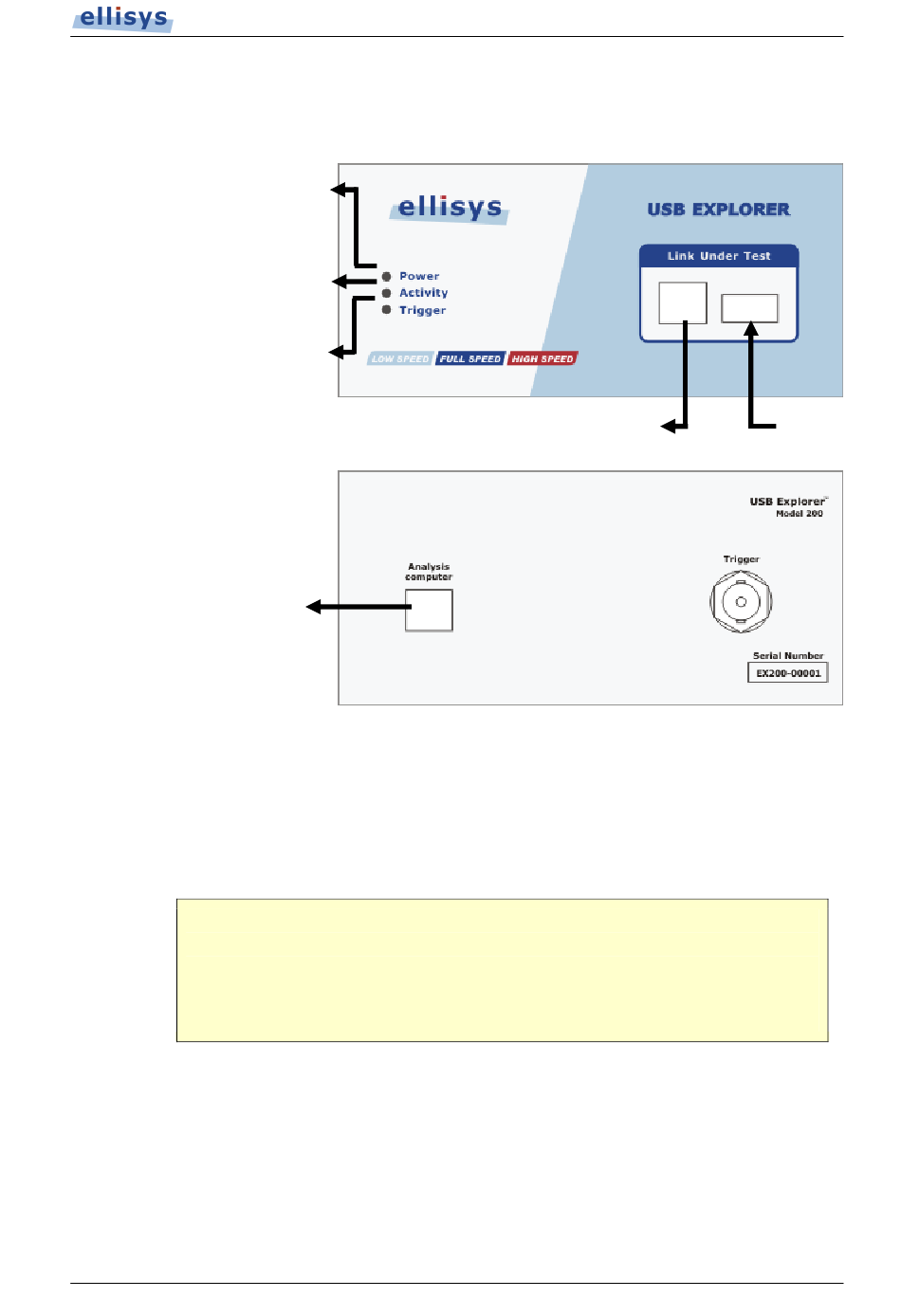

Front and back panels of the analyzer
The Power LED is illuminated
when the analyzer is powered on
The Activity LED blinks in green when
packets are detected (in red when
they are recorded)
The Trigger LED illuminated in green
when a trigger is detected in input (in
red when detected in output)
To Analysis
Computer
Connecting the analyzer to the analysis computer
The USB Explorer 200 is a high speed, full speed and low speed USB 2.0 protocol
analyzer that sends data using a high speed USB 2.0 connection. The recommended
configuration requires two computers, one for communicating with the device under test
and the other for displaying the results of the analysis.
Although the USB Explorer 200 can download analyzed data on a full speed
USB 1.1 connection, it is strongly recommended that you connect it using a
high speed USB 2.0 port to obtain optimal performance. If you experience any
trouble with your analyzer, please ensure it is connected on a high speed USB 2.0
enabled host controller before contacting our technical support.
USB Explorer 200
Version 2.0.3
Computer
User's manual
February 13, 2006
To Test
Page 5 of 17
From Device
Under Test
