extronics iSCAN212 Operating Instructions Manual page 20

Supply and data transfer with USB interface to the higher-level system outside the hazardous area
Ex e connection
There is an adapter from mini USB to USB A included. If the supply voltage of the USB
interface is not able to supply a current> 500mA for corresponding barcode system
assemblies, the enclosed Y-cable can be used. The operating instructions of the host
system must be observed.
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:

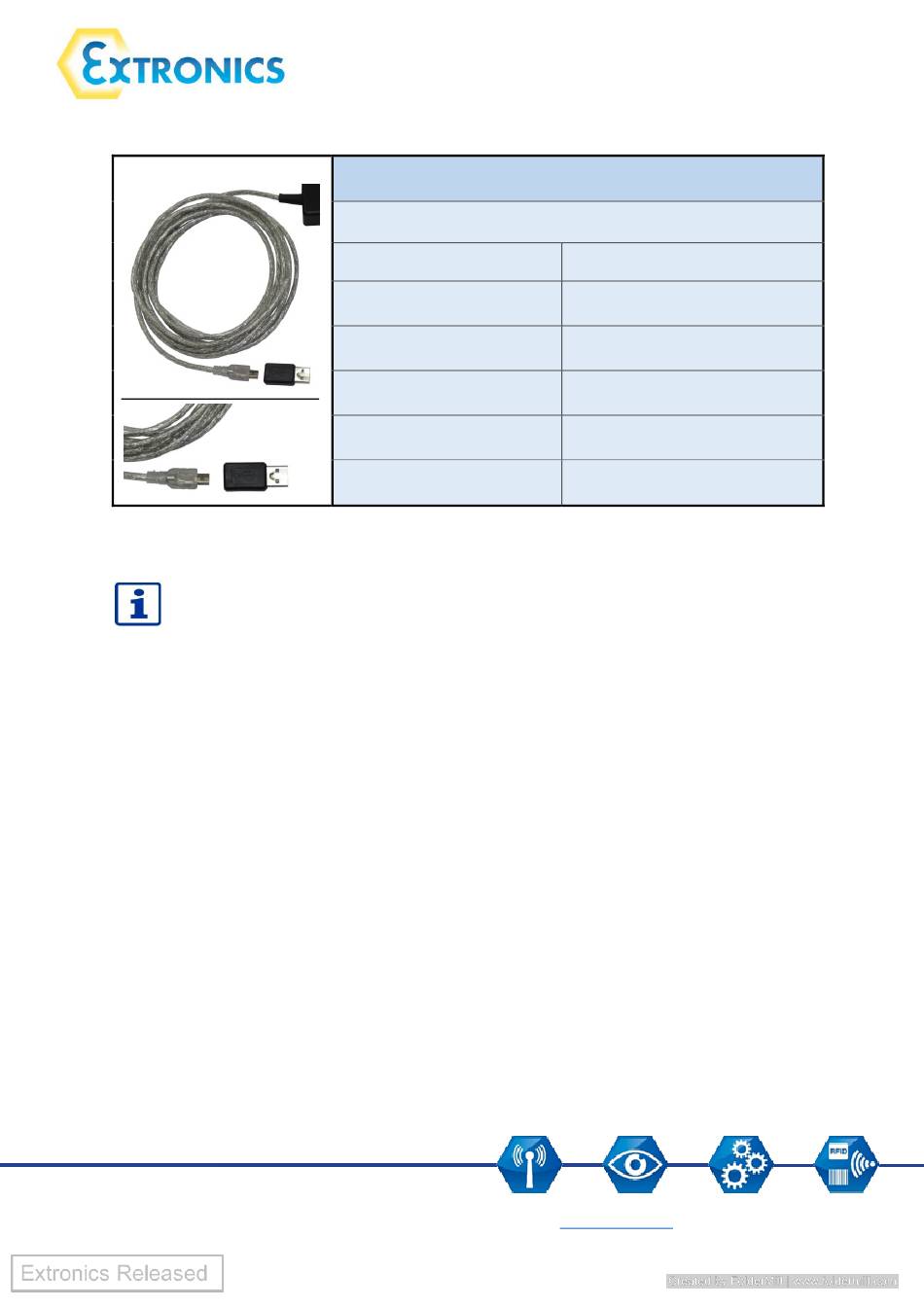

Supply cable
wire
Definition
+ UB
D -
D +
ID
GND
Mini USB Pin
1 (red)
2 (white)
3 (green)
4
5 (black)
