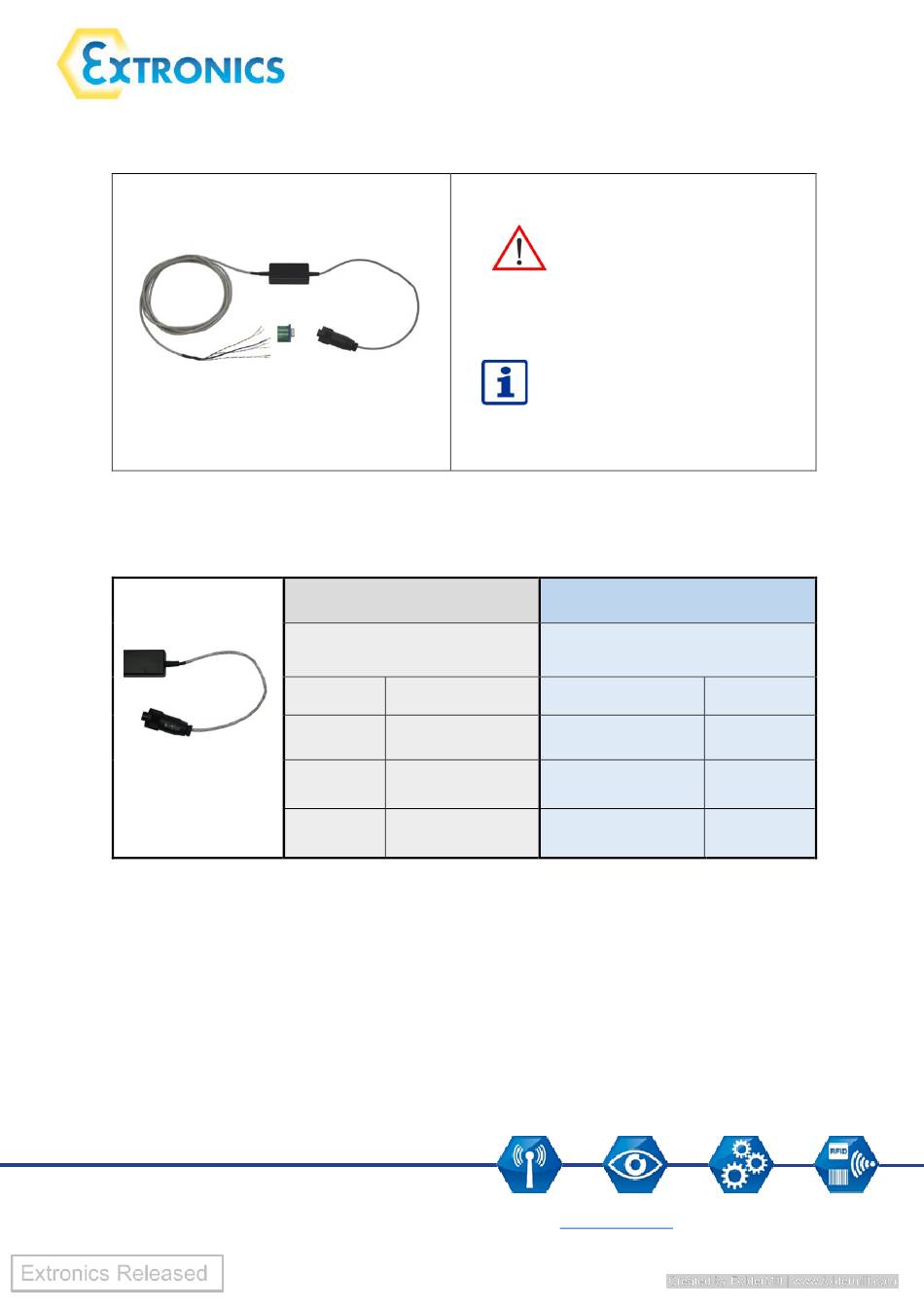

5.4 Pin assignment supply cable RS232

Supply of the base charging station zone 2/22 with plug connection – plug/coupling
Connection base charging station zone 2/22 to the RS232 power supply with plug connection –
plug/coupling
Ex i connection
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
Base connection cable RS232
Pin assignment connection
coupling
Pin Definition
2 GND (brown)
3 TxD (white)
1 +UB (yellow)
Caution! Do not open this enclosure!
Before operating the device in
hazardous area you have to ensure
that the housing has been closed
fully and is not damaged.
Any changes to the pin
assignment may only be carried
out by trained staff.
Supply cable
Connecting coupling
Pin
2
3
1
www.extronics.com
Wire
GND (brown)
RS232 – TxD
(white)
Supply
(yellow)
