Summary of Contents for Deif PPM 300

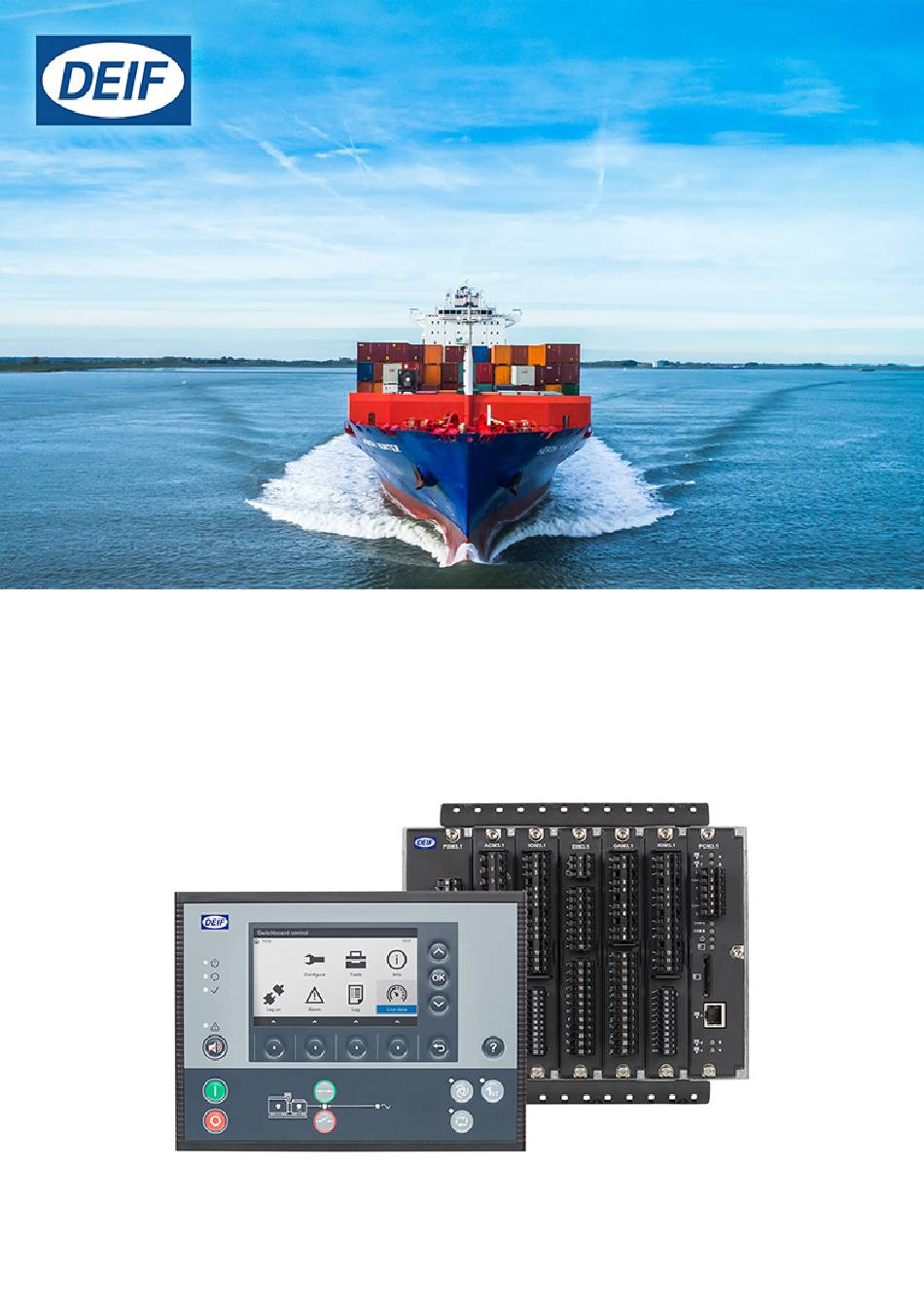

- Page 1 OPERATOR'S MANUAL PPM 300 Protection and Power Management 4189340910O...
-
Page 2: Table Of Contents
1. About the Operator's manual 1.1 Intended users of the Operator's manual ..................................1.2 Software versions ............................................1.3 Symbols for general notes ........................................1.4 Technical support ............................................1.5 Warnings and safety ..........................................1.6 Legal information ............................................2. Getting started 2.1 About controller operation ........................................ - Page 3 3.3.5 Close the inverter breaker ......................................3.3.6 Open the inverter breaker ......................................3.3.7 Set inverter start and stop priority ..................................... 3.4 SHAFT generator controller basic actions ................................3.4.1 Introduction to operating the SHAFT generator controller ..........................3.4.2 Close the shaft generator breaker ....................................
- Page 4 7.1.2 Shelved alarms ..........................................7.1.3 Remove from service ........................................7.1.4 Silence horn ............................................8. Tools 8.1 Tools page ..............................................8.2 Backup page .............................................. 8.3 Restore ................................................8.3.1 Restore restrictions ......................................... 8.3.2 Restore page ............................................. 8.3.3 Restore selection page ......................................... 8.4 Regulator status ............................................
-
Page 5: About The Operator's Manual
The Operator's manual is primarily intended for the operator that performs daily operations with the controller. The manual includes an overview of the LEDs, buttons and screens, as well as general operator tasks, alarms, and logs. You can find other technical documentation for PPM 300 on deif.com. Software versions The information in this document corresponds to the following software versions. -
Page 6: Warnings And Safety
5. Training: • DEIF regularly offers training courses at the DEIF offices worldwide. You can read more about service and support options on www.deif.com. Warnings and safety Safety during installation and operation When you install and operate the equipment, you may have to work with dangerous currents and voltages. The installation must only be carried out by authorised personnel who understand the risks involved in working with electrical equipment. -
Page 7: Legal Information
DEIF A/S reserves the right to change any of the contents of this document without prior notice. The English version of this document always contains the most recent and up-to-date information about the product. DEIF does not take responsibility for the accuracy of translations, and translations might not be updated at the same time as the English document. -
Page 8: Getting Started
2. Getting started About controller operation The PPM 300 controllers make sure that required power is available and the system is protected for typical marine applications. Power management system (PMS) control All controllers normally run under PMS control. All GENSET or HYBRID controllers normally run in AUTO mode. In this mode, the PMS automatically starts and stops gensets or inverters, according to the power requirements. -

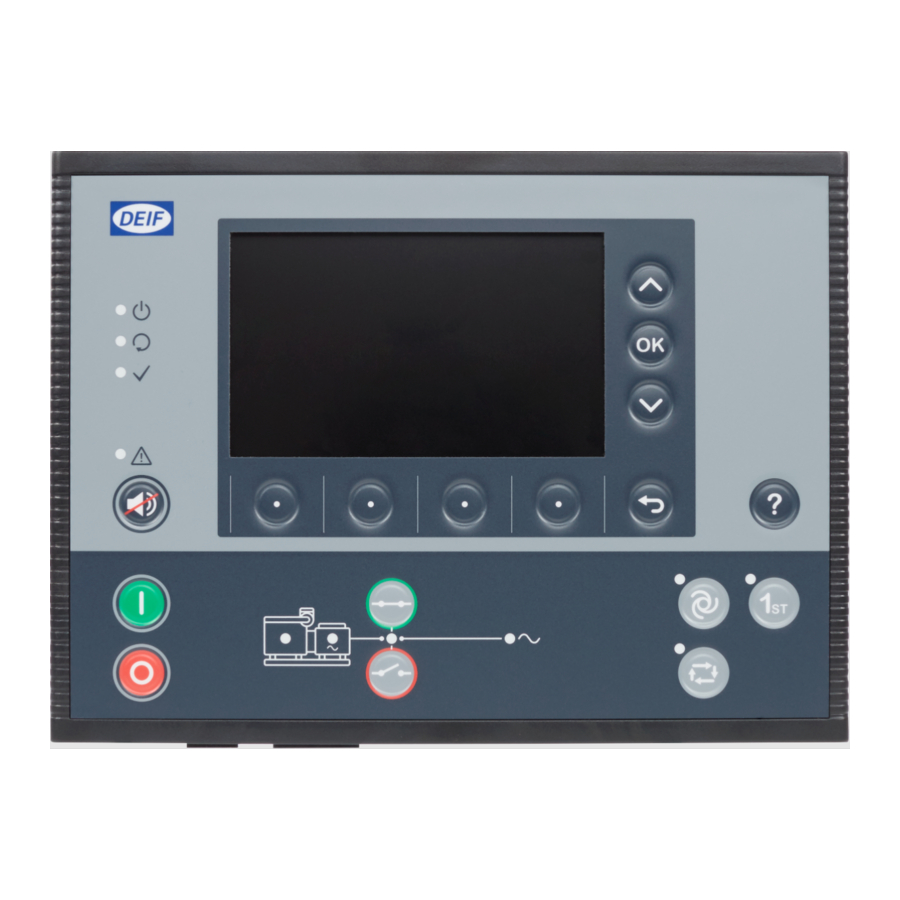

Page 9: About The Display Unit (Du 300)
About the display unit (DU 300) 2.2.1 Display, LEDs, and buttons Switchboard control Home 12:00 Configure Tools Info Log on Alarm Live data Item Notes Display unit power Off : Unit not powered. Green : Unit powered. Off : Controller self-check not OK, or no Self-check OK Green : Controller self-check OK. -
Page 10: Genset Controller Buttons
2.2.2 GENSET controller buttons Item Notes Genset Start genset and start sequence. * Stop genset and stop sequence. * Breaker Close breaker : Starts close sequence. * Open breaker : Starts open sequence. * AUTO mode : Change to AUTO if possible. * Off : Controller not in AUTO. -
Page 11: Genset Controller Leds
2.2.3 GENSET controller LEDs Item Notes Off : Engine not running or no running feedback. Engine Green flash : Engine start sequence initiated. Green : Running feedback. Oil pressure, RPM, frequency within configured limits. Off : Generator voltage too low to measure. Yellow : Generator voltage and frequency not OK. -
Page 12: Emergency Genset Controller Buttons
2.2.4 EMERGENCY genset controller buttons Item Notes Genset Start genset and start sequence. Stop genset and stop sequence. Breaker Close breaker : Starts close sequence. Open breaker : Starts open sequence. Tie breaker Close tie breaker : Starts close sequence. Open tie breaker : Starts open sequence. -
Page 13: Emergency Genset Controller Leds
2.2.5 EMERGENCY genset controller LEDs Item Notes Off : Engine not running or no running feedback. Engine Green flash : Engine start sequence initiated. Green : Running feedback. Oil pressure, RPM, frequency within configured limits. Off : Generator voltage too low to measure. Yellow : Generator voltage and frequency not OK. -
Page 14: Hybrid Controller Buttons
2.2.6 HYBRID controller buttons Item Notes Inverter Start inverter sequence. * Stop inverter sequence. * Breaker Close breaker : Starts close sequence. * Open breaker : Starts open sequence. * AUTO mode : Change to AUTO if possible. * Off : Controller not in AUTO. Green : Controller in AUTO. -
Page 15: Hybrid Controller Leds
2.2.7 HYBRID controller LEDs Item Notes Off : Power source is not ready or no running feedback. Power source Green : Power source ready. Off : Inverter voltage too low to measure. Yellow : Inverter voltage and frequency not OK. Cannot close breaker. Inverter Green flash : Inverter voltage and frequency OK, V&Hz OK timer still running. - Page 16 Item Notes Breaker Close breaker : Starts close sequence. * Open breaker : Starts open sequence. * NOTE * Under switchboard control the controller ignores the input. SHAFT generator LEDs Item Notes Off : Generator voltage too low to measure. Yellow : Generator voltage and frequency not OK.
-
Page 17: Shore Connection Controller Leds And Buttons
2.2.9 SHORE connection controller LEDs and buttons SHORE connection buttons Item Notes Breaker Close breaker : Starts close sequence. * Open breaker : Starts open sequence. * NOTE * Under switchboard control the controller ignores the input. SHORE connection LEDs Item Notes Off : Connection voltage too low to measure. -
Page 18: Bus Tie Breaker Controller Leds And Buttons
2.2.10 BUS TIE breaker controller LEDs and buttons BUS TIE breaker buttons Item Notes Breaker Close breaker : Starts close sequence. * Open breaker : Starts open sequence. * NOTE * Under switchboard control the controller ignores the input. BUS TIE breaker LEDs Item Notes Green : Busbar A voltage and frequency OK, and controller can close breaker. -
Page 19: Screen Layout
2.2.11 Screen layout Switchboard control Home 12:00 Configure Tools Info Log on Alarm Live data Item Notes Status text Shows the current controller status text. This varies depending on the operation of the controller. Shows information as symbols: Symbols Active alarms in system. Logged on user. -
Page 20: About The Virtual Keyboard
2.2.12 About the virtual keyboard The display unit features several virtual keyboards to enter information or settings. Switchboard control Home / Configure / IO configuration / Terminals / Status 12:00 Digital output 1 Aa#1 Write Item Notes Text input Shows the text, numbers, or value entered. Virtual keyboard Shows keyboard layout selected. -
Page 21: About The Help
2.2.13 About the help View help for any page by selecting Help button Switchboard control Home / Help 12:00 Home menu The Home menu provides access to all of the different features or menus of the controller. INFO Features of the controller are protected by group and user permissions. Some features may be read only or not visible, depending upon the user profile logged on to the controller. -
Page 22: Operating The System
3. Operating the system GENSET controller basic actions 3.1.1 Introduction to operating the GENSET controllers Normal operation The GENSET controllers are normally in AUTO mode. When in AUTO mode, the power management system automatically starts/ stops and connects/disconnects the gensets, according to the settings for power requirements and genset priority. Blackout response In the case of a blackout: •... -
Page 23: Start The Genset
The switchboard equipment is third-party equipment. The switchboard control selector labels may therefore be different from the names used above. 3.1.3 Start the genset Mode Procedure When the controller is in AUTO mode, the genset start is controlled automatically and the display buttons are AUTO disabled. -
Page 24: Close The Genset Breaker
The switchboard equipment is third-party equipment. The switchboard might not include a button to stop the genset. 3.1.5 Close the genset breaker Mode Procedure When the controller is in AUTO mode, the genset breaker is controlled automatically and the display buttons are AUTO disabled. -
Page 25: Emergency Genset Controller Basic Actions
More information See Configure, Priority, View or configure priority for more information about how to change the priority for multiple controllers. EMERGENCY genset controller basic actions 3.2.1 Introduction to operating the EMERGENCY genset controller Normal operation The EMERGENCY genset controller is normally in AUTO mode. During normal operation, apart from emergency genset tests, the emergency genset does not run. -
Page 26: Start The Emergency Genset
Mode Procedure • System response: For safety reasons, whenever there is a connected EMERGENCY genset controller under switchboard control, all the GENSET controllers in AUTO mode are automatically changed to SEMI mode. ◦ The automatic power management functions (automatic genset start or stop, and automatic breaker close and open) are no longer active for any GENSET controllers. -
Page 27: Close The Emergency Genset Breaker
Mode Procedure • The controller stops the emergency genset after the cooldown time. • If the emergency genset does not stop, the controller activates an alarm. 2. Press again to skip the cooldown time and stop the emergency genset immediately. •... -
Page 28: Close The Tie Breaker
Mode Procedure 1. Press to open the emergency genset breaker. a. The power management system calculates if the available power is sufficient after the emergency genset breaker opens. If not, the power management system prevents the emergency genset breaker to open, and the controller display unit shows an info message. -
Page 29: Test The Emergency Genset
emergency busbar. The main busbar and the emergency busbar run as two independent busbars until stable power is restored on the main busbar. The EMERGENCY genset controller display unit has two sets of breaker buttons. The tie breaker buttons are on the right. Mode Procedure When the controller is in AUTO mode, the tie breaker is controlled automatically, and the display unit buttons are... -
Page 30: Hybrid Controller Basic Actions
HYBRID controller basic actions 3.3.1 Introduction to operating the HYBRID controllers Normal operation The HYBRID controllers are normally in AUTO mode. When in AUTO mode, the power management system automatically starts/ stops and connects/disconnects the inverter, according to the settings for power requirements and priority. Blackout response In the case of a blackout: •... -
Page 31: Start The Inverter
The switchboard equipment is third-party equipment. The switchboard control selector labels may therefore be different from the names used above. 3.3.3 Start the inverter Mode Procedure When the controller is in AUTO mode, the inverter start is controlled automatically and the display buttons are AUTO disabled. -
Page 32: Open The Inverter Breaker
Mode Procedure • The controller checks the inverter breaker close sequence. ◦ If the inverter breaker close sequence conditions are OK: a. The power management system synchronises the inverter with the busbar (the breaker LED flashes yellow). b. When the inverter and busbar are synchronised, the controller closes the breaker. When the breaker is closed, the breaker LED is green. -
Page 33: Shaft Generator Controller Basic Actions
SHAFT generator controller basic actions 3.4.1 Introduction to operating the SHAFT generator controller Normal operation The SHAFT generator controller normally runs under power management system control. Blackout response In the case of a blackout: • The power management system automatically follows the blackout recovery sequence to start the gensets and restore power. •... -
Page 34: Shore Connection Controller Basic Actions
Control Procedure 1. Press to open the shaft generator breaker. a. The power management system calculates if the available power is sufficient after the shaft generator breaker opens. If not, the power management system prevents the shaft generator breaker to open, and the controller display shows an info message. -
Page 35: Open The Shore Connection Breaker
Control Procedure • If the shore connection does not have the capacity to take over the genset load, the controller does not close the shore connection breaker, and displays an info message. c. After the shore connection breaker is closed, the power management system automatically de-loads and opens the genset breakers of all the GENSET controllers in AUTO mode. -
Page 36: Close The Bus Tie Breaker
Blackout response In the case of a blackout: • The power management system automatically follows the blackout recovery sequence to restore power. • If one busbar is live (and auto close is enabled), the power management system attempts to close the tie breaker. No operator actions are needed. -
Page 37: Operator Messages
Operator messages 3.7.1 Controller status texts The controller status texts are shown at the top of the display. The status text shown depends on the type of controller. Not all texts apply for all controller types. Status text * Description Cannot read the controller status. -
Page 38: Operator Information Messages
Status text * Description The remaining time (in seconds) that the EMERGENCY genset controller parallel test is still Parallel test # s active. Precautionary standby A precautionary genset start alarm or input started the genset. Ready for operation All operation conditions are met. Gensets are ready to start and/or breakers are ready to close. A power supply from the shore connection is available, and the shore connection breaker is SC in operation closed. - Page 39 Operator info Additional information Under switchboard control, operator actions cannot be performed from the controller 1st priority not possible in SWBD interfaces. Alarm blocking BTB close A block alarm is active. Clear the alarm before you try to close the bus tie breaker. Alarm blocking engine start A block alarm is active.
- Page 40 Operator info Additional information Engine start blocked The Block engine start function is active. A stopped genset cannot be started. Under switchboard control, operator actions cannot be performed from the controller Engine start not possible in SWBD interfaces. Engine start unblocked The Block engine start function is not active.
- Page 41 Operator info Additional information The shore connection breaker does not open because the load consumed by the Load on SC too high (Ship-to-ship) receiving ship is too high. The shaft generator breaker does not open because the load to drive the propeller is too Load on SG too high (PTH) high.
- Page 42 Operator info Additional information SGB close cancelled The SGB close was cancelled by an SGB open command. Under switchboard control, operator actions cannot be performed from the controller SGB close not possible in SWBD interfaces. SGB close unblocked The Block shaft generator breaker close function is not active. SGB is closed The Shaft generator breaker is closed.
-
Page 43: Home 4.1 Home Page
4. Home Home page Switchboard control Home 12:00 Configure Tools Info Log on Alarm Live data Item Notes Log on page Log on: Log on as a user or change the logged on user. Configure menu Configure: Select to go to the configure menu. Tools menu Tools: Select to go to the tools menu. -
Page 44: Log On
5. Log on Log on page Switchboard control Home / Log on 12:00 Select user to log on User Group Admin Administrators Operator Operators Service Service engineers Designer Designers Restart Log off User info Item Notes User list Shows a list of available users on the controller. Logged on user : Shows the user is currently logged on. -
Page 45: Configure
6. Configure Configure page Switchboard control Home / Configure 12:00 Date and time View design Pair Priority Counters Parameters Input/Output Item Notes Priority page Priority: Changes the priority of any controller in the system. Date and time page Date and time: Configures the date and time settings. View design page View design: Configures the views shown on the Live data page. -
Page 46: Date And Time Page
Date and time page Date and time settings cannot be changed if a network time server (NTP) is configured. Switchboard control Home / Configure / Date and time 12:00 Date and time settings Date and time Time 00:41:26 Date 2020-09-01 Time zone Etc/UTC Time format... -
Page 47: View Design Page
View design page Switchboard control Home / Configure / View design 12:00 Select view or add new view View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8 View 9 View 10 Delete Rename Move Item Notes... -
Page 48: Add Or Configure A View
6.3.1 Add or configure a view Add a view 1. Select Add. 2. Select the template: • Summary information is shown under the preview: Switchboard control Home / Configure / View design 12:00 Select template View 14 4 values; 1 column, 1 gauge •... - Page 49 • 7. Select Write to add the view. Delete a view 1. Highlight the view to delete. 2. Select Delete. 3. Confirm deletion of the view. Rename view 1. Highlight the view to rename. 2. Select Rename. 3. Rename the view as required. 4.
-
Page 50: Pair Page
Pair page Switchboard control Home / Configure / Pair 12:00 Pair Label Host name Hops DG 4 deif-ml300-017928 DG 3 deif-ml300-017900 EDG 2 deif-ml300-015100 EDG 1 deif-ml300-016700 Refresh Item Notes Shows the list of available controllers you can connect. List of available controllers Select OK to pair to the controller. -
Page 51: Priority Page
Priority page View the priorities for all the gensets in the system, not just the GENSET controllers. The genset priorities apply to the whole system, not just a section. The EMERGENCY genset controller is not included in the priority list: •... -
Page 52: Counters Page
Counters page Switchboard control Home / Configure / Counters 12:00 Counters Name Value Engine Start attempts Total Since reset Faults Operation time Generator Breakers Reset Item Notes Counters list Shows the list groups and counters. Shows the highlighted counter to view, edit, or reset. Highlighted counter Select OK to edit the counter value. -
Page 53: Parameters
Parameters 6.7.1 Parameters list page Parameter settings are organised in groups and sub-groups. Open a group or sub-group to select a parameter to configure. Switchboard control Home / Configure / Parameters 12:00 Parameter list Engine Generator Busbar Regulators Breakers Local power management Power management rules System power management Communication... -
Page 54: Parameters Page
6.7.2 Parameters page Switchboard control Home / Configure / Parameters 12:00 Engine / Start sequence Crank Action Block Stop coil Inhibit 0 Inhibit(s) Configuration 2 Configuration(s) Start attempts Start failure Engine started (external) Start enable removed during start Alarm status Item Notes Parameter group... -
Page 55: Configure A Curve
6.7.3 Configure a curve Curves can only be configured if the curve function is assigned in the input/output configuration. When a curve function is assigned, the parameter is shown in the parameter list. Example Function assigned to an analogue input (AI): Engine >... -
Page 56: Input/Output
Input/output 6.8.1 About input/output The controller inputs and outputs are configurable but depend on the single-line diagram, parameters, functions and alarms. You can configure digital or analogue inputs and outputs, custom alarms, and use functions. More information See the Data sheet, or Hardware characteristics and configuration in the Designer's handbook for more information about the hardware modules and terminals. - Page 57 For each analogue input use, the table below shows which pages in the analogue input view you must configure. Table 6.1 Configuration for the uses of an analogue input Functions Sensor setup Alarms Analogue functions Required Required Optional Digital functions Required Required Optional...
-
Page 58: Rack Or Ecu Selection Page
6.8.2 Rack or ECU selection page The selection is only shown if the system has extension racks or an ECU configured. Switchboard control Home / Configure / IO configuration 12:00 Modules Controller rack 1 / 2 PSM3.1 PSM3.1 ACM3.1 IOM3.1 EIM3.1 GAM3.1 IOM3.1... -
Page 59: Module Selection Page
6.8.3 Module selection page Switchboard control Home / Configure / IO configuration 12:00 IOM3.1, Slot 3 Controller rack Relay output PSM3.1 ACM3.1 IOM3.1 EIM3.1 GAM3.1 IOM3.1 PCM3.1 Digital input CAN-A CAN-B CAN-A CAN-B Item Notes Rack Shows the selected rack. Shows the selected module. -
Page 60: Terminal Selection Page
6.8.4 Terminal selection page Switchboard control Home / Configure / IO configuration / Terminals 12:00 Terminals State/Value Terminal(s) Name Type Func Alarm 1, 2, 3 GB close 4, 5, 6 GB open 7, 8, 9 Digital output 3 10, 11, 12 Digital output 4 13, 23 GB opened... -
Page 61: Digital Input (Di) Page
6.8.5 Digital input (DI) page Switchboard control Home / Configure / IO configuration / Terminals / Status 12:00 Slot#3 Terminal#13, 23 Name Function/Alarm GB open Function Activate ramp 1 Function Reset GOV to offset Function Digital custom alarm Alarm I/O name Functions Alarm Item... -
Page 62: Digital Output (Do) Page
6.8.6 Digital output (DO) page Switchboard control Home / Configure / IO configuration / Terminals / Status 12:00 Slot#3 Terminal#4, 5, 6 Name Function/Alarm In AUTO mode Function Relay I/O name Functions Alarm Item Notes Module and terminal selected Shows the slot number and terminal numbers. Function or alarm list * Shows a list of configured function or alarms on this terminal. -
Page 63: Analogue Input (Ai) Page
6.8.7 Analogue input (AI) page Switchboard control Home / Configure / IO configuration / Terminals / Status 12:00 Slot#3 Terminal#18, 19 Name Function/Alarm Derate 1 temperature [°C] Function Sensor I/O name Functions Alarm Item Notes Module and terminal selected Shows the slot number and terminal numbers. Functions or alarms list Shows a list of all configured functions or alarms on this terminal. -
Page 64: Analogue Output (Ao Or Pwm) Page
6.8.8 Analogue output (AO or PWM) page Switchboard control Home / Configure / IO configuration / Terminals / Status 12:00 Slot#3 Terminal#14, 15 Name Function/Alarm Generator | L1-N [V AC] Function Output setup I/O name Functions Item Notes Module and terminal selected Shows the slot number and terminal numbers. -
Page 65: Alarms
7. Alarms Alarms page Switchboard control Home / Alarms 12:00 Alarms Time Name Value Set point Latch Auto 11:25:18 Voltage or frequency not OK 06:26:56 Generator under-voltage 1 0.00 % 95.00 % 06:25:01 EIM3.1 1 supply voltage low ... 18.00 V ... 06:24:42 Generator under-frequency 1 0.00 %... -
Page 66: Alarm State
7.1.1 Alarm state Alarm Alarm Symbol Acknowledge Notes condition* action** • An alarm condition occurred. • An alarm action is active. Active Active Unacknowledged • An alarm requires acknowledgement. • An alarm requires action to clear the alarm condition. • An alarm condition occurred. -
Page 67: Remove From Service
• The alarm is marked as shelved ( ) in the alarm list. • The alarm action (protection) is inactive until the alarm is unshelved. Unshelve an alarm 1. Select the shelved alarm. 2. On the details page, select Service. 3. -
Page 68: Tools 8.1 Tools Page
8. Tools Tools page Switchboard control Home / Tools 12:00 Restore Backup Regulator status Units Communication Advanced Item Notes Restore page Restore : Restores a backup to the controller. Backup page Backup : Creates a backup of the controller. Advanced menu Advanced : Select to go to the Advanced menu. -
Page 69: Backup Page
Backup page Switchboard control Home / Tools / Backup 12:00 Backup Backup name ID 4 DG 1 Backup location Save to controller Clear Create backup Item Notes Shows the slot number and terminal numbers. Backup name Highlight and select OK to configure the name. Shows the location where the backup is created. -
Page 70: Restore
Restore 8.3.1 Restore restrictions Controller prerequisites Before you restore a backup to a controller, the controller must meet these prerequisites: Controller type Prerequisites GENSET controller 1. The breaker must be opened. 2. The engine must be stopped. EMERGENCY genset controller 3. -
Page 71: Restore Page
8.3.2 Restore page Switchboard control Home / Tools / Restore 12:00 Restore Name Creation date Location ID 4 SG 1.backup 2018-09-11 03:25:42 SD card ID 9 DG 1.backup 2020-07-15 22:53:36 Controller Delete Info Item Notes List of backups Shows the backups on the controller or SD card. Not compatible backup * Shows a not compatible backup in dark grey. -
Page 72: Restore Selection Page
8.3.3 Restore selection page Switchboard control Home / Tools / Restore 12:00 Restore selections Restore IP address (IPv4) and controller ID Restore counters Restore Item Notes List of features Shows a list of features you can restored. Select OK to choose the restore selections. Feature selection Not selected : The feature is not restored. - Page 73 Item Notes AVR regulation Shows the status of the AVR regulation. GOV status Select to go to the GOV status page. OPERATOR'S MANUAL 4189340910O UK Page 73 of 94...
-
Page 74: Regulator Status Gov Page
8.4.2 Regulator status GOV page Switchboard control Home / Tools / Regulator status 12:00 GOV status GOV selected regulation mode Frequency regulation GOV active regulation mode Frequency regulation GOV regulator source Nominal GOV regulator manual input Not active GOV regulator external offset GOV set point 50.00 Hz GOV actual value... -
Page 75: Units Page
Units page Switchboard control Home / Tools / Units 12:00 Unit category Name Unit Temperature °C Pressure Item Notes Units list Shows the units you can configure. Selected unit Select OK to configure the unit setting. Unit setting Shows the current unit of measure. OPERATOR'S MANUAL 4189340910O UK Page 75 of 94... -
Page 76: Communication
Communication 8.6.1 Controller communication page Switchboard control Home / Tools / Communication 12:00 Controller communication Name Value Controller ID fe80::226:77ff:fe01:7928 IPv6 address DG 1 Label 10.10.103.2 DNS preferred 10.10.103.3 DNS alternate Static IP address mode 10.10.103.100 IPv4 address 255.255.255.0 Subnet mask Default gateway 10.10.103.1 Identify... -
Page 77: Display Communication Page
8.6.2 Display communication page Switchboard control Home / Tools / Communication 12:00 Display unit communication Name Value fe80::226:77ff:fe02:6878 IPv6 address 10.10.103.2 DNS preferred 10.10.103.3 DNS alternate 10.10.103.2 IP address mode 10.10.103.105 IP address 255.255.255.0 Subnet mask Default gateway 10.10.103.1 Controller Write Item Notes... -
Page 78: Tools - Advanced
9. Tools - Advanced Tools advanced page Switchboard control Home / Tools / Advanced 12:00 Lamp test Change type Brightness Permissions Item Notes Lamp test page Lamp test : Select to run a lamp test of the display LEDs. Change type page Change type : Select to go to the change controller type menu. -
Page 79: Controller Type Page
Controller type changes are restricted, depending on the initial controller type. An EMERGENCY genset and GENSET controller, can be changed in the field to any PPM 300 controller type. But a SHAFT generator, SHORE connection and BUS TIE breaker controller can only be changed to one of these three controller types. -
Page 80: Brightness Page
Brightness page Switchboard control Home / Tools / Advanced / Brightness 12:00 Restore Brightness level Brightness time Item Notes Brightness level page Brightness level : Select to make changes to the brightness level settings. Brightness time page Brightness time : Select to make changes to the brightness time settings. OPERATOR'S MANUAL 4189340910O UK Page 80 of 94... -
Page 81: Brightness Level Page
9.3.1 Brightness level page Switchboard control Home / Tools / Advanced / Brightness / Level 12:00 Brightness level 25 % 50 % (default) 75 % Write Item Notes Brightness level list Shows a list of the brightness levels in % the display is adjusted to. Select OK to choose the brightness level: Selected level... -
Page 82: Brightness Time Page
9.3.2 Brightness time page Switchboard control Home / Tools / Advanced / Brightness / Timeout 12:00 Brightness time 3 min (default) 5 min 10 min 15 min 30 min 60 min 180 min Write Item Notes Brightness time list Shows a list of times in minutes before the display automatically adjusts the brightness level. Select OK to choose the brightness time: Selected time... -
Page 83: Permissions Page
Permissions page Switchboard control Home / Tools / Advanced / Permissions 12:00 Restore Groups Users Item Notes Groups page Groups: Select to make changes to the groups page. Users page Users: Select to make changes to the users page. OPERATOR'S MANUAL 4189340910O UK Page 83 of 94... -
Page 84: Groups Page
9.4.1 Groups page Switchboard control Home / Tools / Advanced / Permissions / Groups 12:00 Groups Name Users Last log on Created Display 2014-07-17 Operators 2020-09-03 02:17:50 2014-07-17 Service engineers 2018-12-23 04:46:35 2014-07-17 Designers 2014-07-17 Administrators 2020-09-02 13:36:55 2014-07-17 Item Notes Shows the permission groups. -
Page 85: Users Page
9.4.2 Users page Switchboard control Home / Tools / Advanced / Permissions / Users 12:00 Users Name Group Last log on Created Admin Administrators 2020-09-01 12:22:11 2014-07-17 Operator Operators 2020-09-03 02:17:50 2014-07-17 Service Service engineers 2018-12-23 04:46:35 2014-07-17 Designer Designers 2014-07-17 Item Notes... -
Page 86: Log
12:00 Time Event name 11:25:18 2020-09-02 EIM3.1 1 supply voltage low or missing 02:23:12 2020-09-01 DEIF network redundancy broken 01:56:01 2020-09-01 EIM3.1 1 supply voltage low or missing 17:24:42 2020-08-31 Value changed event 14:17:32 2020-08-31 Busbar voltage and frequency OK... -
Page 87: Dm2 Log Page
10.2 DM2 Log page Item Notes List of DM2 log events Shows all DM2 events from the ECU. Clear Clears the log list. Refresh Reloads the log list. OPERATOR'S MANUAL 4189340910O UK Page 87 of 94... -
Page 88: Info 11.1 Info Page
11. Info 11.1 Info page Switchboard control Home / Info 12:00 Versions About Item Notes Versions : Shows version information for controller and display, including firmware versions. Versions page This information can be helpful for technical support. About page About : Shows information about the controller, including IP address information. OPERATOR'S MANUAL 4189340910O UK Page 88 of 94... -
Page 89: Live Data
12. Live data 12.1 Live data page Switchboard control 1 /13 Home / Live data 12:00 Generator | Total Generator | L1 24.9 Frequency Generator | L1 36.4 Generator | L1-L2 399.4 49.94 V AC Generator | L1 49.94 Home Item Notes Live data information page... -
Page 90: Visual Synchronisation Page
12.2 Visual synchronisation page Switchboard control 9 /13 Home / Live data 12:00 Generator | L1-L2 Busbar | L1-L2 V AC V AC Generator | L2-L3 Busbar | L2-L3 V AC V AC -149° Generator | L3-L1 Busbar | L3-L1 V AC V AC Generator | L1... -
Page 91: Troubleshooting
13. Troubleshooting 13.1 Troubleshooting the system under switchboard control The exact procedure for operating the system under switchboard control depends on the switchboard design. Follow the guidelines from the switchboard supplier. Class societies require a certain amount of protections included in the switchboard. For example, there must be a synchronisation check before closing a breaker. -
Page 92: Troubleshooting Analogue Input Sensor Failures
1. Install a redundant DEIF network connection (see Wiring the communication in the Installation instructions). The system never had a redundant DEIF network 2. Disable the DEIF network redundancy alarm. connection. Set the alarm to Not enabled in the parameter Configure >... -
Page 93: Replace Internal Battery
14. Replace internal battery 14.1 Replace battery in PCM3.1 The controller has a replaceable battery in the PCM3.1 module. A battery failure alarm is activated, when the battery power is low. To replace the battery, you need to remove the PCM module. The battery in PCM3.1 is a CR2430 3V battery, rated for operation at -40 to 85 °C (-40 to 185 °F). -
Page 94: End-Of-Life
In Europe, the disposal of WEEE is governed by the WEEE directive issued by the European Parliament. DEIF complies with this directive. You must not dispose of WEEE as unsorted municipal waste. Instead, WEEE must be collected separately, to minimise the load on the environment, and to improve the opportunities to recycle, reuse and/or recover the WEEE.
