Berkel X13E Specifications

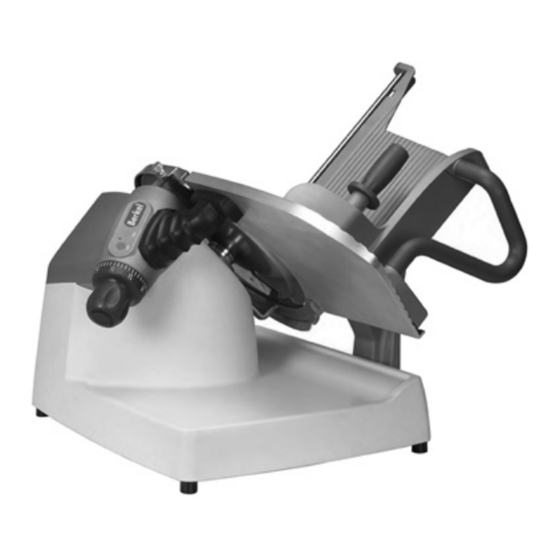

Model X13E
Features
Berkel model X13E manual gravity feed slicer offers a
number of special features. A sanitary one piece
engineered polymer base and product table reduces
seams and joints while providing an FDA approved
surface for easy, effective cleaning. A removable and
submersible table mounted sharpener with borazon
stones for accurate sharpening. Precise thickness
control is achieved using a variable pitch barrel cam for
fine adjustment and wafer thin slices. The index knob
and operating controls are mounted outside of the drip
zone for quick and easy access. A permanent ring guard
protects the entire non-slicing portion of the knife
during slicing and cleaning. A simple kick stand
supports the slicer for easy access to clean under the
slicer. A fence is provided for extra holding of small
products.
Accessories
!
Vegetable chute with pusher
!
Skewers with coring tool
!
Slaw tray
Approved By:
Date
Berkel Company ï 4406 Technology Drive ï South Bend, IN 46628-9700
574-232-8222 ï 800-348-025 ï
Form # SPC34-1106N
Item #___________________________________________
Model X13E
Manual Gravity Feed Slicer
Standard features
! 1-speed, 1/2 HP, permanently lubricated ball bearing
knife motor with thermal protection
! Furnished in 115/60/1, 7 am ps, AC, with 3 wire cord
and plug (see below for optional voltages)
! LED indicates power to the slicer
! One-piece FDA polymer base and product table for
reduced seams, accessibility and easy cleaning
!
Index knob conveniently located outside the drip zone
in the upper left to provide quick and easy access
!
Variable pitch barrel cam for ultra fine, precise slice
adjustment to a thickness of 1-5/1 6" (34mm)
!
13" (330mm) diameter, hollow ground, hardened
and polished forged stainless steel knife
! Large product table with extra capacity:
"
Rectangles up to 10-
"
Squares up to 7-
"
Rounds up to 8-
! Articulating and full length rear mounted meat pusher
with fence to secure and advance products evenly
! Ergonomic, multi-grip handle to advance product table
! Submersible, removable product table mounted
sharpener for consistent sharpening and easy cleaning
!
Borazon sharpening stones for fast, accurate
sharpening and extended life
! No-volt release requires restarting the slicer after a
power interruption
! Permanent ring guard protects entire non-slicing
portion of the knife
! Sealed start/stop switches conveniently located on the
index knob housing out of the food zone
!
Simple kick stand for easy cleaning under the slicer
Power Options
! 1/2 HP, 220/50/1 , 3.5 amps, AC, ETL Listed
! 1/2 HP, 220/60/1 , 3.5 amps, AC, ETL Listed
1 FAX 888-888-2838 ï www.berkel.com
Ω æ
îx 6- î(265 mm x 170 mm)
Ω
î(190 mm)
Ω
î (220 mm) diameter
