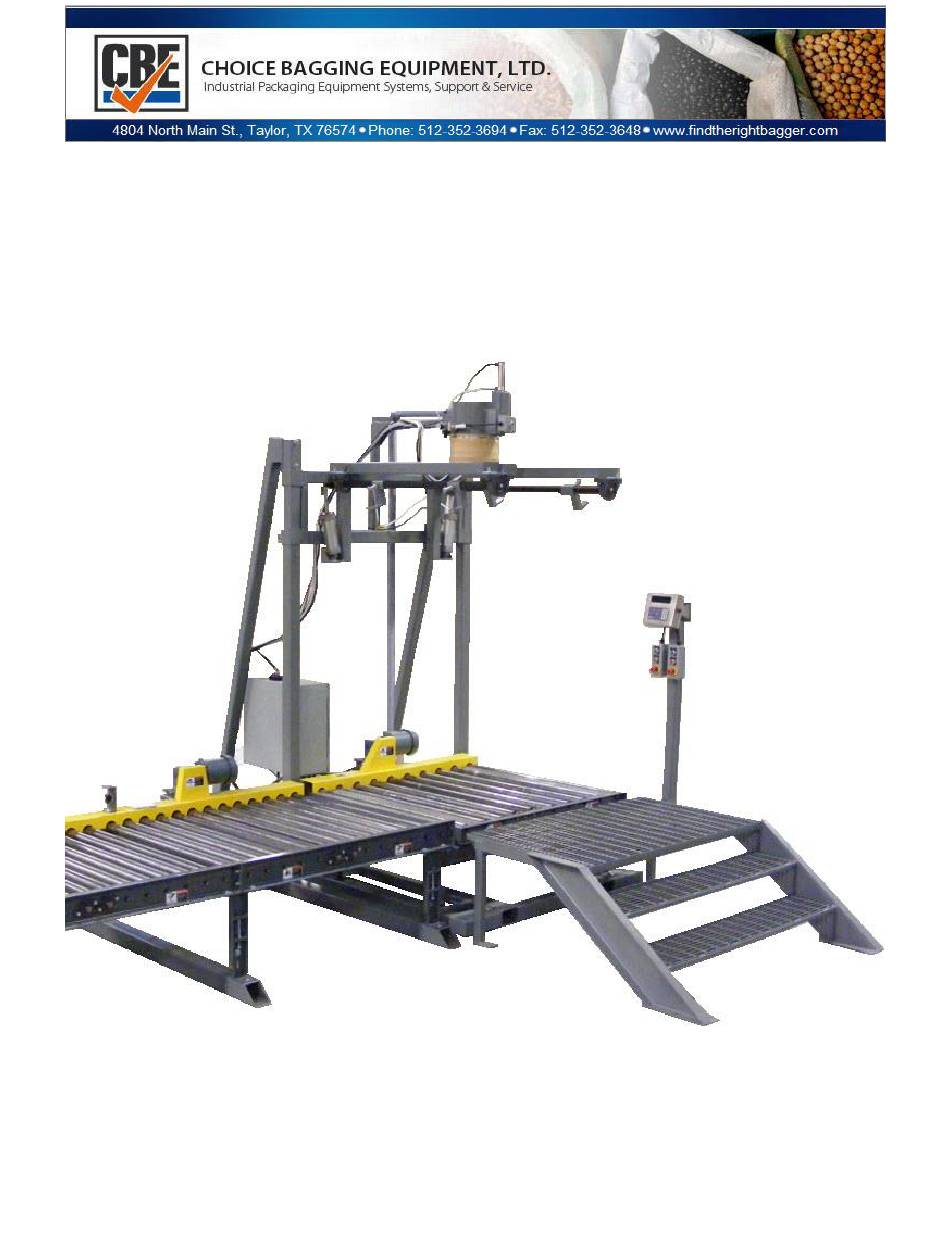

CBE 520 BULK BAGGER
Safety-Installation-Operation-Maintenance
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CBE 520

Summary of Contents for CBE 520

  • Page 1 CBE 520 BULK BAGGER Safety-Installation-Operation-Maintenance...

  • Page 2: Table Of Contents

     Load Cell Wiring to Junction Box  Calibration Instructions  Load Cell Replacement Chapter 4 – Component Description  CBE 520 Bulk Bag Filler Assemblies  Densifying Deck Chapter 5 – Operational Sequence  Operational Sequence  Auto Strap Release (Optional) ...
  • Page 3  Avery 405 - Adjusting Pre-Act Chapter 9 – Maintenance Chapter 10 - Troubleshooting  Controller Does Not Return to “0.00”  Erratic Weights  Digital Readout Does Not Match the Floor Scale  Controller Does Not Light Up  Dirty Filling ...

  • Page 4: Quick Reference Installation Information

    QUICK REFERENCE INSTALLATION INFORMATION Pneumatic Requirements: (One Hookup) Run 1/2" line to main Filter / Regulator with an output of 4 CFM operating at 80 PSI. Electrical Requirements: (One Hookup) A 25 amp dedicated circuit should be supplied to the main control panel.

  • Page 5: Warnings And Notices

    WARNINGS AND NOTICES WARNING The purpose of this section is to alert operating and maintenance personnel to the possible dangers of this type of equipment. Serious injury and/or equipment damage could result from not heeding these safety precautions. BEFORE OPERATING EQUIPMENT: Any personnel working directly with or on this equipment should read this manual before proceeding with equipment use.

  • Page 6: Grounding Recommendations And Noise

    If additional wire runs are added to any junction box or control panel, wiring practice should be such as to maintain prevailing electrical hazard classification. High-pressure air systems are dangerous. Do not service or troubleshoot systems with air supply on. Be sure to bleed off any trapped air before working on components since it is possible to have high pressures trapped in airlines and cylinders, etc.
  • Page 7 (such as copper lugs). Minimum wire sizes, color coding, and general safety practices should comply with American National Standards and the National Electrical Code. Other earth ground sources are not as desirable as a copper ground stake. Green wire earth grounds (safety grounds) brought into the control system from plants distribution networks tend to be very noisy.
  • Page 8 EFFECTS OF ELECTRICAL NOISE The predominant effect of noise on the system is to cause “soft” failures; that is, failures which do not damage the system but do cause it to function improperly. Three main types of soft failures are encountered: 1.

  • Page 9: Recommended Spare Parts

    Recommended Spare Parts List for Model 510 /520 BBL Description Part Number Load Cell 501-005 Summing Box 104-009B Bag seal cuff 301704-12-1/8 Pilot valve 145301 Quick Dump Exhaust 703-014 Valve Solenoid Valve 105-020 Solenoid valve 105-020A adapter Kit Mother Board,...

  • Page 10: Chapter 1 - General Information

    CHAPTER 1 General Information...

  • Page 11: Receipt And Inspection

    RECEIPT AND INSPECTION After uncrating the bulk bagger, a check should be made to see that all items ordered have been received and that all equipment is in good condition. Any damage incurred in shipment should be reported immediately to the delivering carrier and a claim for the damage should be filed.

  • Page 12: Specific Requirements

    9. Keep fingers, hands, feet, clothing, etc., out of the path of pneumatically operated components. 10 Safety glasses should be worn in equipment area. 11. Follow the safety regulations for your plant. ALWAYS USE GOOD JUDGEMENT. SPECIFIC REQUIREMENTS 1. Voltage The system is designed for one location hookup.

  • Page 13: Dust Collection

    DUST COLLECTION A 4” dust hookup is located on the upper filler pipe. This pipe should be connected to dust collection piping with a damper so the amount of volume of air can be adjusted to the fill head. If you have too much draw, material will be drawn up from the stream along with the dust during the filling cycle.

  • Page 14: Chapter 2 - Installation Guide

    CHAPTER 2 INSTALLATION GUIDE...

  • Page 15: Introduction

    The interface cable between the 520 series and the indicator must be secured to the floor or wall and protected against crushing, cutting or water damage. If the site has such potential dangers, a method of protection such as running the cable in conduit is recommended.

  • Page 16: Load Cell Feet Checks

    CONNECTING TO SUPPLY BIN The Model 520 Bulk Bag Filler can be fed via slide-gate valve, butterfly valve, auger, rotary vane feeder or air lock feeder. In a typical installation, one of these feed devices will be fastened directly to the customers supply bin. An 8" flex connector hose is installed to the outlet side of the chosen feed device down to the bulk bag filler head.

  • Page 17: Setting Conveyors

    SETTING CONVEYORS Once the BB is in place and anchored, use a chalk line to layout any conveyors to the system. Refer back to layout drawing to set remaining conveyors. If the BBL is equipped with a powered conveyor, this will come secured to the BBL structure. Layout a line parallel line to the powered discharge conveyor, maintaining a 1/2"...

  • Page 18: Chapter 3 - Load Cell Wiring

    CHAPTER 3 LOAD CELL WIRING...

  • Page 19: Load Cell Wiring To Junction Box

    LOAD CELL WIRING TO JUNCTION BOX The four (4) load cells are each wired to their respective terminals in the junction box according to the corner numbering system shown in Figure 1 below. See Figure 2 (below) for junction box layout and wiring connections.

  • Page 20: Calibration Instructions

    LOAD CELL REPLACEMENT Should a load cell become damaged due to an overload condition, replacement load cells can be ordered from CBE. The part number for the load cell can be found on the Recommended Spare Parts List in this manual.
  • Page 21 WARNING: DO NOT CUT THE LOAD CELL CABLE! 3. Pull the load cell cable out of the conduits built into the frame channels. The chase wire will be used to pull the new load cell cable through the formed channel. 4.
  • Page 22 Figure 3: 500 Series Bottom View...

  • Page 23: Chapter 4 - Component Description

    CHAPTER 4 COMPONENT DESCRIPTION...

  • Page 24: Cbe 520 Bulk Bag Filler Assemblies

    The CBE 520 Bulk Bag Filler is comprised of the following assemblies: 1. Digital Filler The digital filler controller controls all aspects of the bag filling cycle. It is directly Controller (104-1050) responsible for controlling the solenoid valves and cylinder operated functions of the machine.
  • Page 25 CBE 500 Filler. 514-100 15.Fill head Mast Adder for Fill Head Mast Extensions and Bracing that Allow the CBE 510 to Extensions Fill Bulk Bags Up to 80" (200 cm) Overall Height (the Standard Unit is Designed to Handle Bags of 66" (167 cm) Overall Height 516-100 16.

  • Page 26: Densifying Deck

    CBE DENSIFYING DECK...

  • Page 27: Chapter 5 - Operational Sequence

    CHAPTER 5 OPERATIONAL SEQUENCE...

  • Page 28: Operational Sequence

    OPERATIONAL SEQUENCE  Place an empty pallet onto the deck / conveyor of the Model 520 BB. If your system is equipped with an automated pallet dispensing press pallet indexing PB to bring a empty pallet into position. It will stop automatically.

  • Page 29: Auto Strap Release (Optional)

    configurations of how the densifier system can be set up. They can be run intermittently, continuously or after weight complete.  Once the target weight is achieved, a signal is sent to close / stop the overhead feed device.  The controller will take a final reading, adjust for weight variations.

  • Page 30: Bag Seal Cuff (Optional)

    BAG SEAL CUFF (OPTIONAL) The bag seal cuff is a feature that prevents dust from coming out of the bulk bag during the filling process. A. Bag Cuff Inflate Switch The operator presses the blue PB to inflate and bag seal cuff. Check the pressure on the regulator, to make sure the pressure is between 3-5 PSI to start.

  • Page 31: Pre-Bag Inflate (Optional)

    CAUTION: should be exercised when inflating the cuff. Over-inflation could cause the seal to burst causing injury to the operator, and or the fill sleeve of the bulk bag. NOTICE: Eye and ear protection may be required when operating this equipment.

  • Page 32: Powered Roller Discharge (Optional)

    Operational Sequence with Powered Roller Discharge: (OPTIONAL) This feature is designed to allow the operator to remove the filled bag at the end of the filling cycle. This can be accomplished automatically thru the program or manually with a Bag Discharge PB switch that is mounted on controller / operator control panel.

  • Page 33: Chapter 6 - Conveyor Setup

    CHAPTER 6 Conveyors Setup...
  • Page 34 Conveyor Setup and Adjustment: For initial conveyor setup refer back to the layout drawing for approximate dimensions. Once the BBL is in the final Position then take a chalk line and make a line parallel with the BB filler structure and align the conveyors off that line.
  • Page 35  Regular Oil Change: After initial change, in normal conditions, the oil should be changed every 2500 hours of operation or every 6 months.  To Refill: Determine position of reducer from the chart below and refill with amount of oil shown in capacity chart.
  • Page 36 To install the vent plug, follow these steps.  Determine the position of reducer after equipment has been installed.  Remove solid pipe plugs and install vent plug and grease fittings in position indicated by drawings.  On the 5A model only, remove small pipe plugs and add two grease fittings in position "A"...
  • Page 37  Align motor mounting holes to C-Face adapter and install mounting bolts.  "C" Face adapters use a plastic coupling to connect the motor to the reducer input shaft. The gears nest inside the plastic coupling.  It is important for these gears to be properly spaced on the shafts. Incorrect gear setting can result in excessive coupling noise and bearing failure.

  • Page 38: Chapter 7 - Plc Timers And Adjustments

    CHAPTER 7 PLC and Timers and Adjustments...
  • Page 39 PLC (This device is not a weight controller) PLC means Programmable Logical Controller. Our PLC is programmed with specific programs which controls inputs and outputs to work with our equipment. Our programs are set up for Valve filling, O/M net weigh and Bulk Bag weighing equipment. In the PLC program, there are timers going to specific functions on the various types of equipment which we factory.

  • Page 40: Cbe Data Touch

    6. Input / Output Screen illuminations How to Adjust the Timers in the PLC: The PLC is used with both the Avery 405 and the CBE Data Touch controllers. Use the A or B button to Scroll forward or backward through the Timers.
  • Page 41 NOTE: IF THE DRBBLE FILL TIME IS TOO SHORT, YOU WILL EXPERIENCE ERRATIC WEIGHTS BECAUSE THE SETTLER /SCALE WILL NOT HAVE ENOUGH TIME TO STABILIZE. Vibrating Deck Timer This is the length of time the vibratory table vibrates the BB. Bag Latch Open Timer When this timer is activated the bag latches open for the time the timer is set for and close again.
  • Page 42 Bag Latch Open Timer When this timer is activated the bag latches open for the time the timer is set for and close again. Input / Output Screen The PLC screen displays which inputs and outputs are signaling on and off at any point during the bag filling process.

  • Page 43: Chapter 8 - Weigh Controller And Adjustments

    CHAPTER 8 WEIGH CONTROLLER ADJUSTMENTS...

  • Page 44: Controllers

    The 2 different brands that we use are: CBE Data Touch and the Avery 405. In this section we will go over how to calibrate, and set the target weight for each controller. When you go to perform these functions be sure to use the correct section, matching the controller on your machine.

  • Page 46: Avery 405 - Adjusting Pre-Act

    0<ENTER>. NOTE: This WILL turn off ANY motion delays in the program. At the end of some of the CBE programs, there are motion delays to get the most accurate reading. Turning off the window MAY affect final readings.
  • Page 47 ◙ If correctly connected, try a Calibration Reset. Press <CAL> and when "FirstZero?" is displayed press <SELECT> until Cal Reset is displayed. Press <ENTER> to reset and recalibrate the indicator. ◙ If Calibration Reset does NOT work, hook a load cell simulator up to the indicator to test and make sure indicator is working correctly.
  • Page 48 See attached Documentation For the Controller specifically Used on your machine...

  • Page 49: Chapter 9 - Maintenance

    Chapter 9 MAINTENANCE...
  • Page 50 MAINTENANCE OF THE BAG SEAL CUFF AND GAUGE: Periodic inspection of the bag seal cuff for cracks or tears is necessary. Replacement of the cuff is recommended if any wear, tears or thinning is noticed. The pressure gauge should for the bag seal cuff should be kept in good working order. If the gauge does not read pressure, remove and replace it as soon as possible to prevent cuff damage.

  • Page 51: Chapter 10 - Troubleshooting

    CHAPTER 10 TROUBLESHOOTING...

  • Page 52: Controller Does Not Return To "0.00

    Controller Does Not Return to “0.00” This is typical a mechanical problem with the scale. Check the following areas which can influence the scale. o Check load cell feet to make sure that all 4 feet are firmly touching the floor. o Check for bad Load cell –...

  • Page 53: Digital Readout Does Not Match The Floor Scale

    Digital Readout Does Not Match the Floor Scale Depending on which controller the equipment is equipped with, the Thompson Controller we use, has a feature called offset compensation which allows you to adjust the packer scale to the floor scale. The Avery and the Rice Lake do not. On those controllers all you can do is adjust the dribble –for how fast you are filling, target weight or Preact.

  • Page 54: Troubleshooting A Bad Load Cell

    Troubleshoot a Bad Load Cell Use the following values to trouble shoot a bad load cell. Note: Red to Black is the input resistance. Very important Note: Green to White is output resistance. Very Important. LOAD CELL CONNECTION GUIDE SHIELD CLEAR EXCITION + BLACK EXCITION + RED...
  • Page 56 CHAPTER 11 STANDARD ILUSTRATED PARTS See attached documentation for Other parts Specific to Your Bagger...

  • Page 57: Plc Timers & Adjustments

    CHAPTER 12 PLC and TIMER ADJUSTMENTS...
  • Page 58 PLC means Programmable Logical Controller. Our PLC is programmed with specific programs to work with our equipment. Our programs are set up for Valve filling, O/M net weigh and gross weighing equipment. In the PLC, there are timers going to specific functions on the various types of equipment which we factory set but need to be fined tuned in the field.
  • Page 59 Name of the levels and timers 1-Choice Bagging Equipment (CBE ) 2-Bag Pre-Inflate 3-Vibrator / Densifier On-Delay 4. Slide gate / Feed gate filler head 5-Input / Output Screen illuminations Adjusting the Timer: Use the A or B button to Scroll forward or backward through the Timers.
  • Page 60 Timer Function Explanations: Pre-Bag Inflate This timer is used to control the duration that the bag inflation blower runs to inflate the bag at the beginning of each bag fill. It is adjusted in 0.1 second increments. Factory setting is 20 seconds.
  • Page 61 DRAWINGS SCHEMATICS See attached Schematics And Drawings specific for your machine...
