ETNA CALLISTO Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

C O F F E E T E C H N O L O G I E S

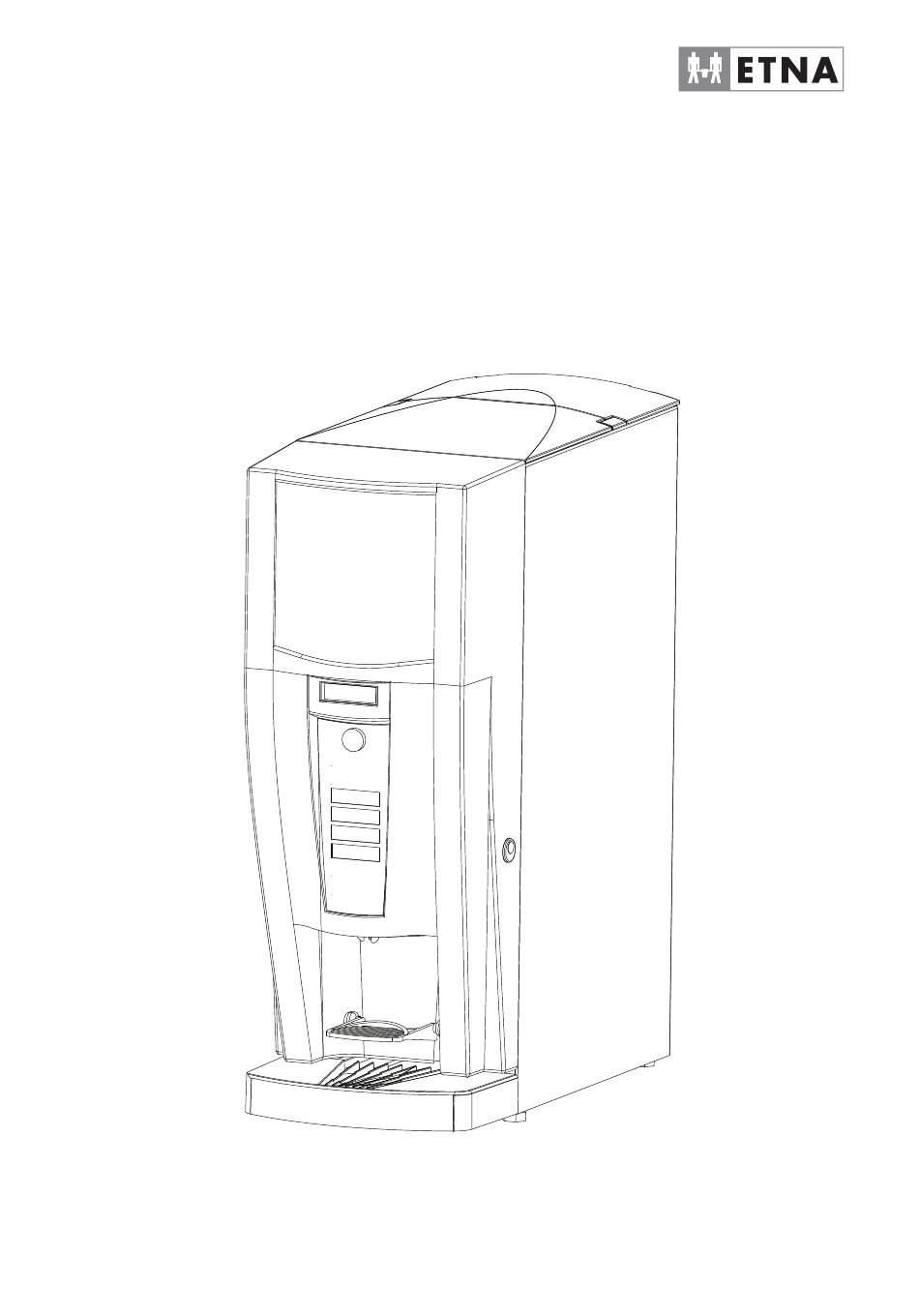

Instruction for use CALLISTO
© ETNA Coffee Technologies b.v.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CALLISTO and is the answer not in the manual?

Questions and answers

Related Manuals for ETNA CALLISTO

Summary of Contents for ETNA CALLISTO

  • Page 1 C O F F E E T E C H N O L O G I E S Instruction for use CALLISTO © ETNA Coffee Technologies b.v.
  • Page 2 Instruction for use CALLISTO Manufacturer: ETNA Coffee Technologies b.v. P.O. Box 146 7000 AC Doetinchem The Netherlands Distributor: © ETNA Coffee Technologies b.v. Articlecode: 000866163001 Status: Publish Revision:...

  • Page 3: Table Of Contents

    2 PARTS LISTING FOR THE CALLISTO........

  • Page 4: Dimensions

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S DIMENSIONS 17,5 376,5 541,5 Figure 1-1 DimensionsCALLISTO © ETNA Coffee Technologies b.v.

  • Page 5: Parts Listing For The Callisto

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S PARTS LISTING FOR THE CALLISTO 12 11 Figure 2-1 Callisto 1 parts listing 1. Bag-In-Box 2. Cover 3. BIB outlet / QCD connector 4.
  • Page 6 Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S 11 10 Figure 2-2 Callisto choc parts listing 1. Bag-In-Box 2. Cover 3. BIB outlet / QCD connector 4.

  • Page 7: Introduction

    CALLISTO. Figure 3-1 shows the selection panel of the CALLISTO. The Callisto 1 can, depending on the settings, dispense the following beverages: a cup of coffee, a mug of coffee, a jug of coffee. The Callisto choc can, depending on its settings, dispense the following beverages: a cup of chocolate, a mug of chocolate, a jug of chocolate, hot water.

  • Page 8: Safety Instructions

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S SAFETY INSTRUCTIONS The CALLISTO meets all the requirements associated with the CE mark. The following symbols are used in these instructions:...

  • Page 9: Preparing The Machine For Use

    C O F F E E T E C H N O L O G I E S PREPARING THE MACHINE FOR USE A few operations must be carried out before the CALLISTO is ready for use. Although these installation operations should be carried out by qualified personnel, they are listed step by step below.

  • Page 10: Connecting Water And Electricity

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S Connecting water and electricity 1. Connect a water hose with the correct thread (3/4 inch BSP) between the connection point on the rear of the machine and the valve.

  • Page 11: Loading A New Bag-In-Box With Hose Connector

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S Figure 5-2 Ingredient bag holder 5.4.1 Loading a new Bag-in-Box with hose connector ☞ If there is no Bag-in-Box (BIB) already in the machine, for example when starting up the machine for the first time, skip steps 2 to 6 of the following instructions.

  • Page 12: Loading A New Bag-In-Box With A Qcd Connector

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S 14.Press button 1 on the service panel on the inside of the door. The mixer will be rinsed with hot water.

  • Page 13: Placing A New Ingredient Bag In The Holder

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S 5.4.3 Placing a new ingredient bag in the holder ☞ If there is no ingredient bag already in the machine, for example when starting up the machine for the first time, skip steps 2 to 7 of the following instructions.

  • Page 14: Draining The Boiler

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S Draining the boiler New machines must be completely filled and emptied once before use. The machine will fill up with water again when it is switched on. The engineer carries out this procedure.

  • Page 15: Operation Of The Machine

    C O F F E E T E C H N O L O G I E S OPERATION OF THE MACHINE The CALLISTO is easy to use. The drink selection procedure is described in paragraph 6.1. Paragraph 6.2 describes how to get more than one cup.

  • Page 16: Maintenance

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S MAINTENANCE Product quality will not be guaranteed unless the machine is maintained thoroughly on a regular basis. The reason is that certain vital parts of the machine are very sensitive to contamination.

  • Page 17: Weekly Maintenance

    C O F F E E T E C H N O L O G I E S Weekly maintenance The parts used to prepare the drinks must be cleaned regularly. The CALLISTO must be cleaned thoroughly once a week. ☞ Use a damp cloth to clean the inside and outside of the machine.

  • Page 18: Cleaning The Peristaltic Pump

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S 7.2.2 Cleaning the peristaltic pump The peristaltic pump must be cleaned during weekly maintenance. 7.2.2.1 Cleaning the peristaltic pump for BIB with hose connector.

  • Page 19: Cleaning The Peristaltic Pump For Bib With Qcd Connector

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S Figure 7-2 Placing the pump cup on the peristaltic pump ☞ Make sure the pump cup is properly in place. Incorrect assembly may cause incorrect dosing of product.

  • Page 20: Cleaning The Peristaltic Pump With An Ingredient Bag

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S 15.Place a jug under the dispensing nozzle. 16.Press button 3 on the service panel on the inside of the door. Keep this button pressed until the hose of the peristaltic pump is completely filled.
  • Page 21 Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S Figure 7-4 Placing the pump cup on the peri- staltic pump 11.Push the spout into the hose of the peristaltic pump.

  • Page 22: Drinks Counter

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S DRINKS COUNTER The counter readings can be read on the service panel on the inside of the door.

  • Page 23: Fault Messages And Remedies For Minor Faults

    FAULT MESSAGES AND REMEDIES FOR MINOR FAULTS Despite great care taken during production, faults may occur in the CALLISTO. In that case the display will show error messages. The following table includes a number of possible faults and remedies. Fault message display/prob-...

  • Page 24: Technical Data

    Instruction for use CALLISTO C O F F E E T E C H N O L O G I E S TECHNICAL DATA Dimensions CALLISTO: Height: 640 mm Width: 240 mm Depth: 520 mm Weight, 21 kg empty: Max.
